Summary of Contents for Kapro PROLASER 896G

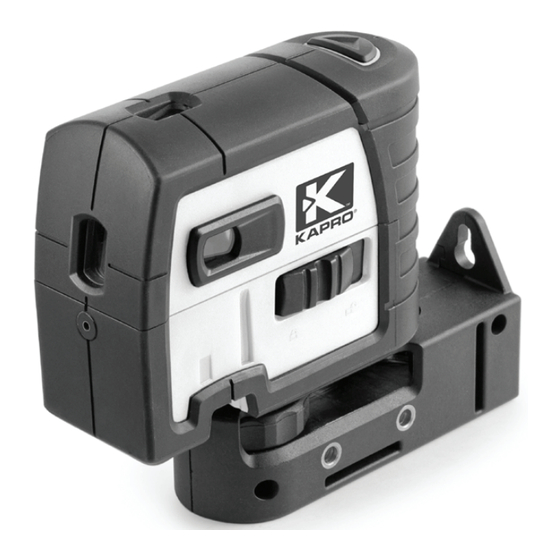

- Page 1 PROLASER 5-DOTS GREEN ® Self-leveling Laser Pointer Model No. 896G User Manual scan for other languages 165'/50m Up to 50m/165' INCLUDED...
- Page 2 Thank you for purchasing Kapro’s 896G 5-DOTS GREEN self levelling laser pointer. You now own one of the most advanced laser tools available. This manual will show you how to get the most out of your laser tool. APPLICATIONS The 896G 5-DOTS GREEN self levelling laser pointer may be used for: •...
-
Page 3: Table Of Contents
CONTENTS • Features • Safety instructions • Battery installation & Safety • Operating instructions • Overview • Maintenance • Field calibration test 11-12 • Specifications • Warranty... -
Page 4: Features
FEATURES • Five highly visible laser dots: Plumb up & down, 3 level dots at 90° angles • Small cross projected at each laser dot • Self leveling range ±3.5° • Tough rubber overlay • Quick & easy operation • Laser range: up to 65'/20m and 165'/50m with a detector •... -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS WARNING This product emits radiation that is classified As class II according to EN 60825 -1 The laser radiation can cause serious eye injury • Do not stare into the laser beam • Do not position the laser beam so that it unintentionally blinds you or others. -
Page 6: Battery Installation & Safety
BATTERY INSTALLATION & SAFETY 1. Open the battery cover by sliding cover according to the arrow. 2. Insert 2 new rechargeable AA batteries of the same brand, according to the polarity marked inside the battery compartment. 3. Slide the battery cover back in place. NOTE If the laser level will not is used for a long period of time, remove the batteries from... -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS To get the most out of your Prolaser 896G 5-DOTS GREEN ® self levelling Laser Pointer, please adhere carefully to the following instructions. 1. Turn on the laser level by sliding the locking switch. The level will project five laser dots. 2. If the unit is out of leveling range (±3.5°), the laser dots will blink. -
Page 8: Overview
OVERVIEW Laser Unit 1. Laser output window 5. ON / OFF and pendulum (plumb up) locking switch. 2. Laser output window 6. Laser output window (plumb down) (right) 7. ¼" tripod thread 3. Laser output window 8. Battery cover (front) 4. - Page 9 Multifunctional base 1. Fine adjustment screw 2. Rare-earth magnets " tripod thread/ plumb down dot opening 4. ¼" tripod thread 5. Mount 6. ¼" screw 7. Grooves for strap...
-
Page 10: Maintenance
MAINTENANCE • Store in a clean, dry place, between -4°F - 140°F (-20° C +60° C) • Before moving or transporting the unit, ensure that it is turned off and the pendulum is locked. • If the laser level is exposed to water, dry it before returning it to the carrying case to prevent corrosion damage. -
Page 11: Field Calibration Test
FIELD CALIBRATION TEST The laser unit leaves the factory fully calibrated. Kapro recommends that the laser pointer be checked regularly especially if the unit has been dropped or mishandled. Checking accuracy – Plumb dots 1. Turn the laser pointer ON. - Page 12 Checking square (Accuracy of 90° angle between the level beams) 1. Use a room that is at least 5 meters long. Mark a point (A1) on the floor near the wall at one end of the room. 2. Set up the laser so that its down beam is over point A1. Make sure the front level beam points toward the far wall of the room.
-
Page 13: Specifications
SPECIFICATIONS Laser beam output Five dots: Plumb up, plumb down, 3 pattern level dots at 90° angles (front, right, left) Accuracy • Level dots: 0.0003 in/in (0.3 mm/m) • Plumb dots: 0.0003 in/in (0.3 mm/m) • Square : 0.00045 in/in (0.45 mm/m) Self-leveling Range 3.5°±0.5°... -
Page 14: Warranty
The warranty does not cover products that are used improperly, altered or repaired without Kapro Tools' approval. In the event of a problem with the laser level, please return the product to the place of purchase with proof of purchase. - Page 16 Rev. 1.0 ©2020 Kapro Industries Ltd.
