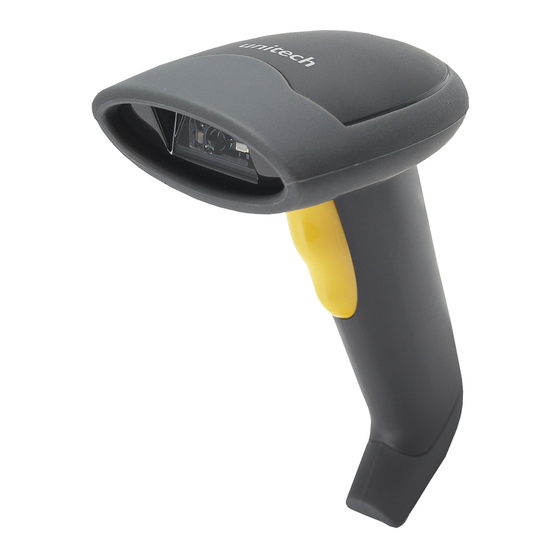

Unitech MS336 Product Reference Manual

2d imager scanner

Hide thumbs Also See for MS336:

Specifications (2 pages)

Quick start manual (1 page)

User manual (56 pages)

Table Of Contents

Table of Contents

Quick Links

Download this manual See also: User Manual

MS336 2D Imager Scanner

Product Reference Guide

Rev. C

Table of Contents

Need help?

Do you have a question about the MS336 and is the answer not in the manual?

Questions and answers

Summary of Contents for Unitech MS336

Page 1: Product Reference Guide
MS336 2D Imager Scanner Product Reference Guide Rev. C Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 3: About This Manual
All product names mentioned in this manual may be trademarks or registered trademarks of their respective companies and are hereby acknowledged. Regulatory Compliance CE, FCC, BSMI, VCCI Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 4: Table Of Contents
Introducing the MS336 ........
Page 8: Introduction
Set up is quick and easy using the USB connection and either Windows-based computer once the setup has completed. Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 9: Support
UTT (Taipei, Taiwan) http://www.unitech.com.tw APAC (Taipei, Taiwan) http://www.unitech-adc.com UTJ (Japan) http://www.unitech-japan.co.jp UTA (USA, Canada) http://www. ute.com UTA (Latin America) http://www.latin.ute.com UTI (Europe) http://www.unitech-europe.nl Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 10 Input Voltage: Camera Operating Current: Focus Motor Current: Aiming Current: Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. Horizontal: 32.2° Vertical: 24.5° 640 (H) x 480 (V) px 360°...
Page 11: Code 39
Code 39, I 2 of 5, Discrete 2 of 5, Codabar, MSI Operating Current: 170mA Session Time, Focus Control, Camera Control, Image Control Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 12: Depth Of Field
3.25 2.25 15 mil PDF417 Minimum distance determined by symbol length and scan angle. Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. 5 mil 6.67 mil PDF417 7.5 mil 7.75...
Page 13: Starting Up
ICM has a large workspace on the right, scanner settings on the left, function icons on the top, and workspace tabs beneath the work page. Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 14: Shutting Down
To do this, right click on the icon and select “Exit”. all of your settings, so that you can switch between different groups of settings for different situations. Save Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 15 Once a snapshot is taken, this icon becomes available to view resizing and saving options About as the serial number of your imager, Driver DLL version, and Scanner Version Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 16 The image page displays an image scanned by your imager. After selecting the snapshot button, your image will be displayed here. Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 17: Bar Code Setup Menu
To enable decoding of parameter bar codes, either scan Enable Parameter Scanning or Enable Parameter Scanning Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 18: Beeper Tone
To select a decode beep frequency (tone), scan the Low Frequency, Medium Frequency, or High Frequency bar code. Low Frequency High Frequency Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. Medium Frequency...
Page 19: Beeper Volume
To select a beeper volume, scan the Low Volume, Medium Volume, or High Volume bar code. Low Volume High Volume Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. Medium Volume...
Page 20 • - A host command issues the triggering signal. The MS336 interprets a trigger pull as a level triggering option. Level Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 21: Power Mode
In continuous power mode, power remains on after each decode attempt. Low Power Mode Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 22: Time Delay To Low Power Mode
This parameter only applies when Power Mode is set to Low Power. 1 Second 1 Minute 1 Hour Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 23: Video Mode
MS336 is optimized to read at its far position. With , the MS336 is optimized to read at its near position. toggles the focus position after every frame. Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 24: Image File Format Selector
BMP File Format TIFF File Format Video View Finder Select Enable Video View Finder Mode, or Enable Video View Finder Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. JPEG File Format...
Page 25: Bar Code Symbologies
Interleave 2 of 5 (ITF) Discrete 2 of 5 (DTF) Codabar Reduced Space Symbology (RSS) Composite Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd. Chapter 4 Code 128 Emulation Data Matrix Maxicode...
Page 26 The check digit is the last character of the symbol used to verify the integrity of the data. Scan the appropriate bar code below to transmit the bar code data with or data. Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 27 System Character only, transmit System Character and Country Code (“0” for USA), and transmit no preamble. Select the appropriate option to match the host system. No Preamble Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 28: Upc-E
The check digit is the last character of the symbol used to verify the integrity of the data. Scan the appropriate bar code below to transmit the bar code data with or data. Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 29 System Character only, transmit System Character and Country Code (“0” for USA), and transmit no preamble. Select the appropriate option to match the host system. No Preamble Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 30: Code 39
Code 39 symbols which include a modulo 43 check digit are decoded. Enable this feature if the Code 39 symbols contain a Modulo 43 check digit. Enable Code 39 Check Digit Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 31 ASCII character set. To enable or disable Code 39 Full ASCII, scan the appropriate bar code below. Enable Code 39 Full ASCII Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 32: Upc-E1
The check digit is the last character of the symbol used to verify the integrity of the data. Scan the appropriate bar code below to transmit the bar code data with or data. Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 33 Country Code (“0” for USA), and transmit no preamble. Select the appropriate option to match the host system. No Preamble Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 34: Ean-13/Jan-13
To enable or disable EAN-13/JAN-13, scan the appropriate bar code below. Enable EAN-13/JAN-13 Bookland EAN To enable or disable Bookland EAN, scan the appropriate bar code below. Enable Bookland EAN Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 35: Ean-8/Jan-8
To enable or disable EAN-8/JAN-8, scan the appropriate bar code below. Enable EAN-8/JAN-8 Code 128 To enable or disable Code 128, scan the appropriate bar code below. Enable Code 128 Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 36: Ucc/Ean-128
ISBT 128. If necessary, the host must perform concatenation of the ISBT data. Enable ISBT 128 Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 37: Convert Upc-E To Upc-A
Convert UPC-E to UPC-A conversion. Convert UPC-E to UPC-A (Enable) Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 38: Convert Upc-E1 To Upc-A
Convert UPC-E1 to UPC-A conversion. Convert UPC-E1 to UPC-A (Enable) Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 39: Convert Code 39 To Code 32
Scan the appropriate bar code below to enable or disable converting Code 39 to Code 32. Convert Code 39 to Code 32 (Enable) Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 40: Convert I 2 Of 5 To Ean-13
EAN-13 check digit. Convert I 2 of 5 to EAN-13 (Enable) Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 41: Trioptic Code 39
Trioptic Code 39, scan the appropriate bar code below. Enable Trioptic Code 39 To enable or disable Discrete 2 of 5, scan the appropriate bar code below. Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 42: Codabar
To enable or disable Codabar, scan the appropriate bar code below. Enable Codabar To enable or disable MSI, scan the appropriate bar code below. Enable MSI Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 44: Rss 14
Scan the appropriate bar code below to enable or disable RSS 14. Enable RSS 14 Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 45: Rss Limited
To enable or disable RSS Limited, scan the appropriate bar code below. Enable RSS Limited RSS Expanded To enable or disable RSS Expanded, scan the appropriate bar code below. Enable RSS Expanded Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 47 Scan a bar code below to enable or disable Composite bar codes of type CC-C. Enable CC-C Scan a bar code below to enable or disable Composite bar codes of type CC-A/B. Enable CC-A/B Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 48 Scan a bar code below to enable or disable Composite bar codes of type TLC-39. Enable TLC-39 Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 50: Data Matrix
To enable or disable Data Matrix, scan the appropriate bar code below. Enable Data Matrix Maxicode To enable or disable Maxicode, scan the appropriate bar code below. Enable Maxicode Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 51: Qr Code,
To enable or disable QR Code, scan the appropriate bar code below. Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 52: Sample Bar Codes
Chapter 5 Sample Bar Codes Data Matrix Maxicode Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
Page 55: Interleave 2 Of 5
Interleave 2 of 5 Code 39 Code 128 EAN 128 Copyright 2007 Unitech Electronics Co., Ltd. All rights reserved. Unitech is a registered trademark of Unitech Electronics Co., Ltd.
