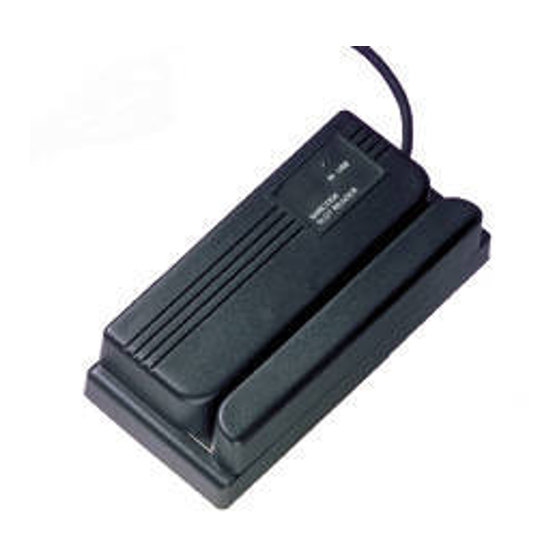

  • Page 1 User’s Manual MS140-3 or MS140I-3 Keyboard Wedge Slot Reader PC Keyboard Wedge Setup Label...

  • Page 2: Installation

    Overview There are two models of the MS140 decoded slot reader available: The MS140-3 keyboard wedge slot reader which supports PC/AT, XT, notebooks and Macintosh computers The MS140-2 RS232 interface slot reader that supports computers with RS232 serial port. Both of these readers support the most popular bar code symbologies, like Code 39, UPC/EAN, Interleaved 2 of 5, Standard 2 of 5, Code 128, Codabar, MSI, Code 11, Code 93, etc.
  • Page 3 Use custom labels (batch setup). When the reader enters the setup mode, a selection menu will be displayed on the screen. Please refer to the MS140 Setup Manual Section. MS140-2 RS232 Wedge Setup of the RS232 wedge reader can be done in two different ways: Through a modem communication utility (such as HyperTerminal).

  • Page 4: Rs232 Interface Setup

    If more than one scanner needs to be configured, you can duplicate the settings of the Master Scanner to the others. This is done by producing a set of custom setup labels (derived from the master scanner) and then scanning these labels to configure the other scanners.
  • Page 5 Selectable Parameters and their Defaults Parameters Keyboard Wedge Device Selection RS232 Interface Baud Rate Parity Data bits CTS/RTS ACK/NAK BCC Character Xon/Xoff Time out 0-1 sec; 1-3 sec; 2-10 sec; 3-Unlimited Beep Tone Beep Tone (On ACK) Intercharacter delay 0 ms/1 ms/2 ms/5 ms/10 ms/30 ms/50 Interblock delay Function Code CapsLock...
  • Page 6 Data Length Preamble Postamble Code 39 Interleaved 2 of 5 Standard 2 of 5 / Toshiba Code 32 Telepen UCC/EAN 128 Code 128 / Label Code MSI / Plessey Code Code 93 Code 11 08- Code 128 09- Code 93 Exclude/ Include Define up to 16 characters Define up to 16 characters...
  • Page 7 Codebar Label Code IV & V UPC-A UPC-E EAN-13 EAN-8 Supplement Code Delta Distance Code Min 1 / Max 48 Disable/Enable Start & Stop Send/No Send CD Calculate & Send/CD Calculate but no Send/CD not Calculate CLSI Format On/Off Min 3 / Max 48 Disable/Enable Checksum Send/No Send Disable/Enable...
  • Page 8 User’s Manual MS140-2 or MS140I-2 RS232 Interface Slot Reader RS232 Interface Setup Label...

This manual is also suitable for:
