Summary of Contents for Optoma DC460

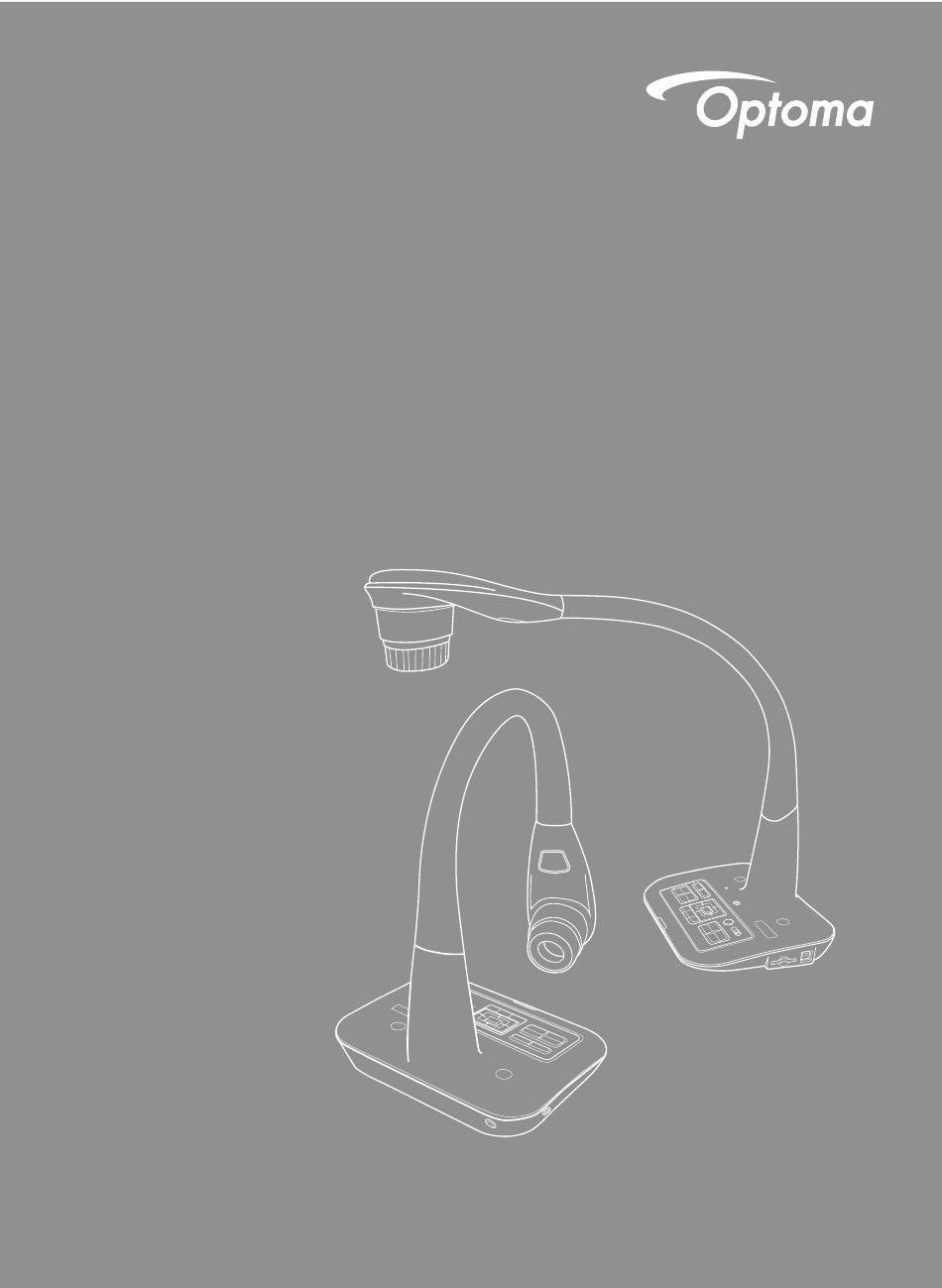

- Page 1 DC460 Document Camera English User manual TS-82-933-90020...
- Page 2 • Welcome: • FCC Compliance Statement (Class A): • Federal Communications Commission (FCC) Statement : • European Community Compliance Statement (Class A):...
- Page 3 Warning...
-
Page 4: Preparing The Document Camera
Preparing the Document Camera Knowing the Document Camera Parts 5 6 7 8 9 10 11 16 17 18 19... -
Page 5: Control Panel
Control Panel POWER PASS THROUGH LAMP OUTPUT HDMI BRIGHTNESS DELETE FLIP MACRO RECORDING PLAYBACK FREEZE APTURE ZOOM OUT AUTO FOCUS ZOOM IN Button Function Button Function... -
Page 6: Remote Control
Remote Control... -
Page 7: Rotate Function
Setting Up This section provides useful tips on how to adjust the document camera smoothly for your needs. Rotate Function Roll the lens rotator to rotate image 90° 90° Illumination Lamp If you are in a dark environment, please turn the LED lamp on to make better exposure. -
Page 8: Working Area
Working Area working area If the document is not put in the recommend working area, the image should be rotated by FLIP button ( ) on control panel or remote control. - Page 9 Adjusting the brightness Zoom Function Flip Function...
-
Page 10: Adjusting The Focus
Functions indicated by can only be used by the remote control. Adjusting the Focus Automatic Focus Manual Focus Anti-glare Anti-glare sheet is a transparent plastic that is overlaid on top of shiny object or glossy surface to reduce the glare. To use, simply place the anti-glare sheet on top of shiny object to glossy surface such as magazine + Anti-glare... - Page 11 Adjust the White Balance Press “MENU” ( There will have a pop out window as the picture below: Press CAPTURE ( )button to get the data of the current image. Use the “ Direction Key” ( )to adjust the number of R, G and B parameters. Press”OK”...
- Page 12 Inserting and Ejecting a SD / SDHC card (Not supplied) When using a new memory card, you are recommended to format the card with the device. Do not turn off the device while formatting the SD card. Even if your card has been formatted on other devices, you may have to reformat the card with the device.
-
Page 13: Making The Connections
Making the Connections System Diagram Step 1 / Plugging in the Power Outlet Use power adapter to connect DC IN connector on the product to a standard 100V~240V AC power outlet. The type of power adapter is depending on your countries / regions. Step 2 / Output Resolution and Aspect Ratio. -
Page 14: Step 2 / Connecting With Components
Step 2 / Connecting with Components Product Display Cable PC Port Port Device Port HDMI Standard TV and Projector • Connect via VGA OUTPUT... -
Page 15: Connect To A Computer
Connect to a computer Passthrough Function Use HDMI Cable to connect HDMI IN To display computer image, press PASSTHROUGH button ( ) on the control panel. For laptop to output display mode, use the keyboard command ( Fn + ) to swtich between the display modes. -
Page 16: Basic Operation
Basic Operation Menu options in Preview Mode Name icon Option Description B&W... - Page 17 Name icon Option Description Menu options in Playback Mode Name icon Option Description...
- Page 18 Functions indicated by can only be used by the remote control. Recording a video clip / Taking a still picture Playback...
- Page 19 Copying Files to Computer memory will be detected. directly to your computer to read the image data. Using document camera as a PC cam Starting the application Switch to PC Cam mode. Connect the other end of the USB cable to the main unit. Power on press MENU ( ) and After the product is correctly connected to and detected by your PC, you are ready to use PC...
-
Page 20: Advance Operation
Functions indicated by can only be used by the remote control. Advance Operation Highlight function / Mask function( ) Highlight function Mask function Press the Size button ( ) on the remote control, and use the direction buttons to adjust the highlighted / masked size. Press the Color button ( ) on the remote control, and use the direction buttons to adjust the color of highlighted / masked area. -
Page 21: Connect To A Microscope
Connect to a microscope For eyepieces of about Ø33mm, Ø34mm, only a microscope adaptor should be installed. For a Ø28mm eyepiece, insert the Ø28mm adapter into the microscope adapter. For a Ø31mm eyepiece, insert the Ø31mm adapter into the microscope adapter. Ø33/Ø34mm Ø33/Ø34mm Ø33/Ø34mm... - Page 22 Functions indicated by can only be used by the remote control. Press MENU ( )--> select Focus ( ) --> select Macro or press Macro button ( on remote controller. If the image is not clear. Please adjust the focus of microcope. Press the AF button ( ) or use the manual focus button on remote control to fine-tune the focus.
- Page 23 Storing...
-
Page 24: Troubleshooting
Troubleshooting When using the document camera : Problem Cause Solution... - Page 25 When using the document camera : Problem Cause Solution...
- Page 26 When using the document camera : Problem Cause Solution The contents in this manual are subject to change without prior notification.
