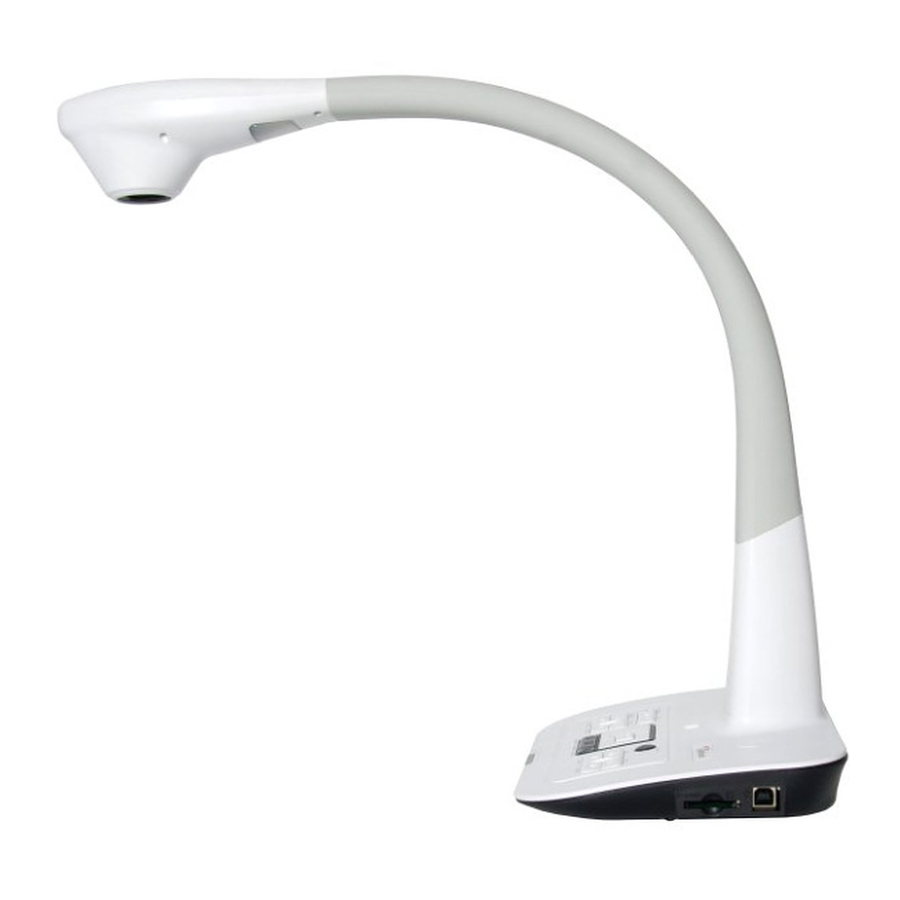

Optoma DC350 - 5MP Document/Video Visualiser Quick Guide

Knowing the Parts

1. Gooseneck Arm
2. LED Lamp
3. Camera Head
4. DC 5V Power Socket
5. VGA Output Port
6. VGA Input Port
7. Remote Control Signal Receiver 1
8. Antitheft Slot
9. Remote Control Signal Receiver 2
10. Control Panel
11. SD Card Slot
12. USB Port

Power On

1. Plug in the power cord.
2. Press the Power button ( ) to turn on the Document Camera.

Connecting the Output Display

1. Turn on projector or any display device
2. Connect a VGA Cable to VGA OUT Port
3. Connect the other end of VGA Cable to VGA In Port of your projector or display device.


Setting the OSD Language

1. Press the MENU button ( ).
2. Select Setting→Language.
3. Use Right/Left Arrow to adjust and press OK ( ) to confirm.

Connecting to A PC for Computer Presentation

1. Connect a VGA Cable to VGA Input Port

2. Press PASSTHROUGH Button ( ) to switch between DC mode and PC mode.

Notices for Operation

1. Please adjust the camera head with one hand on the base.
2. To Prevent your eyes from damaged, please do not look directly to the LED lamp.
3. Choose the focus mode according to distance to object:
   Normal mode for 25cm to ∞.
   Macro mode for 1cm to ∞.

*Optical zoom won't be available when in MACRO mode.

Basic Operation

	Power on/off
	Invert image 180 ∘
	Macro/Normal Switch
	"Freeze the current image *Pause the clip while playing video"
	Capture a still image
	Show Menu and select
	Direction button
	Zoom out
	Zoom in
	One-time auto focus
	Pass the signal from PC via VGA Input Port to VGA Output Port
	Turn on/ off and adjusting the brightness of the LED lamp
	Show/hide brightness adjustment bar
	Delete one/all file from memory when in playback mode
	Record a video clip
	Enter playback mode to display recorded still images and video clips
