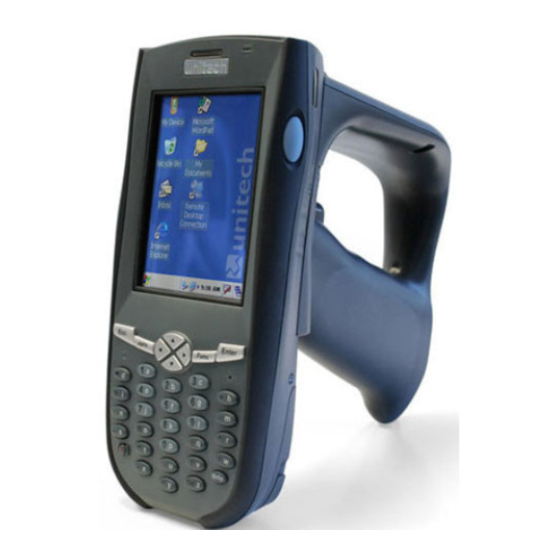

Unitech RH767 User Manual

Rfid handheld reader
Hide thumbs Also See for RH767:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Programming Manual, Quick Reference Manual
RH767 RFID Handheld Reader
a
d
b
c
e
i
h
7
g
f
n
j
m
k
l
s
o
"
p
q
r
t
<
x
u
w
v
y
z
User's Manual
400558G Rev. E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RH767 and is the answer not in the manual?

Questions and answers

Related Manuals for Unitech RH767

Summary of Contents for Unitech RH767

  • Page 1 RH767 RFID Handheld Reader “ < User’s Manual 400558G Rev. E...

  • Page 3: Preface

    About This Manual This manual explains how to install, operate and maintain the RH767. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, without permission in writing from the manufacturer. This includes electronic or mechanical means, such as photocopying, recording, or information storage and retrieval systems.

  • Page 4: Rohs Statement

    RH767 may not power-on due to battery discharge as a result of storage. In the above situation, plug the RH767 to the USB charging cable which is with DC in port or put the unit into the unitech RH767 Cradle (with 12V/2A AC-DC adapter), and recharge the unit for 16 hours in order to fully charge its backup battery.

  • Page 5: Battery Charge Notice

    Battery Charge Notice It is important to consider the environment temperature whenever you are charging the Lithium-Ion battery pack. The process is most efficient at normal room temperature or slightly cooler. It is essential that you charge batteries within the stated range of 0°C to 40° C.

  • Page 6: Table Of Contents

    Charging the Battery with the Docking Station ... 8 Checking the Battery Status ...9 Connecting the RH767 to a PC ...9 Turning the RH767 on for the First Time ...10 Powering On ...10 Calibrating the RH767 Screen ... 11 Setting the Time and Date ...12...
  • Page 7 Chapter 2 ...13 Using the Hardware ... 13 Using Function keys ...13 Toggle to Alpha Mode and CAPS ...14 Adjusting Settings ...15 Checking the Main and Backup Battery Status ... 16 Using the Stylus ...17 Using the Laser Scanner ...17 Scanner Settings ...18 Scan2Key ...19 Using the RFID ...19...

  • Page 9: Chapter 1

    It can read 15693/ISO 1443A/B RFID tags and comes with embedded RFID middleware and Windows CE 5.0 for easy integration. The RH767 has a battery life of up to 20 hours – long enough for operation. Connectivity options include WLAN 802.11b/g, Bluetooth and GPRS (via the PCMCIA slot).

  • Page 10: Package Contents

    If anything is missing or appears damaged in any way, please contact your unitech service team. Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. Power Adapter and Cable Synchronization and Power Cable “...

  • Page 11: A Tour Of The Pa982

    A Tour of the PA982 The following sections describe the main components and features of the RH767. Front Right View No. Component Status Indicator LCD Touch Screen Alpha Mode Indicator Keypad Power Button Chapter 1 “ < Description Indicates the battery charging and barcode scanning status.

  • Page 12: Back View

    Bar Code Scanner Trigger Battery Compartment Strap Lug RFID Antenna Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. Used to receive sound. Press to activate the barcode laser scanner. Description Enables you to interact with the operating system.

  • Page 13: Bottom View

    This section explains how to install and charge the battery, how to check battery status, how to connect the RH767 to a PC, how to turn on the RH767 for the first time, how to install an optional Wireless Local Area Network PCMCIA card, and how to calibrate the screen.
  • Page 14 3. Position the battery pack, making sure the battery contacts are aligned with the contacts in the compartment, as shown in the following illustration. Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. Backup battery & grip...
  • Page 15 4. Place the battery pack into the battery bay and press the battery securely into the compartment. 5. Replace the battery compartment cover, push down the tabs and slide them back into place as shown in the illustration. Chapter 1 Getting Started...

  • Page 16: Charging The Battery

    Charging the Battery Before using the RH767 for the first time, you need to charge it for about 16 hours. After that, you can charge the RH767 every day to recharge the battery to full capacity. Charge the RH767 using the synchronization power cable or the docking station.

  • Page 17: Checking The Battery Status

    Connecting the RH767 to a PC Use the synchronization power cable to connect the RH767 to a PC to use with ActiveSync. 1. Connect the USB connector jack to the RH767 (1). 2. Plug the USB connector into a serial port on the PC and connect the AC adapter into the USB connector (2).

  • Page 18: Turning The Rh767 On For The First Time

    1. Turn on your device by pressing the power buttonon the front panel. 2. The unitech RH767 welcome screen appears for a moment followed by the calibration screen. Power Button Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. Enter alpha Func “...

  • Page 19: Calibrating The Rh767 Screen

    This screen can also be accessed at any time by pressing the hot key [FUNC] and the [ESC] key. The RH767 prompts you to calibrate the unit by tapping a sequence of screen locations. Tap gently but firmly. When you have completed the series of taps, press the [ENT] key to confirm calibration or press the [ESC] key to cancel it.

  • Page 20: Setting The Time And Date

    (decrease brightness) or right (increase brightness) cursor buttons. Increase Brightness Decrease Brightness Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. Function Button Enter alpha Func “...

  • Page 21: Chapter 2

    The following table describes the main keypad keys. Main Function Press this button to turn the RH767 on. Press and hold this button for two seconds to turn the RH767 off. Pressing this button corresponds to tapping the cancel or X button on the screen.

  • Page 22: Toggle To Alpha Mode And Caps

    “/’/t “ ,/?/u [/]/v //\/w </>/x < =/&/y DEL/z Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. Alpha ON FUNC DOWN FUNC UP Backspace Backspace Enter Enter Backlight SPACE ‘...

  • Page 23: Adjusting Settings

    Chapter 2 Using the Hardware Adjusting Settings This section describes how to adjust the settings of your device to accommodate your work habits. To access Settings, tap Start → Settings→ Control Panel The Control Panel appears. From here you can adjust such user configurable items as the backlight, auto power off timer, system volume, and processor speed.

  • Page 24: Checking The Main And Backup Battery Status

    10%. If the battery does not accept a charge, contact unitech Technical Support. Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd. Main battery voltage...

  • Page 25: Using The Stylus

    Use very light pressure. Using the Laser Scanner The RH767 has an integrated laser scanner which reads all major bar code labels with excellent performance. NOTE: Reading software must be enabled in order to operate the scanner. This can be a userloaded application or a pre-loaded utility such as Scanner Setting.

  • Page 26: Scanner Settings

    Press [FUNC] + 7 to display the Scanner Control Panel. NOTE: Alternatively, tap Start → Settings → System → Scanner Settings to display the Scanner Control Panel. Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 27: Scan2Key

    Press [FUNC] + [7] to display the Scanner Control Panel, then tap To Kpd to access Scan2Key settings. Using the RFID The RH767 RFID sample application is provided for reading RFID Class 0 and Class 1 Gen2 RFID tags. The RFID demo program is pre-loaded in the Flash Storage.
  • Page 28 (1W). Then close the setting window. 7. Select the Start Inventory button, The counter indicates incidents of continuous reading by the reader. Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 29: Launching Hf Rfid Demo Program

    Launching HF RFID Demo Program To launch the HF RFID sample application, 1. Double-tap My Device, then double-tap Flash Storage. 2. Double-tap the RFIDPower icon, then tap the RFID ON button to turn on the RFID. Tap OK to exit the window.
  • Page 30 6. Tap the Get SerialNumber button to start the scan. The window shows the reading number. 7. Tap the Disconnect button to stop the test process. Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 31: Chapter 3

    Getting Connected The unitech RH767 enables users to link to a host computer using an RS-232, IrDA, or WLAN connection for data communication. This chapter provides an overview of RH767 communication options. Establishing Device-PC Connection Installing Microsoft ActiveSync In order to exchange data between your computer and the RH767, Microsoft ActiveSync must be installed on your computer.

  • Page 32: Using Activesync To Exchange Files

    To copy files: 1. Connect your device to your computer. 2. In ActiveSync on your computer, click Explore. Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 33: Using The Wlan

    Setting up the Wireless Local Area Network Card The RH767 is pre-loaded with connection software. The RH767 automatically detects RF cards and then displays this screen during the first-time installation. Note that you can use one of the following two ways to set the IP address: ●...

  • Page 34: Specifying An Ip Address

    WINS, and Secondary WINS. To avoid conflict with your LAN environment, consult with your MIS department for the correct TCP/IP setting. Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 35: Wifi Connection

    Chapter 3 Getting Connected WiFi Connection Unitech terminals come with built-in RF facility.This chapter guides the user on how to setup the RF setting. 1. Double tap the Summit Client Utility. 2.  U nder “Main” tab, for Active Profile, select “Third-PartyConfig”.
  • Page 36 8.  E nter the SSID. Uncheck “The key is provided automatically”.Enter the network key. 9.  T ap OK. Start to search for RF signal and the RF is connected. Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 37: Using The Summit Utilities

    Chapter 3 Getting Connected Using the Summit Utilities You can use the Summit Utility tool to setup or change the WiFi setting. Admin Login 1.  T o login as an administrator, tap “Admin Login” 2.  E nter the password. (Default password: SUMMIT) Scan Available AP 1.

  • Page 38: Encryption

    2.  I n "Main" tab, select the profile you want to activate. 3.  I n "Status" tab, you can see the IP address and the signal strength. Copyright 2007 unitech Electronics Co., Ltd. All rights reserved. unitech is a registered trademark of unitech Electronics Co., Ltd.

  • Page 39: Appendix

    • Oracle Sensor Edge Server • Oracle Sensor Edge Mobile • Oracle Database Lite • Microsoft BizTalk R2 ** Please contact your unitech service team for detailed information of middleware supporting. System Specifications Hardware Memory: 64 MB ROM / 64MB SDRAM...
  • Page 40 4 Slot Battery Charger 4 Slot Multi-bay Charging & Communication Cable Software Unitech RH767SDK, RFID middleware SDK Development Kit Microsoft Embedded Visual Tool Software Unitech RFID Middleware support Oracle Sensor Edge Server, Microsoft BizTalk RFID, IBM WebSphere Regulatory CE, FCC, VCCI, NCC, CCC...
