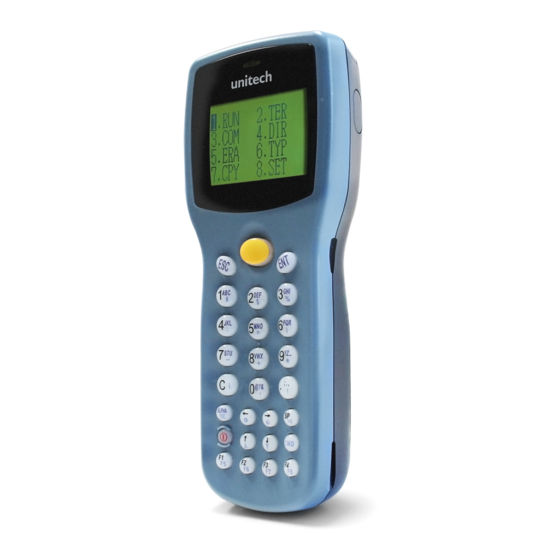

Unitech PT630 Connection Manual

Unitech PT630 Connection Manual

Ethernet cradle setup

Advertisement

Software needed:

Network Enabler Administrator v2.6
http://www.ute.com/files/software/38_NetworkEnabler.zip
OnlineCom Manager (or OnlineDll.dll)
http://www.ute.com/files/software/20_OnlineCommManagerSetup.exe

Connecting the Cradle to your Network:

1. Connect the 9V power adaptor to the cradle
2. Connect an Ethernet cable to either the IN or OUT (not both)
3. Run Network Enabler Administrator

Network Enabler Administrator:

a. Press the scan button to scan for the cradle once it is connected to your
network
PT063D-4 Ethernet Cradle Setup
Press the scan button to scan
for the cradle once it is
connected to your network.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PT630 and is the answer not in the manual?

Questions and answers

Summary of Contents for Unitech PT630

  • Page 1 PT063D-4 Ethernet Cradle Setup Software needed: Network Enabler Administrator v2.6 http://www.ute.com/files/software/38_NetworkEnabler.zip OnlineCom Manager (or OnlineDll.dll) http://www.ute.com/files/software/20_OnlineCommManagerSetup.exe Connecting the Cradle to your Network: 1. Connect the 9V power adaptor to the cradle 2. Connect an Ethernet cable to either the IN or OUT (not both) 3.
  • Page 2 b. The Network Enabler Administrator software should see the cradle and the IP address assigned to it. Double click this IP address for a new window with all the setting. Click the “Network” tab c. Click on the “Network” tab and modify the IP address to match the IP addresses distributed by your router.
  • Page 3 d. Now select the “Serial” tab and check the “Modify” box. Now click on the settings that appear below. A new window will pop up that will allow user to change baud rate, parity, data bits, stop bits and flow control. The settings above are good settings to use.
  • Page 4 Administrator application. Once connected, the OnlineCom Manager application will display the contents of the PT630 on the left side of the screen and the contents of the PC on the right. Note: If PC contents populate but receive “A:\?” on the left side (portable...
