Unitech PT630
Setup And User Instructions
The General Store can interface to the Unitech PT630 Handheld data collector for taking
inventory, receiving inventory, and creating purchase orders. This document shows you how to
set up and use the Unitech with The General Store.
Setup
Step 1 – Connect The Unitech To Your PC

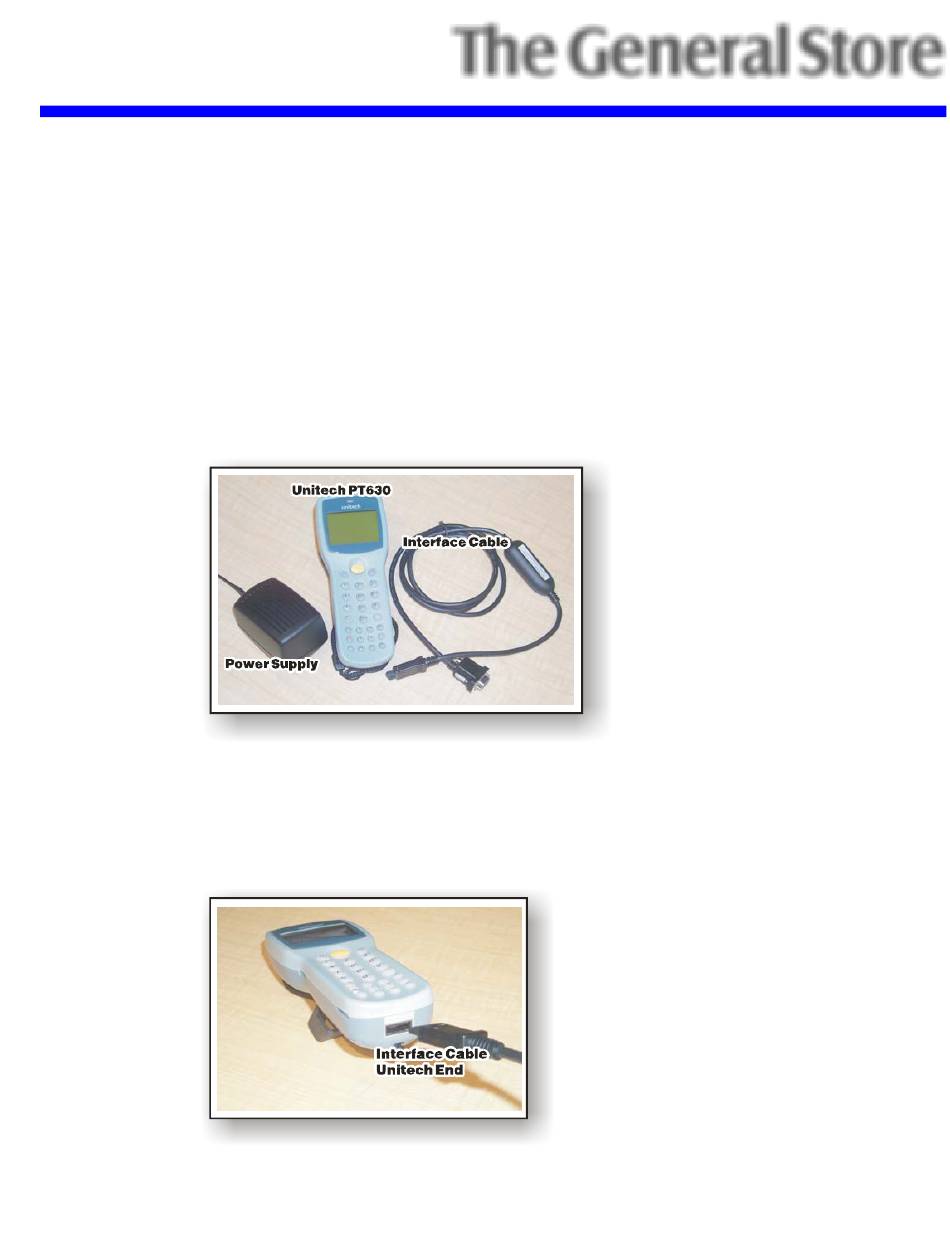

Your Unitech kit consists of 2 CD's and the hardware shown in the above figure. The Unitech CD
is not needed, so set it aside.
First connect the power adapter cable into the Unitech serial interface cable as show below.
Then attach Unitech interface side of the serial interface cable into the bottom of the Unitech.
