Triad SA1 Installation Manual

TRIAD INSTALLATION GUIDE - TRIAD SA1 RYFF-ENABLED 200W×2 STREAMING AMPLIFIER
INTRODUCTION
The Triad SA1 is a single-zone, high-resolution streaming amplifier and an
easy way to add music into any room without the need to pull wire back to
a central location. The Triad SA1 supports high-resolution audio playback,
up to 192 kHz / 24 bit, with a built-in amplifier boasting an impressive 115
dB signal-to-noise ratio and 200 watts per channel—enabling incredible
sound in any room. Also included are equalizer, speaker presets, delay, and
subwoofer tuning options.
The Triad SA1 is also a great alternative to an AVR in a bedroom, kitchen,
or other location when surround sound is not a requirement. Not only
does the Triad SA1 have digital, analog audio, and HDMI ARC/eARC inputs
to take the audio output from a TV to power a soundbar, it has two IR
outputs to control the TV and another local source, if needed.
A line-level subwoofer output rounds out the system for deep bass
when connected to a powered subwoofer. The Triad SA1 can be placed
horizontally or vertically, and can be installed on a bookshelf, shelf, or in a
rack.
WARNINGS
WARNING! To reduce the risk of electrical shock, do not expose
this apparatus to rain or moisture.
AVERTISSEMENT ! Pour réduire le risque de choc électrique,
n'exposez pas cet appareil à la pluie ou à l'humidité.
WARNING! Do not expose the apparatus to dripping or splashing.
Do not place objects filled with liquids near the apparatus.
AVERTISSEMENT ! N'exposez pas l'appareil aux éclaboussures et
éloignez de toutes substances liquides. Ne placez pas les objets
contenant du liquides près de l'appareil.
IMPORTANT! Using this product in a manner other than outlined
in this document voids your warranty. Further, Control4 is not
liable for any damage incurred with the misuse of this product. See
"Warranty."
IMPORTANT ! Employer ce produit en quelque sorte autre que
décrit dans ce document vide votre garantie. De plus, Control4
n'est pas responsable d'aucun dommage encouru avec l'abus de ce
produit. Voyez que « Warranty. »
IMPORTANT! To avoid generating excessive heat, do not stack
amplifiers on top of each other or other equipment and allow 5 cm
on all sides and above the amplifier.
IMPORTANT ! Pour éviter de produire de la chaleur excessive, ne
pas disposer les amplificateurs, ou tout autre équipement, les uns
sur les autres et laissez 5 cm de tous les côtés et au-dessus de
l'amplificateur.
www.snapone.com | 1-888-400-4072 | 200-00735-A 2023-08-25 DH
FEATURES
• Add a high-resolution, amplified audio zone
• Built-in streaming music services synchronized with other Ryff-enabled
devices
• Network control of audio and volume over an Ethernet or WiFi
connection
• Analog and digital audio inputs support audio resolutions up to
192 kHz / 24 bit
• Volume, bass, treble, 6-band parametric EQ, balance, loudness, and
mono summing
• Input gain for analog source input
• Audio sensing supports programmable events based on the presence
of audio
• Built-in EQ presets for Triad speakers
• Supports native Ryff streaming services including Pandora, Spotify,
TIDAL, Napster, Sirius XM, Deezer, iHeartradio, and more
• Supports built-in digital media playback including My Music,
ShairBridge, and DLNA
• HDMI port with ARC/eARC support for audio return from TVs,
including Dolby Atmos® and DTS downmixing and playback.
SUPPORTED MODELS
• TS-SA1-200 Triad SA1, Ryff-Enabled 200W×2 Streaming Amplifier
BOX CONTENTS
• Triad SA1
• AC power cord
• Wi-Fi antenna

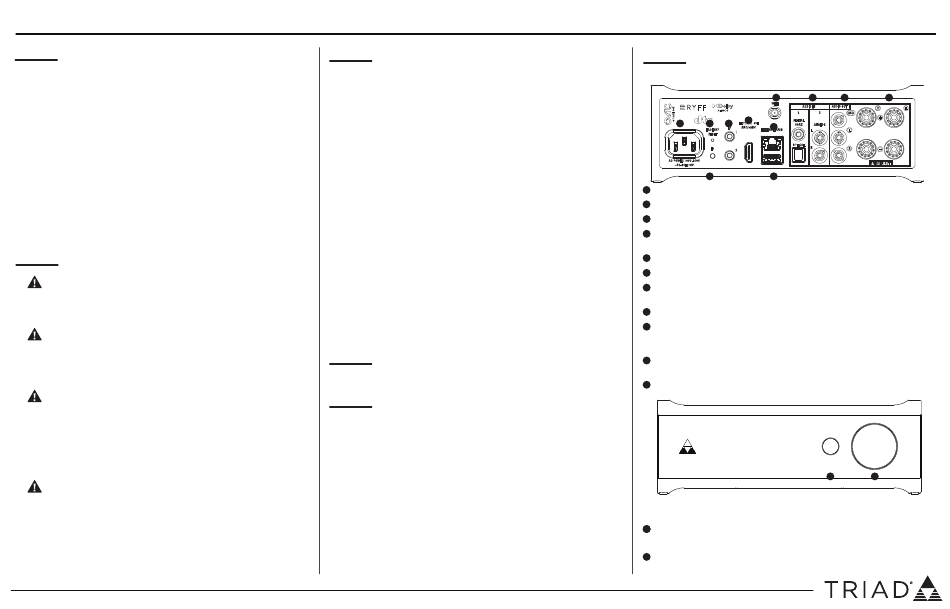

FRONT AND REAR PANEL DESCRIPTION
REAR PANEL
F I
E
A B D
G
C H
A Power plug port—AC power connection 100V – 240V, 50 - 60 Hz.
A
B FACTORY RESET—Button used to reset the amplifier to factory settings.
B
C ID—Button used to identify the device in a Control4 system.
C
D IR—Two 3.5 mm IR ports. Used to control devices such as a TV or local
D
AVR in a Control4 system.
E HDMI OUT ARC/eARC—HDMI port for HDMI ARC/eARC audio. E
F WIFI—Antenna connector for the WiFi antenna.
F
G ETHERNET—RJ-45 port for network connection. Used for device
G
control, device configuration, and digital audio streaming.
H USB—USB 2.0 port used for local media file storage.
H
I AUDIO IN—Two audio inputs. One analog stereo input, one digital
I
S/PDIF or digital coax input. Digital inputs accept stereo PCM audio
only.
J AUDIO OUT— Line-level audio outputs. One stereo RCA connection and
J
one mono RCA connection for subwoofer out.
K SPEAKER OUT—Binding posts for speaker connections.
K
FRONT PANEL
L Play/Pause button—Press the button to easily play or pause music. LED
L L
shows power, boot, and device status.
M Volume knob—Turn the knob to quickly turn the volume up or down.
M
J K
L M
