Triad TS-PAMP8-100 Installation Manual

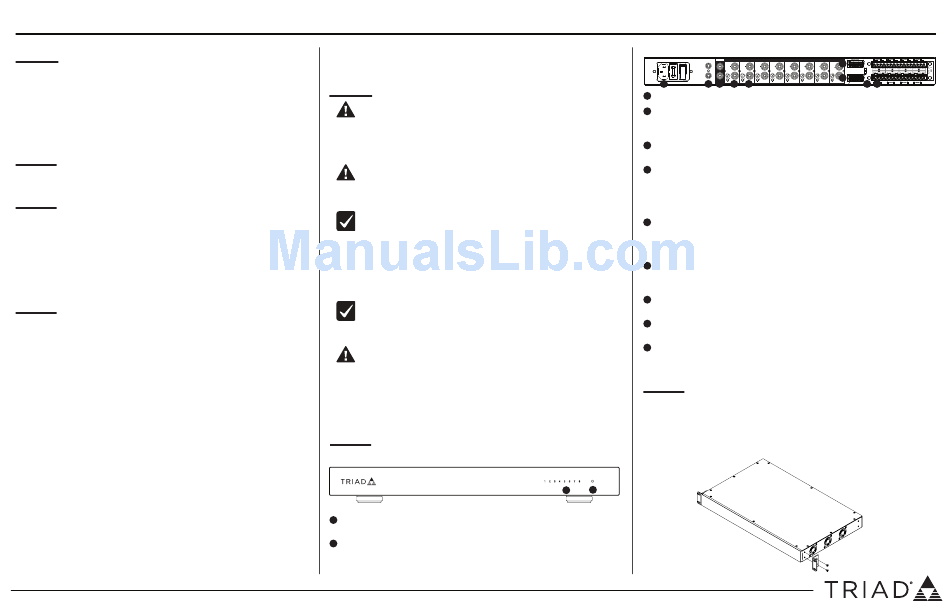

TRIAD INSTALLATION GUIDE - 8-ZONE POWER AMPLIFIER

INTRODUCTION

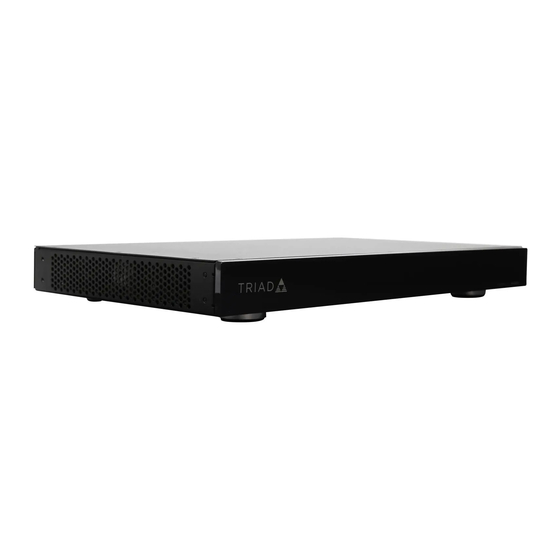

The Triad 8-Zone Power Amplifer delivers high-performance, reliability,
and robust amplification in a compact form factor—providing the perfect
solution for distributed audio systems. Low wake-from-standby time and
high-resolution audio quality output make this amplifier worthy of any
audio solution. Seamless integration with the Triad Audio Matrix Switches
and other Triad Power Amplifiers provides you with an easily configurable,
fully featured audio distribution solution for any size home.

SUPPORTED MODEL

• TS-PAMP8-100 8-Zone Power Amplifier

BOX CONTENTS

• 8-Zone Power Amplifier
• IEC power cable
• Phoenix speaker connectors
• Rack-mount ears
• Mono 3.5mm 12V trigger cable

FEATURES

• Powerful amplification driven by ICEpower modules delivers a dynamic,
high-resolution audio experience
• Class-D amplification runs cool allowing you to stack one amplifier on
top of the other
• Bridgeable outputs provide double the amplification for areas that
require more amplifier power
• 1U rack height takes up half the rack space of other multi-room audio
amplifiers
• Fast wake from standby using 12V trigger from Triad Audio Matrix
Switches—ideal for time-sensitive audio announcements and quick
audio zone turn on
• Standby mode saves energy by muting audio when not in use
• Three power mode control options—12V trigger, audio sensing or
always on
• Global input allows a single audio input to be linked to multiple
amplifier outputs with a simple dip switch
• Global output allows you to chain multiple amplifiers together to create
large audio zones
• Over-current protection prevents amplifier channels from overloading
due to short circuits or incorrect wiring
www.control4.com | 1-888-400-4072 | 200-00463-B 2017-09-01 DH
• Thermal protection shuts down amplifier channels if thermal limits are
exceeded, preventing damage

WARNINGS

WARNING! Do not expose the apparatus to dripping or splashing.
Do not place objects filled with liquids near the apparatus.
AVERTISSEMENT ! N'exposez pas l'appareil à l'égoutture ou à
l'éclaboussement. Ne placez pas les objets remplis de liquides près
de l'appareil.
WARNING! To reduce the risk of fire or electrical shock, do not
expose this apparatus to rain or moisture.
AVERTISSEMENT ! Pour réduire le risque du feu ou de choc
électrique, n'exposez pas cet appareil à la pluie ou à l'humidité.
IMPORTANT! Using this product in a manner other than outlined
in this document voids your warranty. Further, Control4 is NOT
liable for any damage incurred with the misuse of this product. See
"Warranty."
IMPORTANT ! Employer ce produit en quelque sorte autre que
décrit dans ce document vide votre garantie. De plus, Control4
n'est pas responsable d'aucun dommage encouru avec l'abus de ce
produit. Voyez que « garantie. »
IMPORTANT! Do not defeat the safety purpose of the polarized
or grounding-type plug. The wide blade or the third prong are
provided for your safety. If the provided plug does not fit into your
outlet, consult an electrician for replacement of the obsolete outlet.
WARNING! To reduce the risk of fire, do not install this device in
a cabinet that is smaller than 20" (50.8 cm) wide × 20" (50.8 cm)
deep × 12" (30.5 cm) high. If you do, the device may overheat.
AVERTISSEMENT ! Pour réduire les risques d'incendie, ne pas
installer cet appareil dans une armoire qui est plus petit que 20"
(50.8 cm) de large × 20" (50.8 cm) de profondeur × 12" (30.5 cm)
de haut. Si vous le faites, l'appareil peut surchauffer.

FRONT AND REAR PANEL DESCRIPTIONS

FRONT PANEL
A Zone Status LEDs—Lights blue when an amplifier zone is on, red if in
A
overcurrent protection, and orange if in thermal shutdown
• Power LED—Lights blue when amplifier powers on.
B
12V GLOBAL OUT GLOBAL IN ZONE INPUTS
AC POWER 100V-240V ~50-60Hz 105W
TRIGGER
1 2 3 4 5 6 7
IN
L BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE
GAIN GAIN GAIN GAIN GAIN GAIN GAIN
OUT R
FUSE RATING T6.3A_H 250V CLIP CLIP CLIP CLIP CLIP CLIP CLIP
BACK PANEL
AC POWER 100V-240V ~50-60Hz 105W
A
FUSE RATING T6.3A_H 250V
• Power connector—Use the supplied power cord to connect power.
A
• 12V TRIGGER IN/OUT— Trigger input for 12V control of amplifier power.
B
Connects to trigger output of audio matrix or other 12V trigger device.
Trigger output chains 12V control to another amplifier trigger input.
• GLOBAL OUT—RCA connectors for a global line-level stereo audio out.
C
Outputs whatever audio device is plugged into Zone 1 Input/GLOBAL IN.
• Zone 1 input/GLOBAL IN—RCA connectors for stereo line in. Can be
D
used as a global audio input or input for zone 1. GAIN dial is used to
adjust input level for zone 1 or global in. The recommended starting gain
level is 6. CLIP LED turns red when input gain is too high, causing the
amplifier zone to clip.
• Zone 2-8 input—RCA connectors for stereo line in for zones 2-8. GAIN
E
dial is used to adjust input level for each zone. The recommended
starting gain level is 6. CLIP LED turns red when input gain is too high
for each zone, causing the amplifier zone to clip.
• BRIDGE MODE—Set switches to On to bridge left/right amplifier
F
channels for a zone. When channels are bridged, use the RCA input
labeled BRIDGE.
• LINK TO GLOBAL INPUT—Set switches to On to link a zone to the
G
GLOBAL IN.
• POWER MODE—Set to ON/12V/AUDIO to configure the amplifier's
H
power setting.
• ZONE OUTPUTS—Phoenix connector for speaker wiring connections for
I
each zone.

INSTALLING THE AMPLIFIER

The 8-Zone Power Amplifier comes with rack-mount ears and can be
installed in a 1U rack space.
Installing the 8-Zone Power Amplifier in a rack:
1 Attach the rack ears to the sides of the amplifier using the provided
screws.
A B
PAMP8-100 Amplifier
8
L
BRIDGE
POWER MODE
1 2 3 4 5 6 7 8
ON L 1 R L 2 R L 3 R L 4 R
12V
GAIN L 5 R L 6 R L 7 R L 8 R
AUDIO
LINK TO GLOBAL INPUT
R
CLIP ALL 2 3 4 5 6 7 8
12V GLOBAL OUT GLOBAL IN ZONE INPUTS
F
TRIGGER
1 2 3 4 5 6 7 8
IN L
L BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE BRIDGE
POWER MODE
1 2 3 4 5 6 7 8
ON L 1
12V
GAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN L 5
AUDIO
LINK TO GLOBAL INPUT
G
OUT R R
B C D E H I
CLIP CLIP CLIP CLIP CLIP CLIP CLIP CLIP ALL 2 3 4 5 6 7 8
R L 2 R L 3 R L 4 R
R L 6 R L 7 R L 8 R
