TRIAD INSTALLATION GUIDE - TRIAD ONE, SINGLE ZONE HIGH-RESOLUTION STREAMING AMPLIFIER
INTRODUCTION

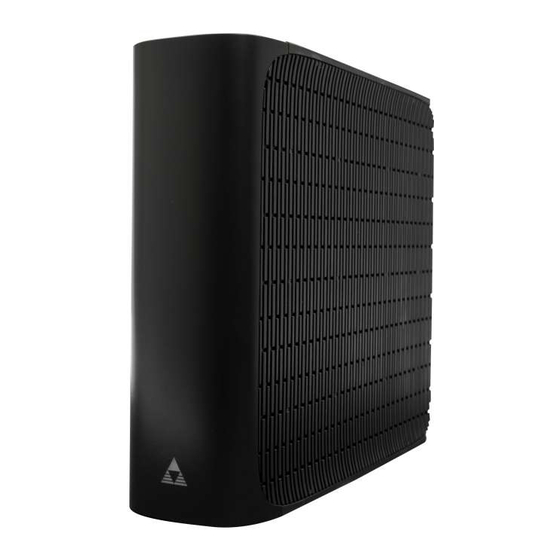

The Triad One is a single-zone, high-resolution streaming amplifier and the
easy way to add music into any room of a Control4-enabled home without
the need to pull wire back to a central location. The Triad One supports
high-resolution audio playback, up to 192 kHz / 24 bit, with a built-in
amplifier boasting an impressive 105 dB signal-to-noise ratio and 100 watts
per channel—enabling incredible sound in any room. Also included is a
built-in 10-band parametric EQ delivering exceptional sound output and
room optimization.
The Triad One is also a great alternative to an AVR in a bedroom, kitchen,
or other location when surround sound is not a requirement. Not only
does the Triad One have digital and analog audio inputs to take the audio
output from a TV to power a soundbar, it has two IR outputs to control the
TV and another local source, if needed.
A line-level subwoofer output rounds out the system for deep bass when
connected to a powered subwoofer. The Triad One is available in white and
black, can be placed horizontally or vertically, and can be installed on a
bookshelf, in a rack, or mounted behind a TV.
WARNINGS
WARNING! To reduce the risk of electrical shock, do not expose
this apparatus to rain or moisture.
AVERTISSEMENT ! Pour réduire le risque de choc électrique,
n'exposez pas cet appareil à la pluie ou à l'humidité.
WARNING! Do not expose the apparatus to dripping or splashing.
Do not place objects filled with liquids near the apparatus.
AVERTISSEMENT ! N'exposez pas l'appareil aux éclaboussures et
éloignez de toutes substances liquides. Ne placez pas les objets
contenant du liquides près de l'appareil.
IMPORTANT! Using this product in a manner other than outlined
in this document voids your warranty. Further, Control4 is not
liable for any damage incurred with the misuse of this product. See
"Warranty."
IMPORTANT ! Employer ce produit en quelque sorte autre que
décrit dans ce document vide votre garantie. De plus, Control4
n'est pas responsable d'aucun dommage encouru avec l'abus de ce
produit. Voyez que « Warranty. »
IMPORTANT! To avoid generating excessive heat, do not stack
amplifiers on top of each other or other equipment.
IMPORTANT ! Pour éviter de produire de la chaleur excessive, ne
pas disposer les amplificateurs, ou tout autre équipement, les uns
sur les autres.
www.control4.com | 1-888-400-4072 | DOC-00287-A 2017-08-28 DH
FEATURES
• Add a high-resolution, amplified audio zone to any Control4 system
• Built-in streaming music services synchronized with EA controllers
• Network control of audio and volume over a wired or WiFi connection
• Analog and digital audio inputs support audio resolutions up to
192 kHz / 24 bit
• Volume, bass, treble, 10-band parametric EQ, balance, loudness, and
mono summing
• Input gain for analog source input
• Audio sensing supports programmable events based on the presence
of audio
• Built-in EQ presets for Triad speakers
• Supports native Control4 streaming services including Pandora,
Spotify, TIDAL, Napster, Sirius XM, Deezer, and iHeartradio
• Supports built-in Control4 digital media playback including My Music,
ShairBridge, and DLNA
SUPPORTED MODELS
• TS-SAMP-100-BL Triad One, Single Zone, High-Resolution Streaming
Amplifier in Black
• TS-SAMP-100-WH Triad One, Single Zone, High-Resolution Streaming
Amplifier in White
BOX CONTENTS
• Triad One
• AC power cord
• Phoenix connector for speaker wires
• Rear cover

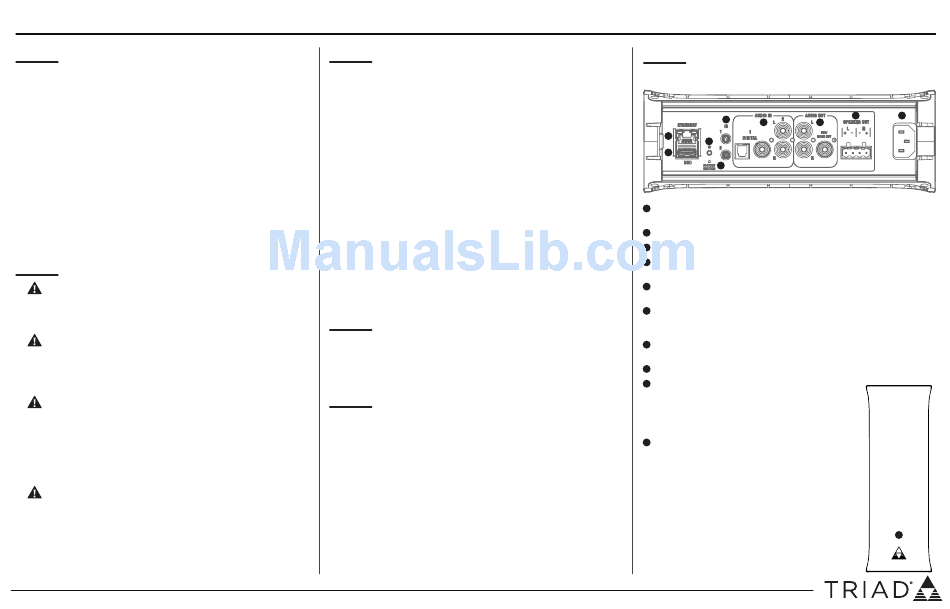

FRONT AND REAR PANEL DESCRIPTION
REAR PANEL
E
F G
A
C
B
D
A ETHERNET—RJ-45 port for network connection. Used for device control,
A
device configuration, and digital audio streaming.
B USB—USB 2.0 port. Used for local media file storage.
B
C ID—Button used to identify the device in a Control4 system.
C
D FACTORY RESTORE—Button used to reset the amplifier to factory
D
settings.
E IR—Two 3.5 mm IR ports. Used to control devices such as a TV or local
E
AVR in a Control4 system.
F AUDIO IN—Two audio inputs. One RCA stereo input, one
F
S/PDIF or digital coax input. Digital inputs accept stereo PCM audio
only.
G AUDIO OUT— Line-level audio output. One stereo RCA connection and
G
one mono RCA connection for subwoofer out.
H SPEAKER OUT—Phoenix-style connector for speakers.
H
I Power plug port—AC power connection 100V – 240V,
I
50 - 60 Hz.
FRONT PANEL
J Status LED—Logo LED shows power, boot, and device
J
status.
H I
J
