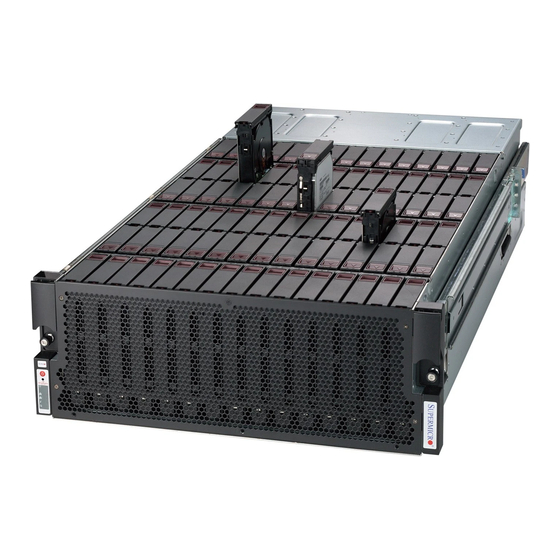

- Page 1 Confidential CSE-946ED-R2KJBOD Pre-defined zoning configuration 11/10/2015 Confidential © Supermicro 2015...
- Page 2 Confidential Introduction CSE-946ED-R2KJBOD supports flexible HDD zoning up to 4 host. User can assign any amount of disk to each zone using the Flexible Zoning Utility. User can also setup zoning with pre-defined configuration discussed in following pages. Please refer to CSE-946ED Flexible Zoning SOP 11092015.pdf for operating instruction for the Flexible Zoning Utility.
-
Page 3: Zones Configuration
Confidential 2 Zones configuration Zone #1 = 45 Disks Zone #2 = 45 Disks HDD 76 HDD 1 HDD 15 HDD 90 Zones assigned to external ports Zone #1 Zone #2... - Page 4 Confidential 3 Zones configuration Zone #1 = 30 Disks Zone #3 = 30 Disks Zone #2 = 30 Disks HDD 76 HDD 1 HDD 15 HDD 90 Zones assigned to external ports Zone #1, 2, 3 Zone #3 Zone #1 Zone #2...
- Page 5 Confidential 4 Zones configuration Zone #1 = 22 Disks Zone #3 = 23 Disks Zone #2 = 22 Disks Zone #4 = 23 Disks HDD 76 HDD 1 HDD 15 HDD 90 Zones assigned to external ports Zone #4 Zone #3 Zone #1 Zone #2...
