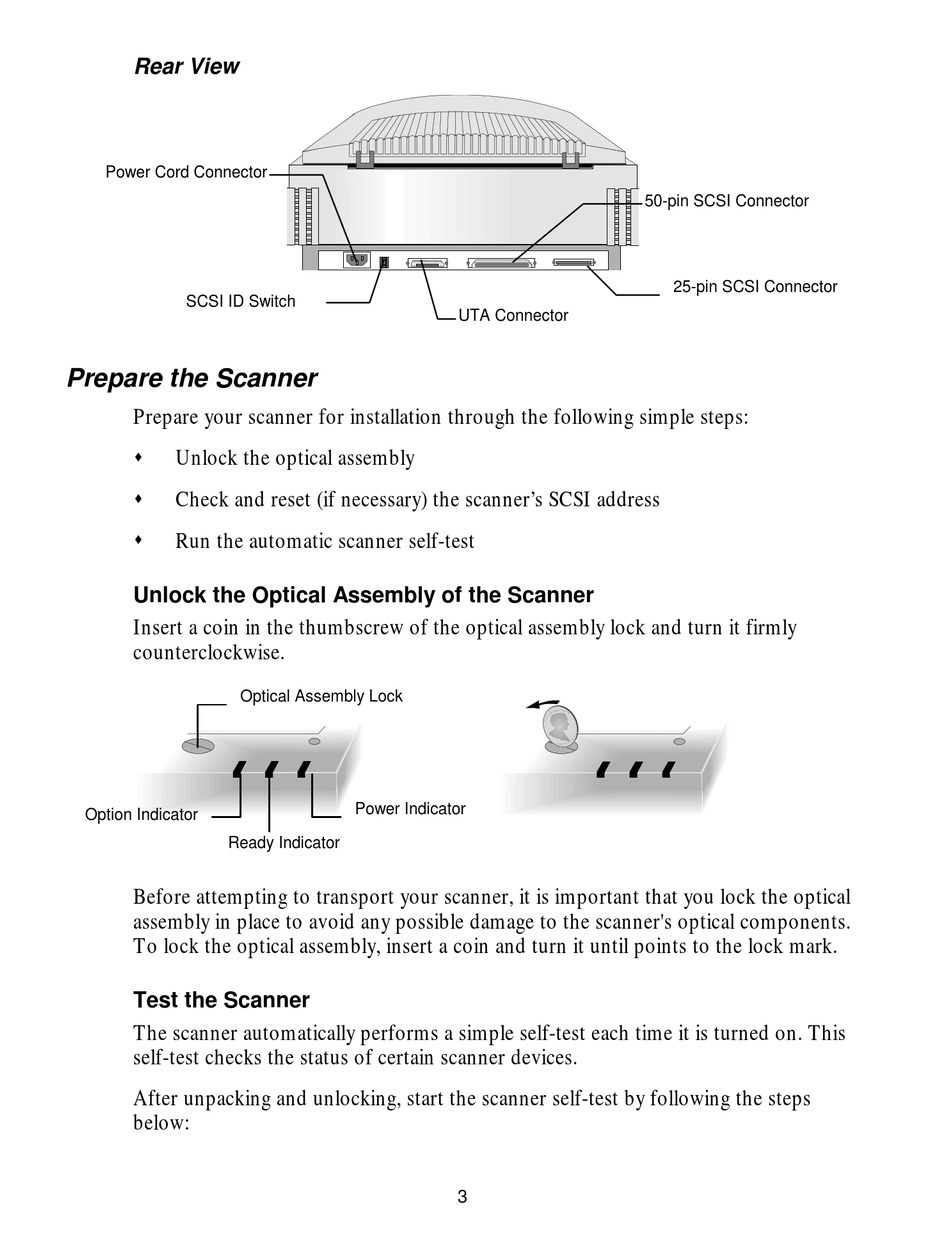

Prepare The Scanner; Unlock The Optical Assembly Of The Scanner; Test The Scanner - UMAX Technologies PowerLook PowerLook III Operation Manual

Rear View
Power Cord Connector
SCSI ID Switch

Prepare the Scanner

Prepare your scanner for installation through the following simple steps:
!
Unlock the optical assembly
!
Check and reset (if necessary) the scanner's SCSI address
!
Run the automatic scanner self-test

Unlock the Optical Assembly of the Scanner

Insert a coin in the thumbscrew of the optical assembly lock and turn it firmly
counterclockwise.
Option Indicator
Ready Indicator
Before attempting to transport your scanner, it is important that you lock the optical
assembly in place to avoid any possible damage to the scanner's optical components.
To lock the optical assembly, insert a coin and turn it until points to the lock mark.

Test the Scanner

The scanner automatically performs a simple self-test each time it is turned on. This
self-test checks the status of certain scanner devices.
After unpacking and unlocking, start the scanner self-test by following the steps
below:
Optical Assembly Lock
Power Indicator
UTA Connector
3
50-pin SCSI Connector
25-pin SCSI Connector
