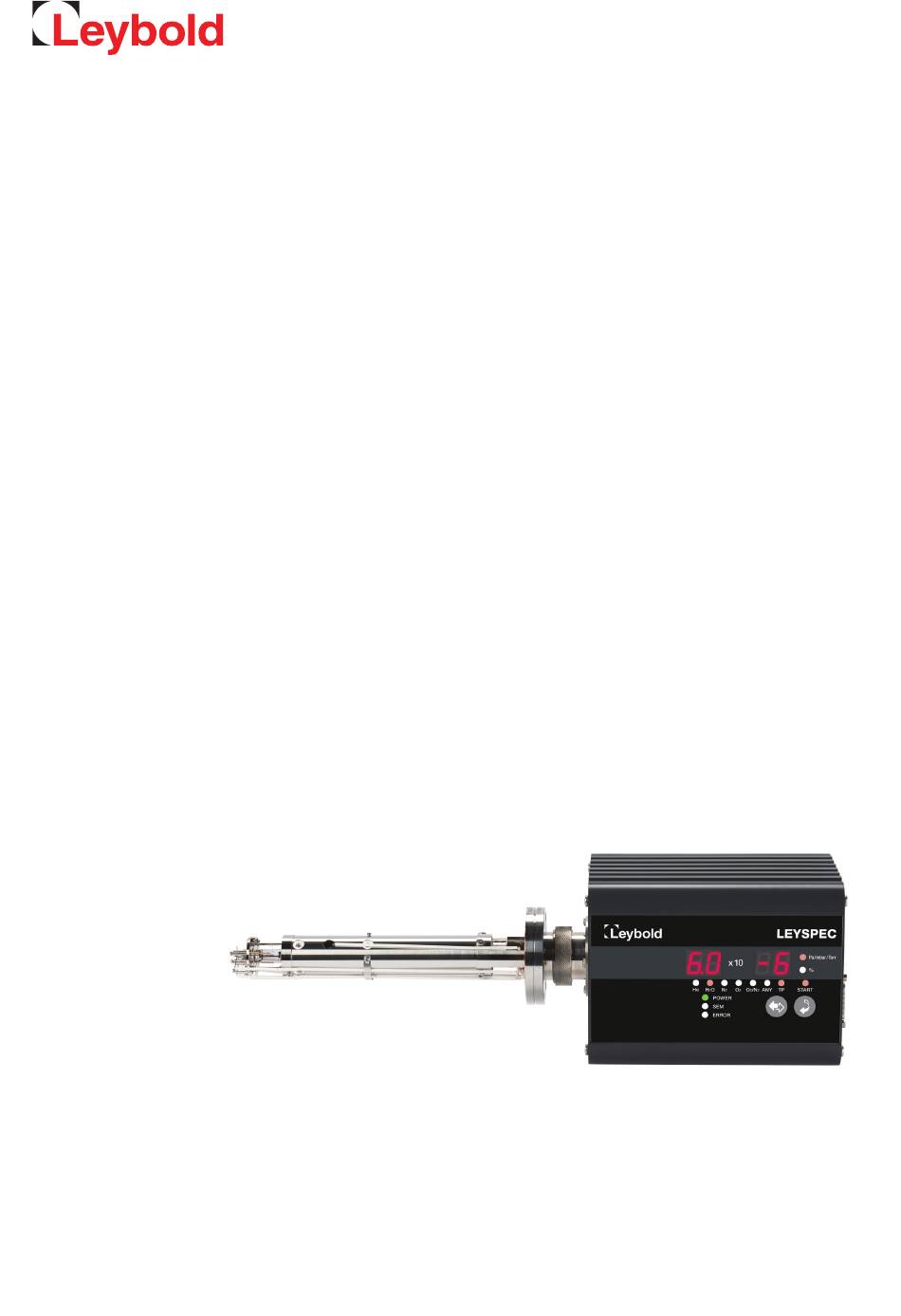

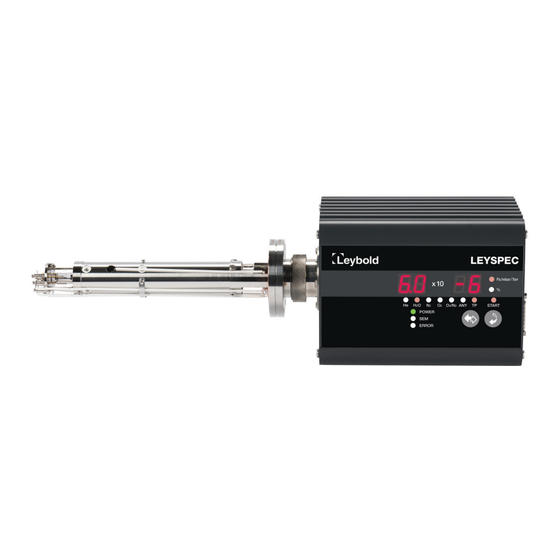

- Page 1 LEYSPEC Residual Gas Analyzer (RGA) Quick Start Manual 300781309_002_C0 Part Numbers 220010V01 220011V01 220012V01 220013V01 220020V01 220021V01...
-
Page 3: Table Of Contents
DIP switch Installation and connection Preliminary operation Installation Measurement Using a computer Using the sensor unit Warranty Items covered under warranty Duration of guarantee Scope Failures which void the warranty Other Certificate of decontamination 300781172_002_C0 - 01/2019 - © Leybold... -
Page 4: Introduction
The sensor unit is a 24 V d.c. drive. Prepare the AC/DC adaptor or 24 V a.c./d.c. power supply (more than 50 W). Confirm the model to be used. The model can be found on the sensor connector panel side of the sensor unit and flange. 300781309_002_C0 - 01/2019 - © Leybold... -
Page 5: Equipment Configuration
Equipment configuration Equipment configuration Standard equipment configuration Item Quantity Sensor unit 1 piece Sensor tube 1 piece Software and instruction manual CD 1 piece AC/DC adaptor 1 piece LAN cable 1 piece 300781309_002_C0 - 01/2019 - © Leybold... -
Page 6: Part Name And Component Function
Measurement start button Starts measurement. The upper orange LED indicates that measurement has (START) started. Measurement value units display The unit of measured partial pressure. For O2/N2 the display shows a percentage (%). 300781309_002_C0 - 01/2019 - © Leybold... -
Page 7: Rear Panel
DIP switch for SEM selection, IP address setting, the unit address setting and local/remote selection. Ethernet connector (LAN) RJ45 connector (8-pole 8-wire) for connecting the LAN cable DIP switch Set up the DIP switch numbers 1, 3, and 4 through 8 with the power supply OFF. 300781309_002_C0 - 01/2019 - © Leybold... - Page 8 To set the sensor address for this LEYSPEC Residual Gas Analysers unit. See the table below for switch settings. Address Address The following table shows the settings before shipment from the factory. LEYSPEC view100S/200S & LEYSPEC ultra 200S/300S LEYSPEC view100/200 300781309_002_C0 - 01/2019 - © Leybold...
- Page 9 : 192.168.250.13 Sensor11 : 192.168.250.21 Sensor4 : 192.168.250.14 Sensor12 : 192.168.250.22 Sensor5 : 192.168.250.15 Sensor13 : 192.168.250.23 Sensor6 : 192.168.250.16 Sensor14 : 192.168.250.24 Sensor7 : 192.168.250.17 Sensor15 : 192.168.250.25 Sensor8 : 192.168.250.18 Sensor16 : 192.168.250.26 300781309_002_C0 - 01/2019 - © Leybold...
-
Page 10: Installation And Connection
(SELV-E according to EN 61010). Keep enough room around the unit as to not cover panel vents and allow for sufficient heat dissipation. 2. Installing the analyzer tube 300781309_002_C0 - 01/2019 - © Leybold... - Page 11 CAUTION: Only ever tighten the knurled ring by hand. If you use tools, there is a risk of making it impossible to detach, breaking the connector, or damaging the internal wiring. 300781309_002_C0 - 01/2019 - © Leybold...
- Page 12 Power GND GND when +24 V d.c. power is supplied. Frame GND Frame ground. Connect it to the instrument frame. Connect the earth connection to Class A ground to prevent leakage currents. 300781309_002_C0 - 01/2019 - © Leybold...
- Page 13 Pin that supplies 24 Vd.c. power. (AC adaptor code; white) 3.2.4 LAN cable connection To connect a single sensor, select LAN. Connect the cable, as shown in the figure below. LAN connector LAN cable Sensor unit 300781309_002_C0 - 01/2019 - © Leybold...
- Page 14 Installation and connection 3.2.5 LAN cable connection To connect multiple sensors, select LAN. Set the address and LAN terminator. Connect the cable. LAN connector LAN cable Sensor unit Switching hub Sensor unit (maximum 16 units) 300781309_002_C0 - 01/2019 - © Leybold...
-
Page 15: Measurement
LEYSPEC Residual Gas Analysers might work because of the emitted gas of the filament. In that case, confirm operating pressure again and turn on the filament several times to reduce the emitted gas. 300781309_002_C0 - 01/2019 - © Leybold... -
Page 16: Using The Sensor Unit
10.Turn off the "FIL" button and then turn off the analyzer tube filament. 11.Exit the software when measurement is completed. Using the sensor unit Refer to the operation manual supplied on the software installation CD. 300781309_002_C0 - 01/2019 - © Leybold... -
Page 17: Warranty
Other 1. For questions and consultation, the customer can check the model and serial number and ask the local supplier representative. 2. The content of this document is subject to change without notice. 300781309_002_C0 - 01/2019 - © Leybold... -
Page 18: Certificate Of Decontamination
Refer to the CD. WARNING: Read this instruction manual before installing, operating, inspecting, or servicing this product to familiarize yourself with safety precautions, specifications and operations. 300781309_002_C0 - 01/2019 - © Leybold... - Page 20 Sales and Service Germany Great Britain America Leybold Japan Co., Ltd. Tsukuba Technical Service Center 1959, Kami-yokoba Leybold UK LTD. Leybold GmbH Tsukuba-shi, Ibaraki-shi 305-0854 Unit 9 Bonner Strasse 498 Japan Silverglade Business Park D-50968 Cologne Leybold USA Inc. Service:...
