Aiphone TD-24H/B Wiring Diagrams

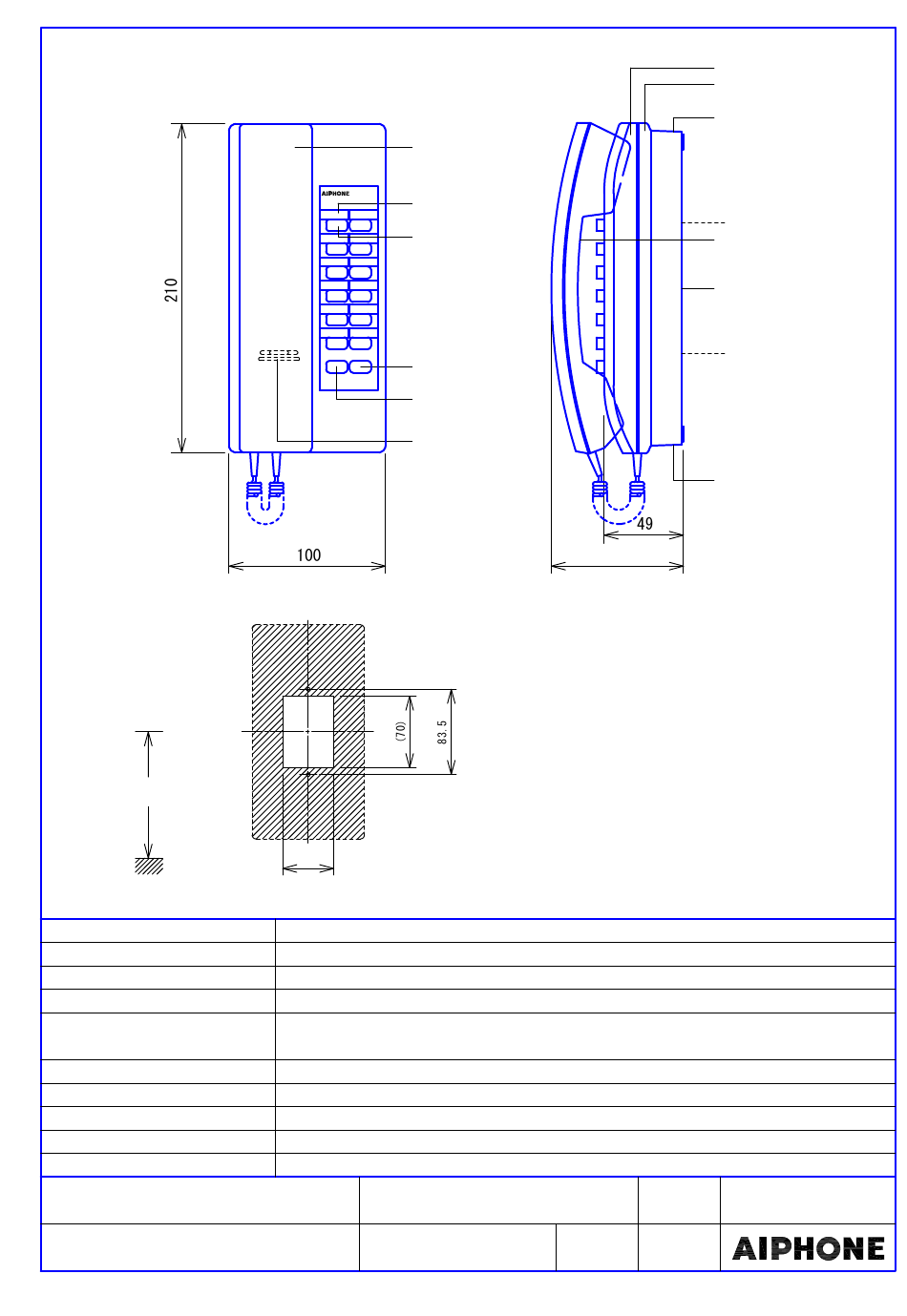

■PRODUCT DRAWING
●MOUNTING
Unit center
Ht.=1,300
■SPECIFICATIONS
Power source
Current consumption
Type of communication
Station capacity
Call tone
Mounting
Electrical box
Housing
Weight
Unit color
D E S C R I P T I O N

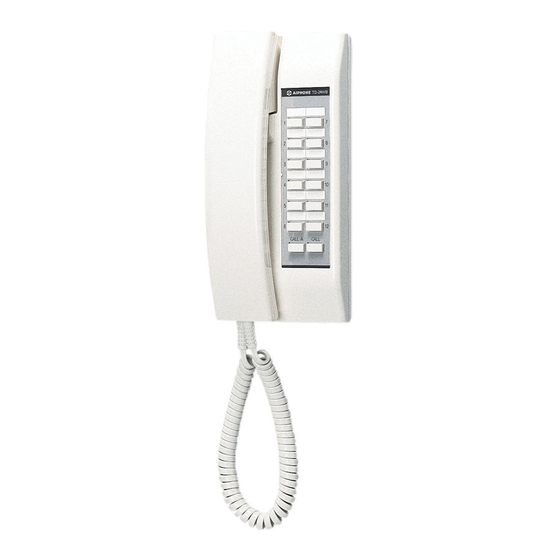

MASTER STATION (24-call)
M O D E L N O .
TD-24H/B
Handset
TD-24H
Directory card
A A
1 7
Station selector
A A
button
2 8
A A
(1～12, 1A～12A)
3 9
A A
4
10
A A
5 11
A A
6
12
CALL A CALL
CALL button
(Station 1～12)
CALL A button
(Station 1A～12A)
Call tone sounder
Unit center
(50)
50(W) x 70(H): Opening cut out on the wall.
DC 12V (Use a Power supply PS-1225S/UL)
75mA (max.)
Handset simultaneous communication
Up to 24 Master or Sub stations
Electronic tone (from other Master or Sub station).
Intermittent electronic tone, slow or fast (from Door station)
Desk-top or wall-mount. For desk-top use, install a Terminal box (TDW-24/A).
Single-gang box
ABS plastic
520g (approx.)
Snow white & gray, 2-tone
F I G . N A M E
PRODUCT/SPECIFICATIONS
F I G . N O .
44794321-1-3
Front case
Chassis (separable with
terminal section inside)
Cable inlet
PAGE button
Cable inlet
Cable inlet
83
U N I T D A T E
mm
P A G E R E V I S I O N
1/3 3
19 December, 2016
4319E
