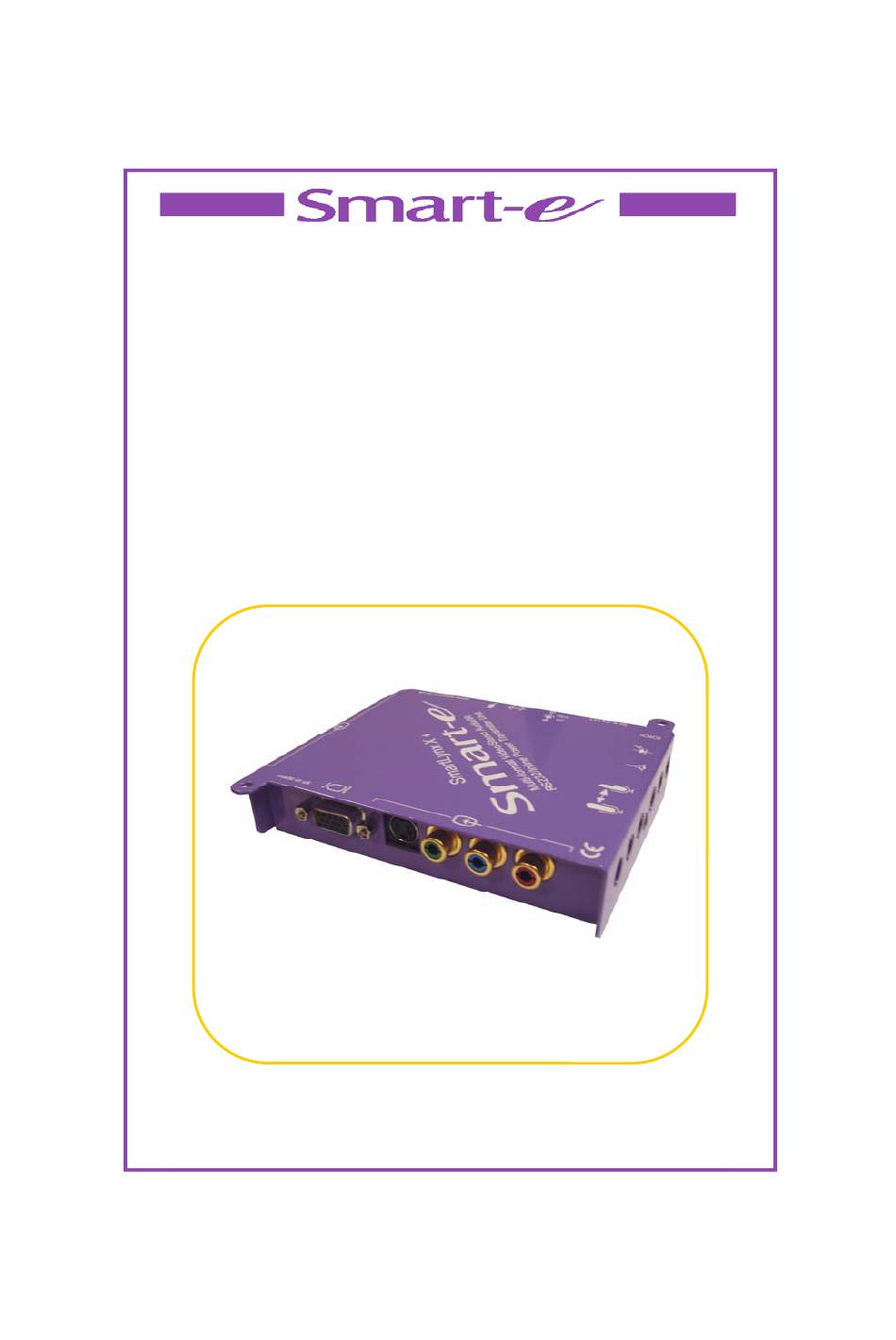

- Page 1 The Clearer Picture SmartLynx X+ Cat 5 AV Extender Model No: SLX-211/212 User Guide Part No: SLX211/212UG...
- Page 2 Smart-e will not be liable for errors contained herein or for inciden- tal or consequential damages in connection with the furnishing, per- formance or use of this material.
-
Page 3: Table Of Contents
Table of Contents Introducing SmartLynx ..........1 What ‘s in the box ............1 What is SmartLynx ............2 Why is SmartLynx necessary ........2 How does SmartLynx work........... 2 Installation and Operation ...........3 Transmitter ..............3 Receiver..............6 SLX-RX212 ..............10 Appendix ..............12 Specifications.............. -
Page 4: Introducing Smartlynx
If any of the accessories listed below are missing please contact the Smart-e dealer you purchased products from or contact Smart-e customer support at:... -
Page 5: What Is Smartlynx
SDTV How does SmartLynx work? The Smart-e SmartLynx is a transmitter and receiver pair designed to extend video, stereo audio and IR/RS232 signals over (UTP) unshielded twisted pair category 5 (Cat 5) cabling. They are supplied with a UK power supply and consist of: a transmitter with a video input (connectors vary by model), an audio input and a Cat 5 output and;... -
Page 6: Installation And Operation
Smart-e (UK) Ltd, Ranmore Manor, Ranmore Common, Dorking, Surrey, RH5 6SX Page 3 +44 (0) 1483 283365 Fax: +44 (0) 1483 281511, www.smart-e.co.uk... -
Page 7: Transmitter
3. Setting Jumpers on Transmitter to correct position The diagram below details how to correctly set the jumpers for the required video type. Smart-e (UK) Ltd, Ranmore Manor, Ranmore Common, Dorking, Surrey, RH5 6SX Page 4 +44 (0) 1483 283365 Fax: +44 (0) 1483 281511, www.smart-e.co.uk... - Page 8 Capacitance: 14 pf/ft (46.2 pf/m) Conductor Gauge: 24 AWG Impedance: 100 +/- 15 ohms 4 - Pair Smart-e (UK) Ltd, Ranmore Manor, Ranmore Common, Dorking, Surrey, RH5 6SX Page 5 +44 (0) 1483 283365 Fax: +44 (0) 1483 281511, www.smart-e.co.uk...
-
Page 9: Receiver
If RS232 control is required then connect to the display via the 3.5mm minijack on the receiver using a CAB-J19-1M. These would be another HD15 on the SLX-RX212 Smart-e (UK) Ltd, Ranmore Manor, Ranmore Common, Dorking, Surrey, RH5 6SX Page 6 +44 (0) 1483 283365 Fax: +44 (0) 1483 281511, www.smart-e.co.uk... - Page 10 Please note: connecting the IR ‘eye’ will prevent the return RS232 path from the display Smart-e (UK) Ltd, Ranmore Manor, Ranmore Common, Dorking, Surrey, RH5 6SX Page 7 +44 (0) 1483 283365 Fax: +44 (0) 1483 281511, www.smart-e.co.uk...
- Page 11 Although all 3 colours can be delayed it is only usually necessary to delay 2 of the colours to achieve skew error compensation. Smart-e (UK) Ltd, Ranmore Manor, Ranmore Common, Dorking, Surrey, RH5 6SX Page 8 +44 (0) 1483 283365 Fax: +44 (0) 1483 281511, www.smart-e.co.uk...
- Page 12 Correct Skew adjustment. In this example colours are in alignment and hence correctly equal- ized. Smart-e (UK) Ltd, Ranmore Manor, Ranmore Common, Dorking, Surrey, RH5 6SX Page 9 +44 (0) 1483 283365 Fax: +44 (0) 1483 281511, www.smart-e.co.uk...
-
Page 13: Slx-Rx212
HD15s by altering the jumpers on the base of the unit as shown in the diagram below. Base of SLX-RX212 with Jumper locations Smart-e (UK) Ltd, Ranmore Manor, Ranmore Common, Dorking, Surrey, RH5 6SX Page 10 +44 (0) 1483 283365 Fax: +44 (0) 1483 281511, www.smart-e.co.uk... - Page 14 NB. Always use screws with heads larger than the holes. ‘MOUNTING-HOLES’ ‘MOUNTING-HOLES’ Smart-e (UK) Ltd, Ranmore Manor, Ranmore Common, Dorking, Surrey, RH5 6SX Page 11 +44 (0) 1483 283365 Fax: +44 (0) 1483 281511, www.smart-e.co.uk...
-
Page 15: Specifications
120 x 94 x 23 mm Receiver 120 x 94 x 23 mm Weight Transmitter 0.2kg Receiver 0.2kg Smart-e (UK) Ltd, Ranmore Manor, Ranmore Common, Dorking, Surrey, RH5 6SX Page 12 +44 (0) 1483 283365 Fax: +44 (0) 1483 281511, www.smart-e.co.uk... -
Page 16: Troubleshooting
Is the audio input level too high? The audio level should be set to line level (0dB or 700mV peak to peak) to prevent interference. Smart-e (UK) Ltd, Ranmore Manor, Ranmore Common, Dorking, Surrey, RH5 6SX Page 13 +44 (0) 1483 283365 Fax: +44 (0) 1483 281511, www.smart-e.co.uk... -
Page 17: Appendix
Customer is responsible for maintaining proof of date of purchase. Smart-e warranty covers only those defects which arise as a result of nor- mal use of the product, and do not apply to any: a. Improper or inadequate maintenance or modifications b. -
Page 18: Partial Product List
SmartNet-X+ SNX-8x8+ 8 x 8 Distribution Matrix SmartNet-X+ SNX-16x16+ 16 x 16 Distribution Matrix (Up to 256 x 256) Smart-e (UK) Ltd, Ranmore Manor, Ranmore Common, Dorking, Surrey, RH5 6SX +44 (0) 1483 283365 Fax: +44 (0) 1483 281511, www.smart-e.co.uk...
