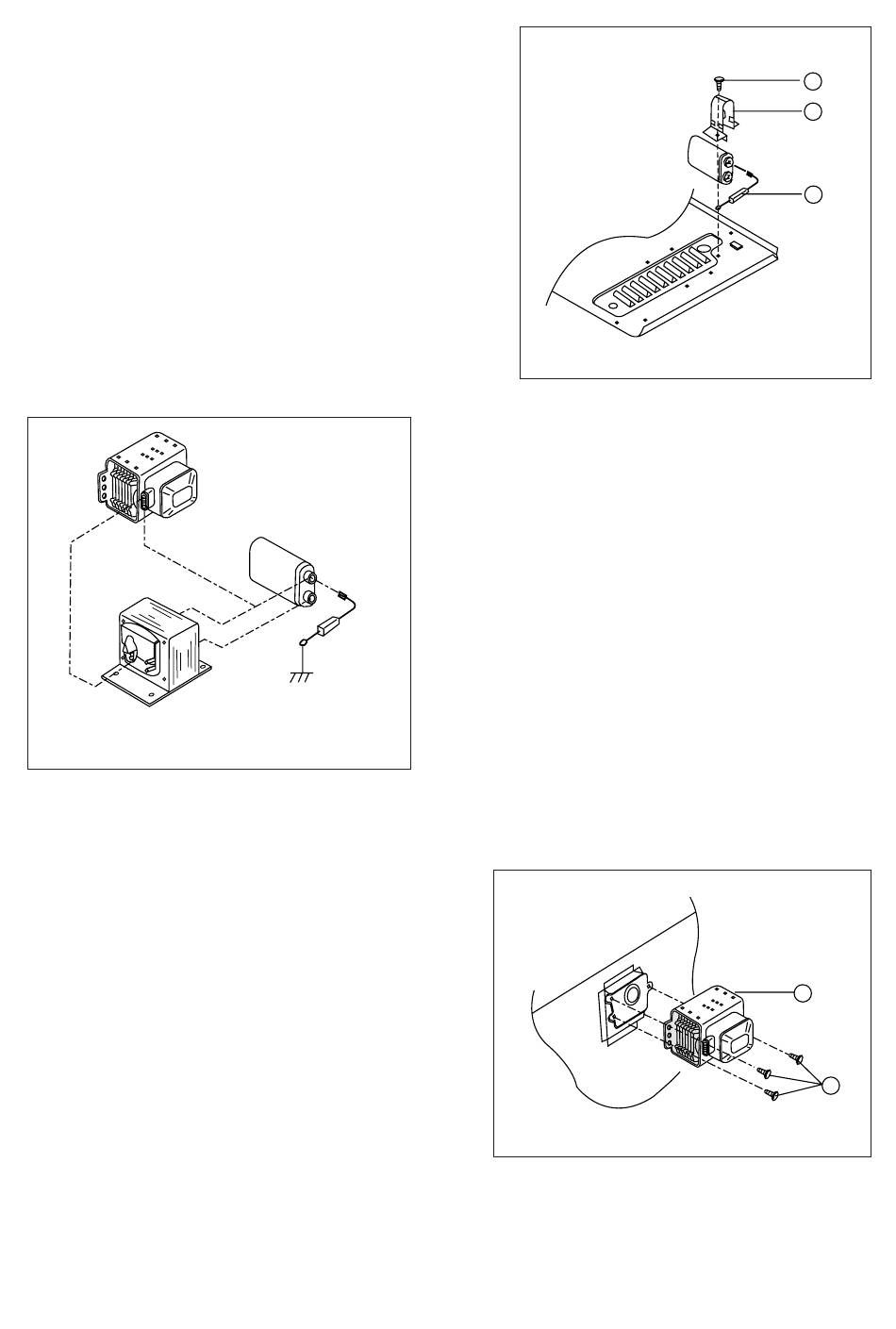

6. To remove high voltage capacitor.
(1) Remove a screw ¤ which secure the grounding ring
terminal of the H.V. diode ¤Ł and the capacitor holder ¤Ø .
(2) Remove the H.V. diode ¤Ł from the capacitor holder ¤Ø .
(3) Reverse the above steps for reassembly.
High voltage circuit wiring
H.V. TRANSFORMER
7. To remove magnetron.
(1) Remove three screws ¤ which secure the
magnetron ¤Ł .
(2) Remove the magnetron ¤Ł .
(3) Reverse the above steps for reassembly.
MAGNETRON
H.V. CAPACITOR
H.V.
DIODE
