AEMC instruments MN134 User Manual

AC Current Probe
Model MN134
User Manual
DESCRIPTION

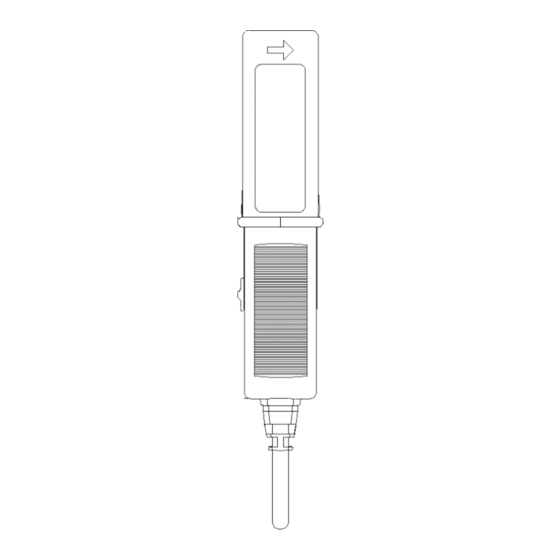

The AEMC Instruments Model MN134 (Cat. #2129.22) is a small, compact AC current
®
probe and is designed to meet the most stringent demands in industry and electrical
contracting. This instrument meets the latest safety and performance standards. The probe
has a measurement range up to 10 Arms which makes it a perfect tool for measurement
with DMMs and recorders. The Model MN134 is compatible with any AC multimeter, or other
voltage measurement instrument with an input impedance greater than 1 MΩ. To achieve the
stated accuracy, use the probe with a voltmeter with an accuracy of 0.75 % or better.
WARNING
These safety warnings are provided to ensure the safety of personnel and proper operation of the
instrument.
• Read the instruction manual completely and follow all the safety information before attempting
to use or service this instrument.
• Use caution on any circuit: high voltages and currents may be present and may pose a shock
hazard.
• Read the Safety Specifications section prior to using the current probe. Never exceed the
maximum voltage ratings given.
• Safety is the responsibility of the operator.
• ALWAYS connect the current probe to the display device before clamping the probe onto the
sample being tested.
• ALWAYS inspect the instrument, probe, probe cable, and output terminals prior to use.
Replace any defective parts immediately.
• NEVER use the current probe on electrical conductors rated above 600 V in overvoltage
category III (CAT III). Use extreme caution when clamping around bare conductors or bus bars.
INTERNATIONAL ELECTRICAL SYMBOLS
This symbol signifies that the current probe is protected by double or reinforced insu-
lation. Use only factory-specified replacement parts when servicing the instrument.
This symbol signifies CAUTION! and requests that the user refer to the user
manual before using the instrument.
This symbol signifies that this is a type A current sensor and that application near
and removal from HAZARDOUS LIVE conductors is permitted.
This symbol signifies a voltage limiting circuit.
DEFINITION OF MEASUREMENT CATEGORIES (CAT)
CAT IV: For measurements performed at the primary electrical supply (< 1000 V), such as
primary overcurrent protection devices, ripple control units, or meters.
CAT III: For measurements performed in the building installation at the distribution level,
such as hardwired equipment in fixed installation or circuit breakers.
CAT II: For measurements performed on circuits directly connected to the electrical
distribution system, such as measurements on household appliances or portable tools.
