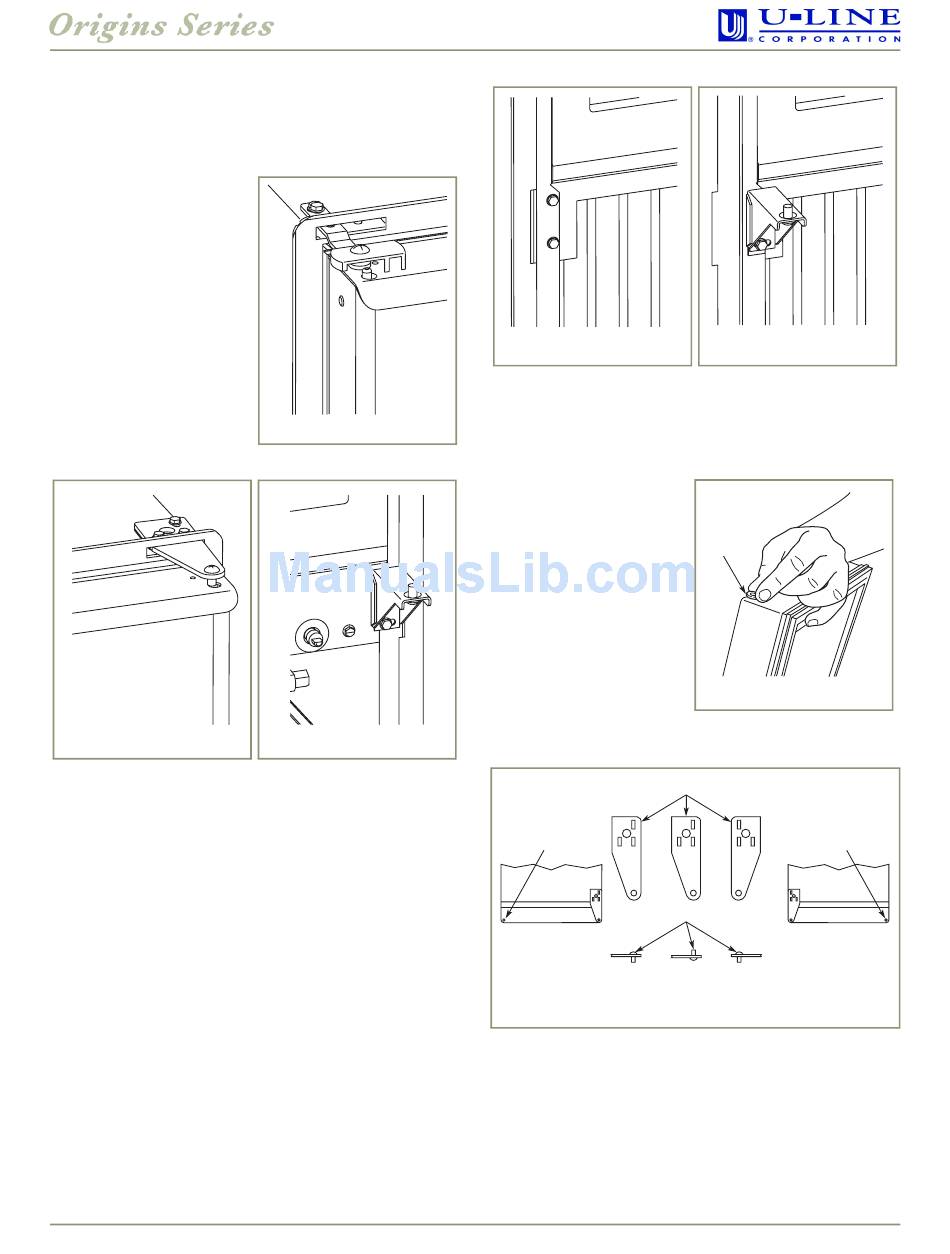

Reversing the Door

All units may be left- or right-hand opening.
To reverse the door:
1. Remove travel pin from
cabinet (two screws).
See Figure 4. Slide
assembly through
flange and set aside
to be used later.
2. Remove top hinge from
cabinet (three screws).
See Figure 5. Hold door
to keep it from falling.
Slide hinge through
flange.
3. Lift the door off the
bottom hinge.
Figure 5
4. Remove bottom hinge from cabinet (two screws). See
Figure 6. Remove screws on opposite side of cabinet
(Figure 7). Note that there may be a nut behind one or
both screws on either side.
02/2005
Figure 4
Figure 6
SP18 Ice Maker
Figure 7
5. Install hinge on opposite side, bottom of cabinet. See
Figure 8. Replace nut on back side where installed.
Align hinge outer edge with cabinet before tightening
screws.
6. Relocate plastic spacer/
bushing on bottom of
door to opposite side,
and place door on
bottom hinge pin. See
Figure 9. Clean out
bushing hole in door
bottom with a
screwdriver if necessary.
7. Remove plastic travel
pin from door handle
and relocate on
opposite side. See
Figure 10.
Travel
Pin Hole
Right Side
Door Swing
Right Side
Hinge
Figure 10
8. Remove pivot screw from top hinge, invert screw and
reinstall pivot screw in top hinge. See Figure 10.
5
Figure 8
Bushing
Figure 9
Hinge
Travel
Pin Hole
Screw
Left Side
Door Swing
Invert Invert
Screw Hinge
