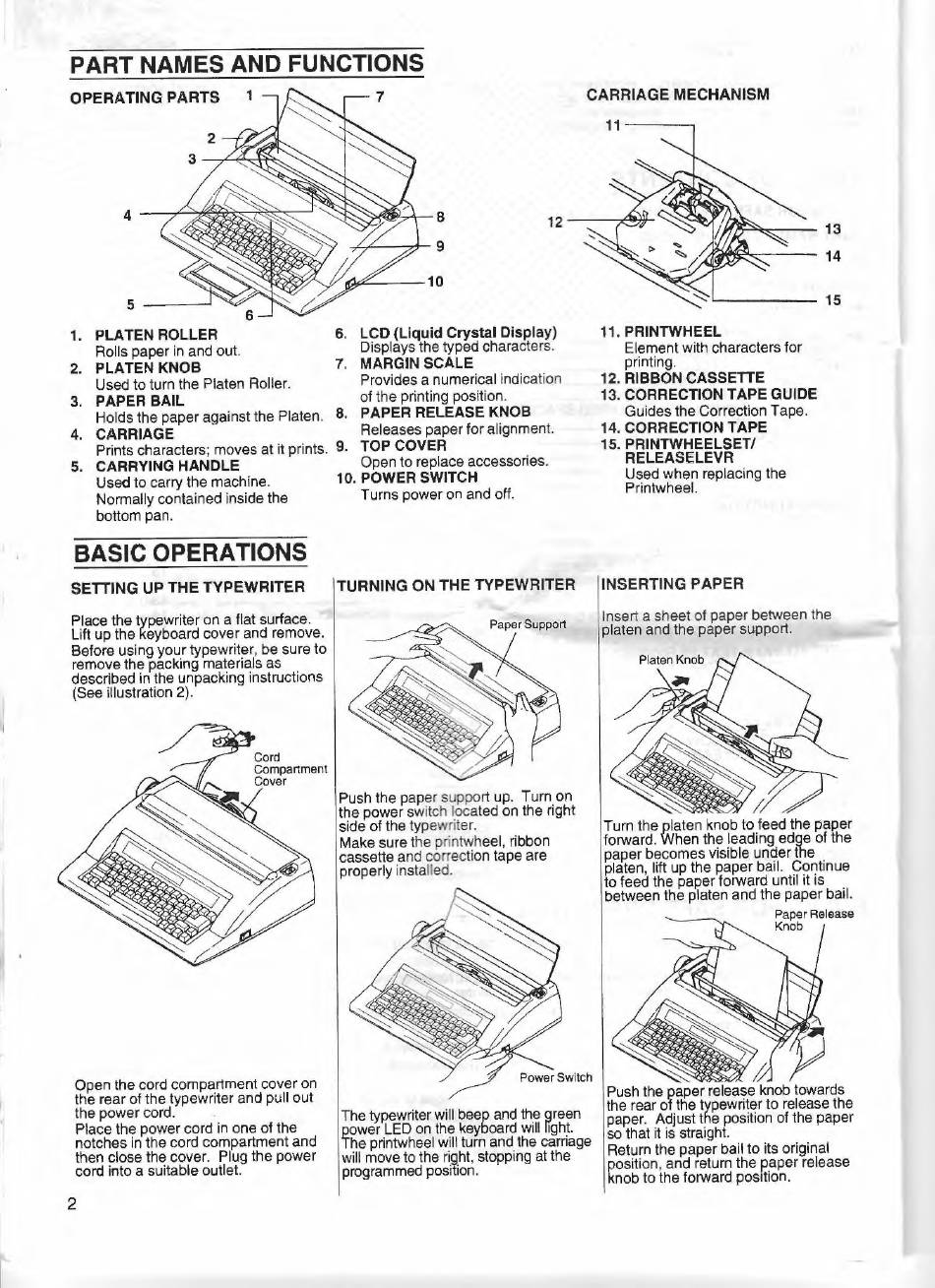

PART NAMES AND FUNCTIONS
OPERATING PARTS
CARRIAGE
MECHANISM
1. PLATEN ROLLER
Rolls paper in and out.
2. PLATEN KNOB
Used to turn the Platen
Roller.
3. PAPER BAIL
~~..!,.--8
..,£...,,:__---,~
9
6. LCD (Liquid Crystal Display)
Displays the typed
characters.
7. MARGIN
SCALE
Provides a numerical
indication
of
the printing
position
.
Holds
the
paper
against the Platen.
8.
PAPER RELEASE KNOB
Releases paper for
alignment.
TOP
COVER
4. CARRIAGE
Prints
characters; moves at
it
prints.
9.
Open to replace
accessories.
5. CARRYING HANDLE
Used
to
carry the
machine.
Normally contained inside the
bottom pan.
BASIC
OPERATIONS
SETTING UP THE TYPEWRITER
Place
the typewriter on a flat surface.
Lift
up the keyboard cover and remove.
Before using your typewriter, be sure to
remove
the
packing materials as
described
in the
unpacking
instructions
(See illustration
2).
Open the
cord
compartment cover
on
the rear
of
the typewriter
and
pull
out
the
power
cord.
.
Place
the
power
cord
in one of
the
notches
in the
cord
compartment
and
then close the
cover.
Plug the power
cord into a
suitable
outlet.
2
10.
POWER SWITCH
Turns power
on
and
off.
TURNING ON THE TYPEWRITER
Paper
Support
Push the
paper
support
up.
Turn
on
the power
switch
located on
the right
side of the
typewriter.
Make sure
the
printwheel,
ribbon
cassette
and
correction
tape are
properly
installed.
The
typewriter
will beep
and
the
green
power LED
on the
keyboard will fight.
The
printwheel
will
turn and the
carriage
will
move
to
the
right,
stopping
at the
programmed
position.
'Jlf
/'l'--""'t:,,:----
13
~~~--
14
11.
PRINTWHEEL
Element
with
characters
for
printing.
12. RIBBON CASSETTE
13. CORRECTION TAPE GUIDE
Guides
the
Correction Tape.
14.
CORRECTION
TAPE
15.
PRINTWHEELSET/
RELEASELEVR
Used when replacing the
Printwheel.
INSERTING PAPER
15
Insert
a
sheet
of
paper between
the
platen
and the paper support.
~
Turn the platen knob to
feed
the paper
forward.
When
the
leading
edge of the
paper becomes visible under the
platen,
lift up the paper bail. Continue
to
feed
the paper forward
until
it
is
between the
platen and
the
paper
bail.
~
Paper
Release
Knob
Push the
paper release
knob towards
the
rear of the typewriter to
release the
paper. Adjust the position
of
the
paper
so
that
it
is
straight.
Return the
paper
bail to
its
original
position, and
return the paper
release
knob
to the
forward
position.
