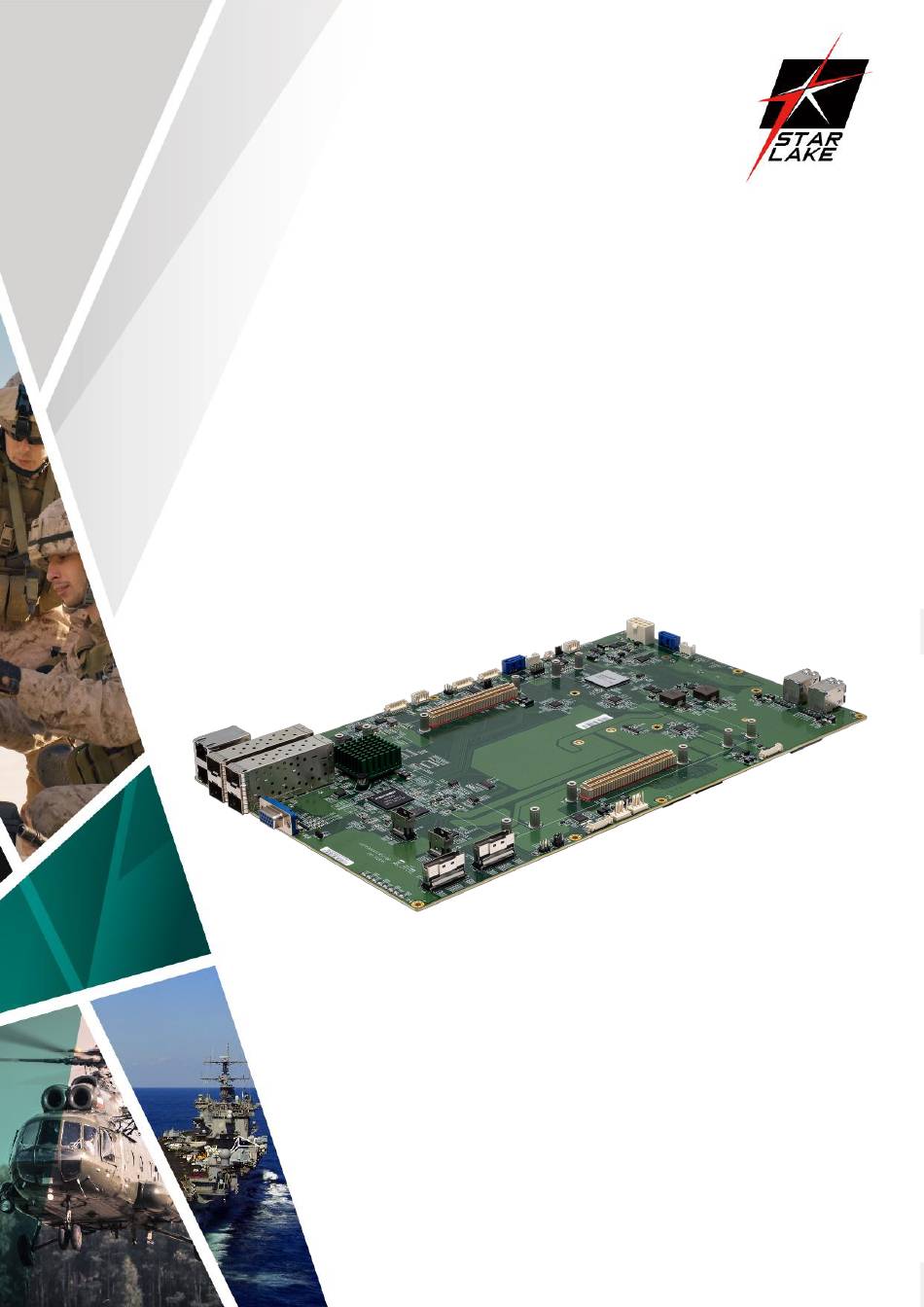

- Page 1 SK518 COH-HPC Server Size D Carrier Board with PCIe/104, Slim-SAS Express Expansions Extreme temperature -40°C to 85°C User’s Manual Revision Date: Jan 18 2024...
-
Page 2: Safety Information
SK518 User’s Manual Revision Date: Jan 18 2024 Safety Information Electrical safety To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. -
Page 3: Revision History
SK518 User’s Manual Revision Date: Jan 18 2024 Revision History Revision Date (yyyy/mm/dd) Changes V1.0 2024.1.18 Initial Release... -
Page 4: Table Of Contents
SK518 User’s Manual Revision Date: Jan 18 2024 Table of Contents Safety Information ............................ 1 Electrical safety ............................1 Operation safety ............................. 1 Statement ............................... 1 Revision History............................2 Chapter 1: Product Information ........................ 5 1.1 Key Feature ............................5 1.2 Board Diagram .......................... - Page 5 SK518 User’s Manual Revision Date: Jan 18 2024 MPCIE1: Mini PCIe Socket ........................13 SIM1: 6 pin SIM Socket ........................13 SATA1,2 : 7 Pin DIP SATA Connector ....................14 SATA_PWR1,2 : 4 Pin SATA Power Connector ..................14 SAS1,2 : Slim SAS(x4) PCIe Gen4 Extension Connector ..............14 SAS3,4 : Slim SAS(x8) PCIe Gen4 Extension Connector ..............15...
-
Page 6: Chapter 1: Product Information
SK518 User’s Manual Revision Date: Jan 18 2024 Chapter 1: Product Information 1.1 Key Feature System Ampere Altra : Up to 80 Arm-based cores at 175W TDP Intel ICE-Lake HCC : Up to 20 cores at 118W TDP Memory type... - Page 7 SK518 User’s Manual Revision Date: Jan 18 2024 DIDO 1(4in/4out) SATAIII SATA Power Serial 2 (RS232) SM BUS/I2C BUS System Fan CPU Fan Front Panel Control Power Connector 1(2 x 4-pin terminal block) Mechanical and Environment Form Factor COM-HPC Carrier Server Size D...
-
Page 8: Board Diagram
SK518 User’s Manual Revision Date: Jan 18 2024 1.2 Board Diagram... -
Page 9: Dimension
SK518 User’s Manual Revision Date: Jan 18 2024 1.3 Dimension 1.4 Appearance... -
Page 10: Chapter 2: Jumper And Connector Setting
SK518 User’s Manual Revision Date: Jan 18 2024 Chapter 2: Jumper and Connector setting 2.1 List of Jumpers / Internal Function Connector & Socket... -
Page 11: Jumper Setting
SK518 User’s Manual Revision Date: Jan 18 2024 2.2 Jumper Setting Clear CMOS Function Setting Default Clear CMOS JP1 : COM1 Pin 9 Function Select : 1A Function Setting Open JP2 : COM2 Pin 9 Function Select : 1A Function... -
Page 12: Connetor Pin Assignment
SK518 User’s Manual Revision Date: Jan 18 2024 2.3 Connetor Pin Assignment DC_IN : DC Input Power Connector (12V/20A) Signal Signal +12VSB +12VSB +12VSB +12VSB USB1,2 : 2 Port USB3.0 Type-A Connector Signal Follow Standard 10GSFP1,2 : 2 Port 10G SFP+ LAN... -
Page 13: Lan1 : 2 Port Gbe Rj-45 Connector
SK518 User’s Manual Revision Date: Jan 18 2024 LAN1 : 2 Port GbE RJ-45 Connector Signal Follow Standard P.S.: LAN LED Define: Yellow : Active 1000M : Orange 100M : Green VGA1 : Slim D-SUB 15 Pin VGA Connector Signal Follow Standard... -
Page 14: Cpu Module Connector
SK518 User’s Manual Revision Date: Jan 18 2024 CPU Module Connector Signal Follow Standard M2P1,2 : M.2 M-key Socket 2280 for SSD Signal Follow Standard MPCIE1: Mini PCIe Socket Signal Follow Standard SIM1: 6 pin SIM Socket Signal Follow Standard... -
Page 15: Sata1,2 : 7 Pin Dip Sata Connector
SK518 User’s Manual Revision Date: Jan 18 2024 SATA1,2 : 7 Pin DIP SATA Connector Signal Follow Standard SATA_PWR1,2 : 4 Pin SATA Power Connector Signal 12V/1A 5V/1A SAS1,2 : Slim SAS(x4) PCIe Gen4 Extension Connector Signal Signal PERp0 PETp0... -
Page 16: Sas3,4 : Slim Sas(X8) Pcie Gen4 Extension Connector
SK518 User’s Manual Revision Date: Jan 18 2024 PERp3 PETp3 PERn3 PETn3 SAS3,4 : Slim SAS(x8) PCIe Gen4 Extension Connector Signal Signal PERp0 PETp0 PERn0 PETn0 PERp1 PETp1 PERn1 PETn1 BP_TYPEA(VSP) SMCLK WAKE# SMDAT REFCLK1A+ PERST# REFCLK1A- CPRSNT1A# PERp2 PETp2... -
Page 17: Com1,2 : Rs232/422/485 Serial Port Connector
SK518 User’s Manual Revision Date: Jan 18 2024 PERp6 PETp6 PERn6 PETn6 PERp7 PETp7 PERn7 PETn7 COM1,2 : RS232/422/485 Serial Port Connector Pin 1 Signal(RS232) Signal(RS422) Signal(RS485) 5V/1A 5V/1A 5V/1A P9SEL/1A P9SEL/1A P9SEL/1A N.C. N.C. N.C. N.C. N.C. N.C. Data+ N.C. -
Page 18: Espi1 : Espi Connector
SK518 User’s Manual Revision Date: Jan 18 2024 eSPI1 : eSPI Connector Pin 1 Signal Signal ESPI_ALERT ESPI_CS0 ESPI_IO0 ESPI_IO1 ESPI_IO2 ESPI_IO3 ESPI_RST ESPI_CLK. 1.8V/0.3A JUSB1 : 2 Port USB 2.0 Internal Connector Pin 1 Signal Signal USB_VCC USB_N1 USB_P1... -
Page 19: Fan1,2 : Cpu/System Fan Connector
SK518 User’s Manual Revision Date: Jan 18 2024 FAN1,2 : CPU/System FAN Connector Signal FAN_PWM FAN_IO 12V/1A SMB1 : SMBus Link(2.0mm Box Header) Signal 3.3V/1A SMB_DATA SMB_CLK SMB2 : For Debug Card(2.0mm Box Header) Signal 3.3V/1A SMB_DATA SMB_CLK PCIe104 : PCIe104 Type2 Connector... -
Page 20: Bat1 : Cmos 3.3V Battery Input(1.25Mm Box Header)
SK518 User’s Manual Revision Date: Jan 18 2024 BAT1 : CMOS 3.3V Battery Input(1.25mm BOX header) Signal 3.3V Function LED Function Input Power LED 3.3V LED 5V LED...
