FIBERME Communications LLC.
Configuring FAG410X with Grandstream UCM620X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FAG410 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fiberme FAG410 Series

Summary of Contents for Fiberme FAG410 Series

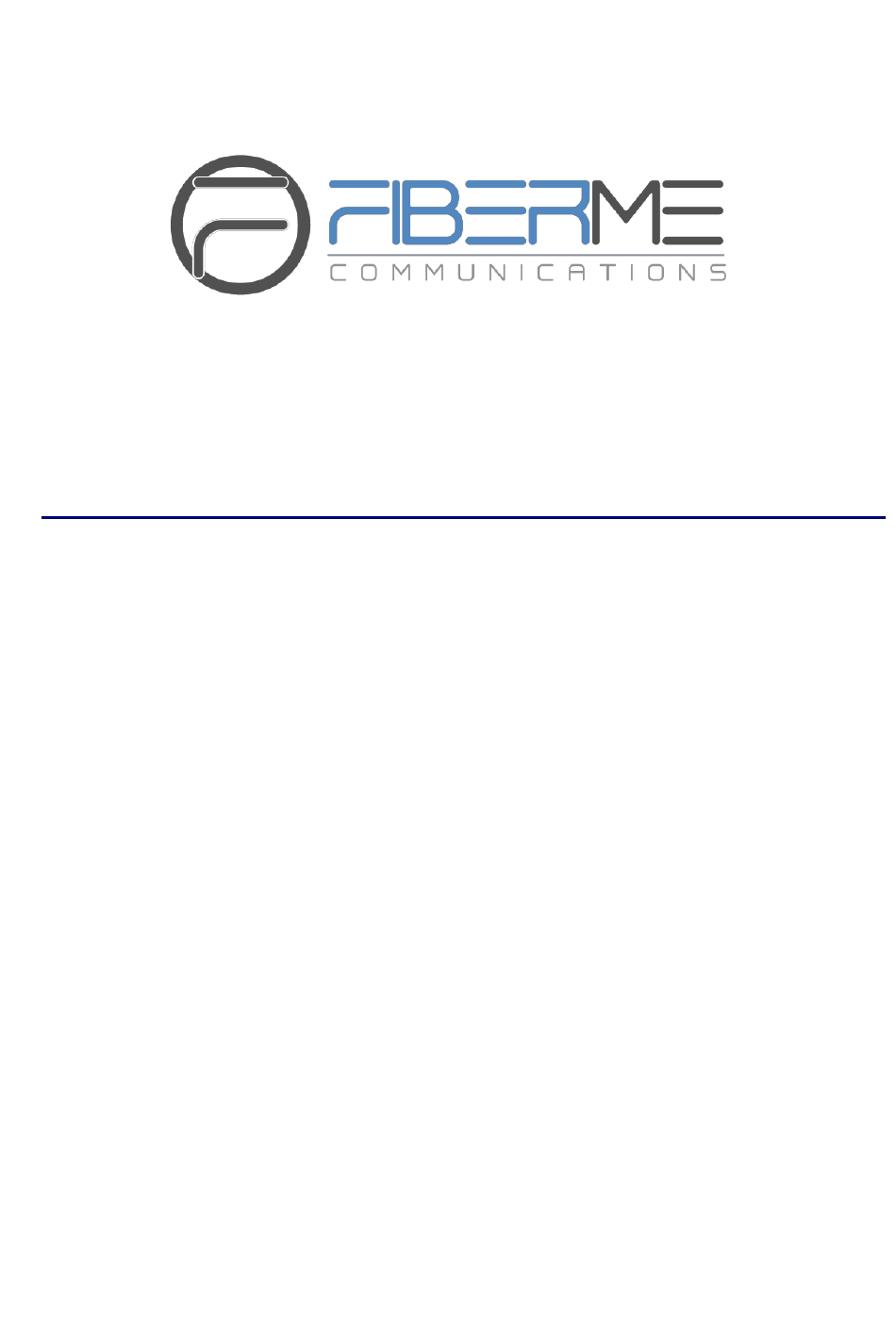

  • Page 1 FIBERME Communications LLC. Configuring FAG410X with Grandstream UCM620X...

  • Page 2: Table Of Contents

    Table of Contents OVERVIEW ......................... 3 CONNECT UCM620X TO FAG410X USING PEER SIP TRUNK ........4 Create IVR On UCM620X ............................4 Create Peer SIP TRUNK On UCM620X ......................5 Configure Outbound Rule On UCM620X ........................ 5 Configure Inbound Rule On UCM620X ........................6 Connect FAG410X with UCM620X ..........................
  • Page 3 Table of Figures Figure 1: Create IVR 7000 on the UCM620X ......................4 Figure 2: Create Peer SIP Trunk on the UCM620X ....................5 Figure 3: Configure Outbound Rule on the UCM620X .....................6 Figure 4: Configure Inbound Rule on UCM620X .......................7 Figure 5: Connect FAG410X with UCM620X: Registrar IP Address..............7 Figure 6: Connect FAG410X with UCM620X: Register Gateway ................8 Figure 7: Configure FXO Port on FAG410X: Modify Port ..................8 Figure 8: Configure FXO Port on FAG410X: Port Configurations ................8...

  • Page 4: Overview

    OVERVIEW This document describes basic configuration to interconnect UCM620X series and FAG410X. In this document, we are using FAG4108 as an example. The following methodology can be used for the FAG4104 as well. This is typically applied to the scenario where users would like to add a FAG410X not only as a remote extension but also as an external PSTN trunk.

  • Page 5: Connect Ucm620X To Fag410X Using Peer Sip Trunk

    CONNECT UCM620X TO FAG410X USING PEER SIP TRUNK Create IVR On UCM620X On the UCM620X web GUI, create an IVR extension under Call Features->IVR. In IVR settings, if "Dial Other Extensions" is enabled, the calls dialing into the UCM620X IVR will be able to reach the internal extensions registered to the UCM620X.

  • Page 6: Create Peer Sip Trunk On Ucm620X

    Create Peer SIP TRUNK On UCM620X On the UCM620X web GUI, create a peer SIP trunk under In this example, Extension/Trunk ->VOIP Trunks. the FAG410X IP address is 192.168.99.239. Figure 2: Create Peer SIP Trunk on the UCM620X Configure Outbound Rule on UCM620X On the UCM620X web GUI, go to Extension/Trunk ->Outbound Routes to create a new outbound rule.

  • Page 7: Configure Inbound Rule On Ucm620X

    Figure 3: Configure Outbound Rule on the UCM620X In this example pattern "91XXXXXXXXXX", 9 is the first dialing digit and it will be stripped off when the call goes out. Configure Inbound Rule on UCM620X On the UCM620X web GUI, go to Inbound Rules to create a new inbound rule.

  • Page 8: Connect Fag410X With Ucm620X

    Figure 4: Configure Inbound Rule on UCM620X The default destination is configured to IVR. Ensure to select the proper extension for the IVR. Connect FAG410X with UCM620X 1. On the FAG410X web GUI, go to the VoIP->SIP page and enter the IP address of the UCM620X that you are peering with.

  • Page 9: Configure Fxo Port On Fag410X

    Figure 6: Connect FAG410X with UCM620X: Register Gateway Configure FXO Port on FAG410X 1. Connect the PSTN line to the FAG410X FXO port. On the FAG410X web GUI, go to the Port->FXO page and press Modify on the FXO port you will use.

  • Page 10: Create Port Group On Fag410X

    Create Port Group on FAG410X On the FAG410X web GUI, go to the Port->Port Group page and press “Add New”. Figure 9: Create Port Group on FAG410X: Add New Select the FXO port you will use. Figure 10: Create Port Group on FAG410X: Group Configurations P a g e 9...

  • Page 11: Fag410X Call Routing

    FAG410X CALL Routing Configure IP to Tel on FAG410X 1. On the FAG410X web GUI, go to the Route-> IP→TEL page, Press “Add New”. Figure 11: FAG410X – IP to TEL 2. Enter the UCM620X IP address in “Source IP” and select the Port Group you will use from “Call Destination”.

  • Page 12: Configure Tel To Ip On Fag410X

    Configure TEL to IP on FAG410X 1. On the FAG410X web GUI, go to the Route-> TEL→IP page, Press “Add New”. Figure 13: FAG410X – TEL to IP Select the Port Group you will use from “Source Port Group” and enter the UCM620X IP address in “Destination Address”.

This manual is also suitable for:

Fag4108Fag4104
