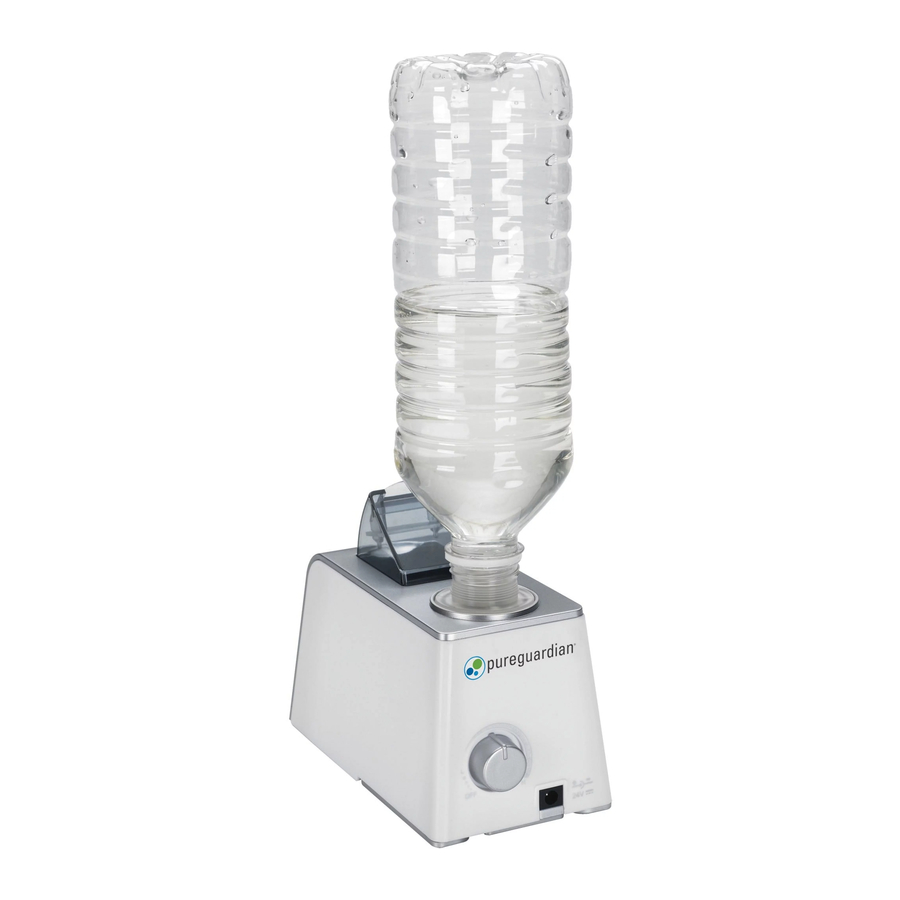

Guardian H500 - PureGuardian Personal Travel Ultrasonic Humidifier Manual

PARTS AND ACCESSORIES

SPECIFICATIONS

MODEL NUMBER: H500
HUMIDIFYING MODE: Ultrasonic Cool Mist
RATINGS: 24V DC, 12W
INPUT VOLTAGE: 110-240V AC, 50/60 Hz
OUTPUT VOLTAGE: 24V DC, .5A
TANK CAPACITY: Recommended standard 16 oz. (.5L) water bottle
SUCCESSIVE HUMIDITY HOURS: Approximately 8 hours
DIMENSIONS: 5.75"L x 3.12"W x 4.75"H (without water bottle)
WEIGHT: .65 pounds (without water bottle)

PARTS

ACCESSORIES

MAIN FEATURES

Mini and light-weight design, easy to take it everywhere.
Travel bag included for your convenience.
Mist output control for controlled humidification.
Night light feature.
Very energy-efficient and ultra-quiet operation.
Automatically switches off when water is empty.

DIRECTIONS FOR USE

SET UP

Select a firm, level, flat location - at least six inches (15 cm) from any wall or object for proper air flow. Place the humidifier on a water-resistant surface, as water can damage furniture and some flooring. Do not place unit directly on carpet, towels, blankets or other absorbent surfaces.

Guardian Technologies will not accept responsibility for damage caused by water spillage.

Make sure unit is unplugged.

Remove cap from standard sized water bottle - recommend 16 oz. (.5L).
Replace with bottle adapter provided. Turn clockwise tightly to seal.
Turn upside down and insert into bottle into the tank. The bottle will immediately begin to release water into the base.
Plug the power adapter into the unit then plug into an outlet.
Raise mist nozzle to upright position.
Turn the dial to turn power on.

POWER WILL NOT ACTIVATE WITHOUT RAISED MIST OUTLET AND WATER.
Adjust dial for various mist levels.
Night light will automatically turn on/off with the power.
Unit will automatically turn off if there is no water.

CLEANING

Always unplug the unit before servicing in any way.

GENERAL CLEANING

Inside the base of the unit. Pour excess water out of the unit. Wash out the unit with fresh water using the cleaning brush and a soft cloth as needed. Do not submerse the base of the unit into water, or allow water to enter inside the dry air exhaust port of the unit.
Outer surface of the unit. Wipe the surface of the unit with a soft, damp cloth if needed. If you notice an accumulation of water during usage, reduce humidity and dry outer surface with a cloth.

DESCALING

Depending on usage and water type, cleaning to remove scale may be required weekly or every other week to optimize unit performance.
Do not clean the unit with detergents or cleaning chemicals of any kind.

ULTRASONIC DISK

Unplug unit. *Clean the disk with the brush only. No other
Empty all water from the unit base. cleaning tool should
Pull mist nozzle up to remove the top cover of the humidifier. Locate the ultrasonic disk on the inside of the base unit.
Use ONLY the enclosed cleaning brush to gently clean disk and remove build up and deposits. Do not scrub or scrape the ultrasonic disk.

If scale becomes difficult to remove with brush:

Fill the Base with: mixture of 1 tsp. white vinegar and 1 tsp. water.
Let solution stand for 5 minutes.
With the vinegar in the Base, clean all interior surfaces with a soft cloth or brush to help remove scale.
Rinse the Base thoroughly with water to remove scale and vinegar solution.

END OF SEASON STORAGE

Follow the Cleaning and Descaling instructions when the humidifier will be stored at the end of the season.
Dry the humidifier completely before storing. DO NOT store with water inside the Base.
Pack the unit in its original carton and store in a cool, dry location.

NOTE: IF YOU EXPERIENCE A PROBLEM DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF. DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE HUMIDIFIER OR PERSONAL INJURY.

TROUBLESHOOTING GUIDE

PROBLEM	SOLUTION
Water vapor and humidity are not produced.	Power Plug: Unplug and then try again. Power Failure: When the power is returned, try again. Bottle Installation: Make sure the tank is correctly attached. The surface of the ultrasonic disk is dirty: Clean ultrasonic disk. Mist outlet. Check that it is in upright position.
Air blows but water vapor is not produced.	Excessive Water: Remove a certain amount of water from the tank. The desired humidity is lower than the current temperature: Increase the desired humidity. Detergent residue and/or oil ingredients from cosmetics, etc may be in tank; wash out tank and try again. The surface of the ultrasonic disk is dirty: Clean ultrasonic disk. If you use hard water, replace with softer water.
Humidity level is low.	The surface of the ultrasonic disk is dirty: Clean ultrasonic disk. The water in the unit is too cold: Replace with cool, but not cold water. Damage on the ultrasonic disk: Contact Customer Service 1.866.603.5900.
The humidity has a bad smell.	Poor maintenance or dirty water: Clean the product thoroughly.
White dust is forming on nearby furniture.	Hard water may deposit a certain amount of dust. Dust in the air also settles because of added humidity in the room. Use distilled water if this becomes a nuisance.
Unit has stopped working.	No or low water. Unplug unit and replace water bottle.
Water is accumulating outside of unit or area surrounding unit.	Saturation of humidity. Lower mist control setting. Unit not level and water is accumulating. Unplug and place on level surface. Point spray away from objects. Raise unit on a water-resistant level surface 2-3 feet off of floor.
Water dripping when refilling.	Water remaining on bottom of unit. Wipe tank or tilt to drain before transporting.
Increased noise level.	Unit must be placed on a flat, level, hard surface. Make sure it is NOT placed on a soft or absorbent surface.

WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

warning This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

THE CORDS, WIRES AND/OR CABLES SUPPLIED WITH THIS PRODUCT CONTAIN CHEMICALS, INCLUDING LEAD OR LEAD COMPOUNDS, KNOWN TO THE STATE OF CALIFORNIA TO CAUSE CANCER AND BIRTH DEFECTS OR OTHER REPRODUCTIVE HARM. WASH HANDS AFTER USING.

To reduce the risk of severe burns, keep this product out of the reach of children and pets.
Disassembly, repair or remodeling by an unauthorized person may result in serious harm and will void the manufactures warranty.
Always place this humidifier on a firm, flat & level surface. This humidifier may not work properly on an uneven surface.
Do not place this product on cloth, carpet or an absorbent surface. This may block air inlet.
This product releases mist. Do not place this humidifier directly on wood furniture, flooring or any surfaces that could be damaged by water. Manufacturer does not accept any liability for damage in the case of the unit being placed incorrectly.
Do not use if the plug is damaged or loose.
Before filling or cleaning the unit, make sure it is unplugged.
Once the humidifier has been plugged in, do not tilt or move the unit.
Do not remove the water tank from the unit while it is on.
Do not handle the plug with wet hands.
Do not excessively bend, twist, pull or damage the power cord.
Avoid placing this product where the humidity spout is pointed directly at an object or person.
Do not inhale the mist/vapor expelled from the product or drink water from the tank.
Do not fill the water tank with hot or boiling water.
Do not use this product in direct sunlight or near a heat source such as a stove, heater or radiator.
If the water tank becomes cracked or damaged, do not use.
Do not keep this product running for an extended period of time.
Unplug the cord when unit is not in use for an extended period of time and/or when no one is home.
Do not keep water in the tank when not in use for an extended period of time.
Do not clean the unit, water tank or water reservoir with detergents or chemicals of any kind.
The use of water additives including ethereal/essential oils, fragrances, eucalyptus, water conditioners, etc. will damage the appliance materials and as a consequence the whole unit. Any use of such additives will void the manufactures warranty.
Do not use this product near any other electronic device.
Do not cover the spray spout at any time during use. Do not put anything on or in the tank.
Neither humans nor animals can hear the high frequency vibrations.
When unplugging from outlet hold humidifier securely.
Do not place cord over objects.
Do not get water in or on the power cord or where it connects to the product. Do not use near a sink.
Do not touch the water tank during operation.
Do not submerse the unit in water or pour water on the unit or in the humidity spout.
When emptying water from water tank, pour on drain side.
Do not cover the spout with cloth or hand and do not use without the spout.
Use clean or distilled water in tank. Hard water areas will require more frequent cleaning.
