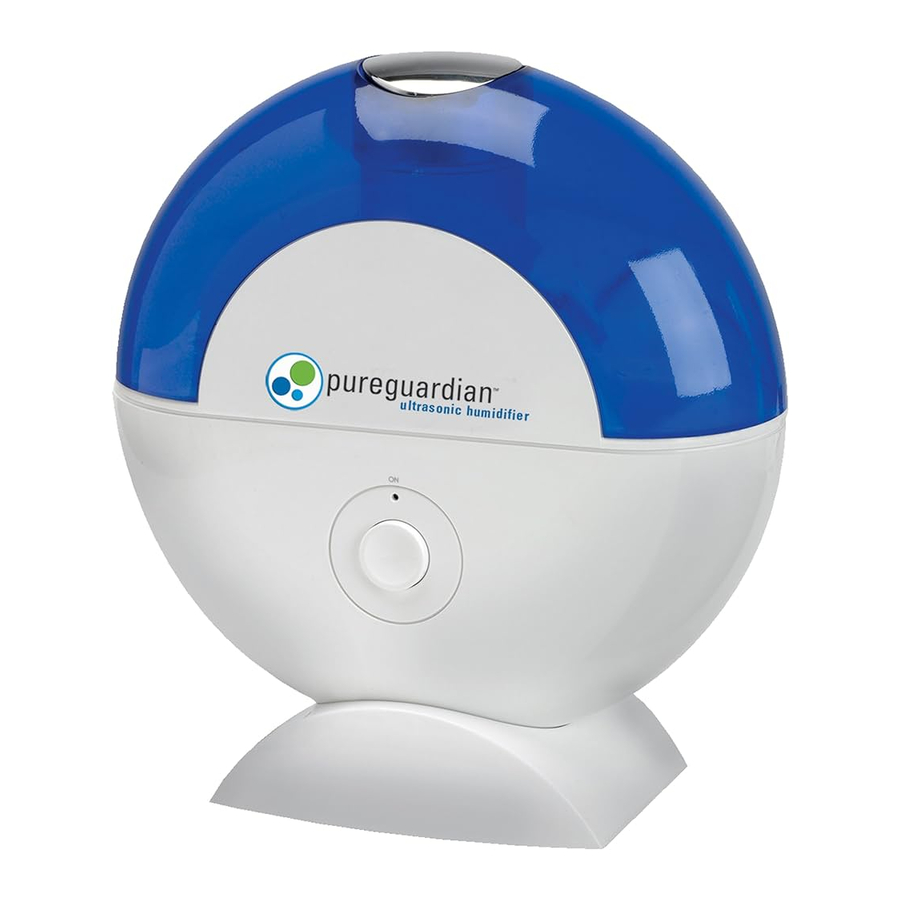

Guardian H1000 - PureGuardian Ultrasonic Cool Mist Humidifier Manual

Also See for H1000:

Use and care instructions (5 pages)

Table of Contents

Contents

1 PARTS
2 FUNCTIONS AND FEATURES
3 OPERATING INSTRUCTIONS
4 STORAGE
5 TROUBLESHOOTING GUIDE
6 SPECIFICATIONS
7 WARNINGS
8 Documents / Resources
- 8.1 Download manual

Guardian H1000 - PureGuardian Ultrasonic Cool Mist Humidifier Manual

PARTS

FUNCTIONS AND FEATURES

Water Shortage Indicator

When the unit is low on water, the Refill Indicator LED on the body will change from green to red, and the unit will shut off. Simply add more water to continue use.

Mist Director

The mist director can be selected through 360° by turning the spout.

Silver Clean Technology

Unlike other humidifiers that grow sllimy mold and mildew, the pureguardian Ultrasonic Humidifier uses Silver Clean technology embedded in the tank to fight the growth of mildew and mold on the surface of the water tank.

Cleaning Brush Storage

OPERATING INSTRUCTIONS

Make sure the unit is unplugged.

Separate the tank from the body of the unit.
Open the tank lid, turning it to the left.
Pour cool, clean water directly into the tank. Do not pour anything but water into the tank.
Close the tank lid, turning it to the right.
Attach the tank to the body of the unit and plug in.
Press the button to turn on.

Always unplug the unit before servicing it in any way.
Do not submerse the unit in water, or allow water to enter the inside of the unit.

INSIDE THE BODY OF THE UNIT

Pour excess water out of the unit. Wash out the unit with fresh water, using the cleaning brush and a soft cloth as needed.

OUTER SURFACE OF THE UNIT

Wipe the surface of the unit with a soft damp cloth if needed.

WATER TANK

Fill water tank with clean water and shake to remove water scaling.

ULTRASONIC DISK

Remove the water tank (Figure 1) and use the enclosed cleaning brush regularly to remove build up and deposits from this area (Figure 2).
ULTRASONIC DISK

Do not use any detergents or soap as this may damage the ultrasonic disc. This may also disperse detergent or soap residue with mist causing bodily harm.

Do not scrub with finger tips or any sharp objects as this may cause damage to the ultrasonic disc.

If there is red color build up on ultrasonic disk, gently clean with soft cloth and 1-2 drops of white vinegar. Rinse with clean water.

*Clean the disk with the brush only. No other cleaning tool should be used. Brush only. (Fig. 2)

STORAGE

Fully dry the inside and outside of the unit before storing it.
DO NOT leave water in the unit.
Store in a cool, dry place.

TROUBLESHOOTING GUIDE

PROBLEM	SOLUTION
Water vapor & humidity are not produced.	Power Plug: Unplug and then try again. Power Failure: When the power is returned, try again. Make sure the water is in the tank and the tank is correctly attached. Clean the ultrasonic disc and its periphery.
Air blows but water vapor is not produced.	Excessive Water: Remove a certain amount of water from the tank. Detergent residue and/or oil ingredients from cosmetics, etc may be in tank; wash out tank and try again. Clean the ultrasonic disk and its periphery. If you use hard water, replace with softer water.
Humidity level is low.	The surface of the ultrasonic disc is dirty: Clean the ultrasonic disc and its periphery. The water in the unit is too cold: Replace with cool, but not cold water.
The humidity has a bad smell.	Boil clean water and let cool. Use water after 24 hours. Poor maintenance or dirty water: Clean product thoroughly and fill with fresh water.
White dust forming on nearby furniture.	Hard water deposits a certain amount of dust. Use distilled water if this becomes a nuisance.

SPECIFICATIONS

Model Number: H1000
Humidifying Mode: Ultrasonic
Power Supply: AC120V, 60Hz (Adapter AC120V / AC 24V)
Power Consumption: 18W
Humidity Capacity: About 110cc/hr
Tank Capacity: 0.23 gallons
Successive Humidity Hours: 8 hours or more depending on environmental conditions
Dimensions: Width 7.9 inches - Height 8.5 inches - Depth 3.5 inches
Weight: 1.32 pounds (Not including packing adapter)

WARNINGS

Failure to comply with the warnings listed above may result in electric shock or serious injury.

warning This product should be used only in accordance with the specifications outlined in this manual.

Usage other than what has been specified here may result in serious injury.

Disassembly, repair or remodeling by an unauthorized person may result in serious harm.
Do not use if adapter plug is damaged or loose.
Keep this product out of the reach of children and away from pets.
Be careful not to put water in the humidity spout.
Before filling or cleaning the unit, make sure it is unplugged.
Once the humidifier has been turned on, do not move it and do not disassemble the water tank.
Do not move when in operation.
Do not remove the water tank from the unit while it is on.
Do not handle the adapter plug with wet hands.
Do not excessively bend, twist or pull the adapter cable.
Avoid placing this product where the humidity is pointed directly at an object.
Do not directly inhale the humidity.
Do not place this product on a sloped or unstable surface.
When not in use, unplug the unit.
Do not fill the water tank with hot or boiling water.
Do not use this product in direct sunlight, or near a gas stove or heater.
If the water tank becomes cracked or damaged, do not use.
Do not keep this product running for an extended period of time.
Do not clean the unit or water tank with detergents or chemicals of any kind.
Do not use this product near any other electronic device.
Do not cover the humidity opening at any time during use.
Do not use this product near a sink.
Do not place this product on an absorbent surface.
Do not pour anything but water into the water tank.
Children cannot recognize the hazards associated with the usage of electrical appliances. For this reason, always supervise children when they are near the humidifier.
If the mist comes in contact with the floor prior to evaporating, the floor surface may be damaged. We do not accept any liability for damage in the case of the unit being placed incorrectly.
The use of water additives, such as ethereal/ essential oils, fragrances, eucalyptus, water conditioners, etc. will damage the appliance materials and as a consequence the whole unit. Any use of such additives will void the manufacturer's warranty.
Neither humans nor animals can hear the high frequency vibrations.
Failure to comply with the warnings listed above may result in electric shock or serious injury.
Do not tilt or move the unit when unit is plugged into outlet.
When unplugging from outlet hold humidifier securely.
Do not put water in the spout.
Do not damage the adapter cord.
Do not place adapter cable over objects.
Be careful not to get water in or on the power cord adapter or where it connects to the product.
Do not touch water tank during operation.
Do not submerse the unit in water or pour water on the unit.
When emptying water from water tank, pour on drain side.
Be careful not to put any detergent, any oils, any chemicals into water reservoir and/or tank.
Do not place this product on cloth, carpet or vinyl. This may block air inlet.
Unplug the adapter when unit is not in use for an extended period of time and/or when no one is present in the home.
Do not drink the water from the tank.
Do not cover the spout with a cloth or your hand and do not use without the spout.
Do not keep water in the tank when not in use for an extended period of time.
Do not put anything in the tank.
Do not use the product near a gas oven range.
Use clean or distilled water in the tank.
Do not place anything on water tank or damage product by dropping.
