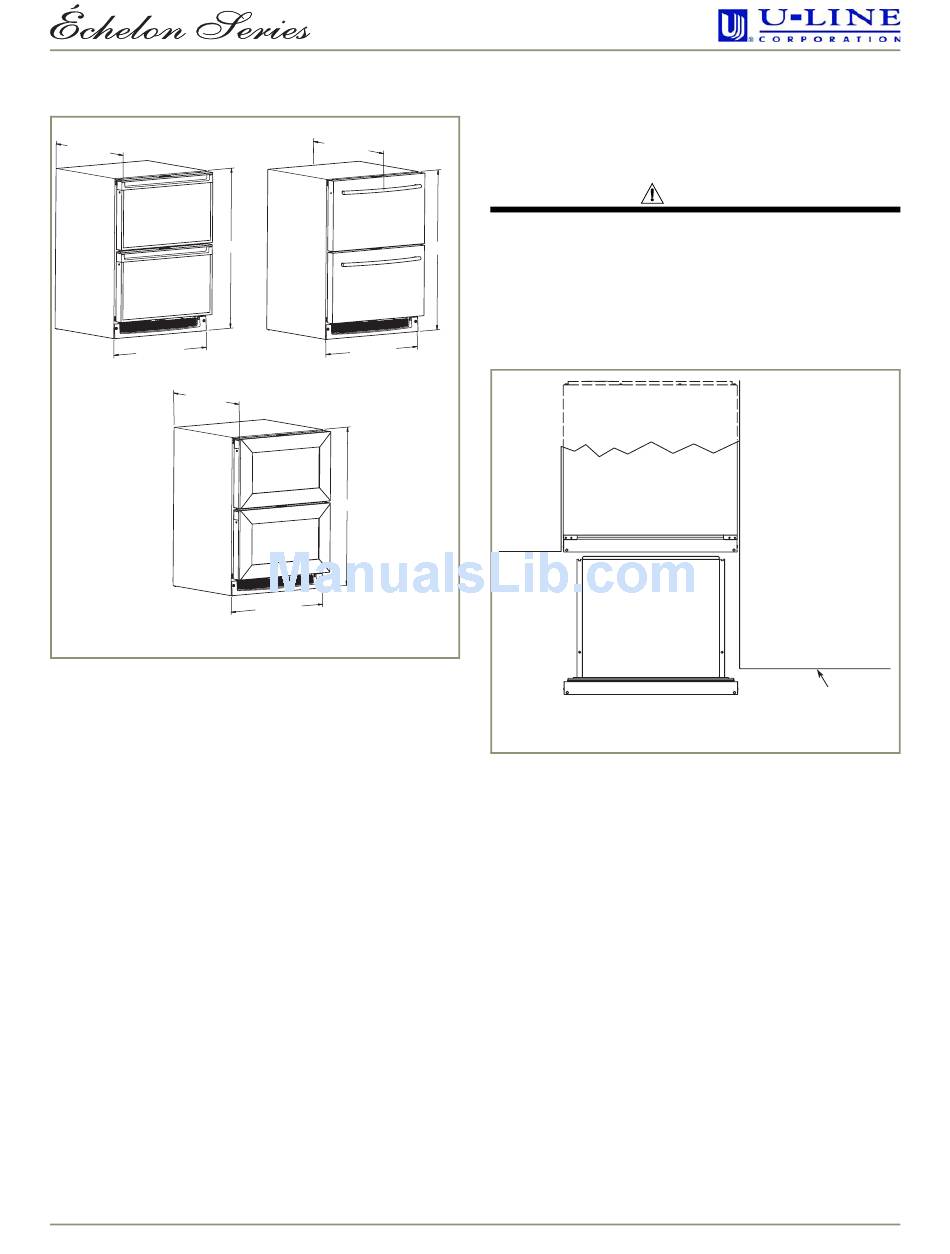

Product Dimensions
23-11/16"
34-1/8"
23-15/16"
Black
24-7/16"
Including
Overlay
Figure 2
Please note that the unit has adjustable feet that can add
one additional inch to height during leveling or to match
adjacent cabinets (see Figure 25 on Page 12).
06/2006
2175DWRR — Drawer Model Refrigerator
25-13/16"
Including
Handle
23-15/16"
Stainless Steel
34-1/8"
23-15/16"
Wood Overlay
Clearances Information
The unit must be installed in a wall or under a counter-
top to allow for the installation of the Anti-Tip Kit (see
Page 13).
The Anti-Tip Kit must be installed on this unit
34-1/8"
before it is used. Never use the drawers as steps
or as a shelf to support more than the drawers'
contents. Serious personal injury could occur.
The unit is designed so it can be installed next to a wall on
either side (see Figure 3).
Figure 3
5
WARNING
Cabinet
or Wall
www.U-LineService.com
