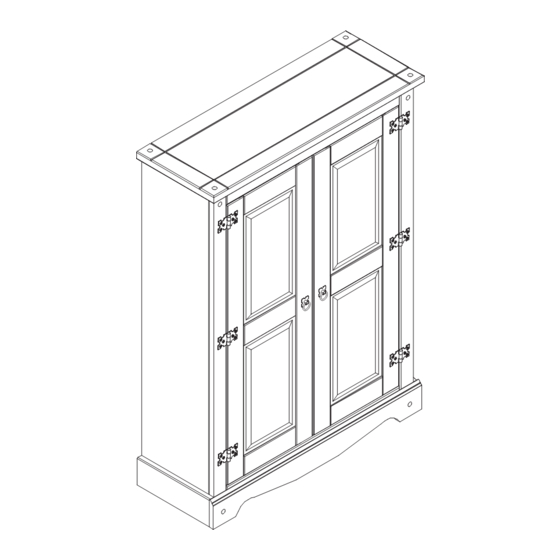

2 - DOOR ACCENT CUPBOARD
Carefully review assembly and care instructions before using this product. Save this document for future reference.
Assemble components on a soft, clean surface to avoid scratching or damaging the finish.
HELPFUL HINTS
Sunnydaze Decor advises reviewing this manual fully, and assembling the unit soon after purchase.
Check that all parts are accounted for and familiarize yourself with the assembly before beginning.
CRG922
Purchase Date:
Thank you for choosing Sunnydaze Decor. We stand behind our brand and the quality of the items we sell.
Replacement parts or products will be sent at our discretion within the 1-year warranty period. Proof of purchase, with
the date of purchase as well as photos of the merchandise defect, must be provided. Photos are used to determine
the cause of defects and for future quality control. Register your warranty at
If you have any questions, comments or concerns, feel free to contact us by phone at 833-982-1977, by email:
customerservice@sunnydazedecor.com, or via our contact us page at
AGR-362
SAVE THIS MANUAL FOR FUTURE REFERENCE.
/
/
Order/Customer Reference Number:
02/2023
https://tiny.cc/SunnydazeWarranty
https://tiny.cc/SunnydazeContact
Inspect packaging to ensure all
parts are accounted for before
disposing of packing materials.
Save the packing slip.
2-PERSON
ASSEMBLY
RECOMMENDED
SCAN THIS CODE
WITH YOUR
SMARTPHONE
TO VIEW OUR
ASSEMBLY VIDEO
Page 1 / 11
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Sunnydaze Decor AGR-362
Summary of Contents for Sunnydaze Decor AGR-362
- Page 1 Order/Customer Reference Number: Thank you for choosing Sunnydaze Decor. We stand behind our brand and the quality of the items we sell. Replacement parts or products will be sent at our discretion within the 1-year warranty period. Proof of purchase, with the date of purchase as well as photos of the merchandise defect, must be provided.
- Page 2 INTRODUCTION Read the manual carefully to ensure you fully understand all use, care, assembly, and safety information. Assemble on a soft, flat, clean, and Read this manual carefully and dry surface. follow the assembly instructions in the order listed. Pay close Use a soft, protective barrier when attention to assembly drawings.
- Page 3 COMPONENTS Inspect packaging to ensure all parts are accounted for before disposing of packing materials. Save the packing slip. WARNING CHOKING HAZARD — This item contains small parts that can be swallowed. Keep children and pets away during assembly. Seq. Part Name Qty.
- Page 4 ASSEMBLY Carefully review all steps and fully understand assembly before beginning. IMPORTANT: Take care not to over-tighten screws as doing so may crack the wood or strip the screw hole, causing a weak connection and reduced stability. STEP 1 06: 1 Install four Wood Dowels 07: 1 (A) into Bottom Frame (06)
- Page 5 STEP 4 D: 12 TIP: Install connectors and shelf pins by gently tapping them into the designated holes using a rubber mallet. With the angled edges facing the inside of the panel, install six Connectors (D) into Left Side Panel (02) and Right Side Panel (03).
- Page 6 STEP 6 IMPORTANT: Ensure Bottom Frame (06) is installed in the correct direction, as indicated by the diagram. B: 4 C: 4 Lay Left Side Panel (02) on a smooth, clean surface. Ensuring the catches face the top of the cabinet, align Bottom Panel (05) just above the bottom connector of the side panel and secure using two M4.5x28mm Pan Screws (C).
- Page 7 STEP 8 Assistance is recommended for this step. 01: 1 09: 1 C: 7 Align Front Trim Board (09) with the bottom, front side of the unit. Have an assistant hold the trim board tightly to ensure it remains flush with the unit while it is secured. From the backside of the bottom frame, secure the trim board using three M4.5x28mm Pan Screws (C).
- Page 8 STEP 10 IMPORTANT: Note the direction of the hinge mounting holes and install as shown in the diagram. 14: 1 Do not fully secure Screws (L) until after the door is properly aligned during Step 12. 15: 1 G: 1 H: 1 K: 3 Lay Left Door (15)
- Page 9 STEP 12 TIP: Hold the shelf at an angle to fit it between the stiles. Ensuring the finished edge faces the front of the cabinet, place two Shelves (04) on the shelf pins. STEP 13 Assistance is recommended for this step. IMPORTANT: Ensure the doors are properly aligned before fully...
- Page 10 STEP 14 E: 8 For even spacing, carefully measure and install eight Tacks (E) as indicated above. HELPFUL MEASURING HACK To help ensure tacks are evenly spaced, we developed a hack to make this step easier. Grab a blank white piece of paper or tracing paper, a writing utensil, a ruler and scissors. The blocks below are sized to the dimensions noted in the above diagrams.
- Page 11 STEP 15 Wall WARNING: Check for pipes and electrical wiring before drilling. IMPORTANT: If walls are not solid like brick, stone or concrete, you will require special fittings (not included). When in doubt, consult a professional. Carefully measure the location of pilot hole before drilling and installing the unit. •...
