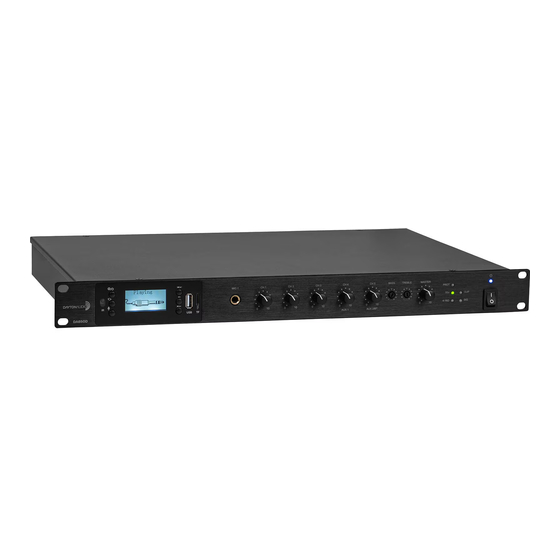

- Page 1 70V RACKMOUNT PA MIXER-AMPLIFIER User Manual Model: DA350D / DA650D...
-
Page 2: Safety Precautions
Safety Precautions Be sure to read the instructions in this section carefully before use. Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded and very important precautions are included. We also recommend you keep this instruction manual handy for future reference. Safety Symbol and Message Conventions Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling. - Page 3 When the Unit is in Use When Installing the Unit Do not place heavy objects on the unit as this may Never plug in nor remove the power supply plug cause it to fall or break which may result in with wet hands, as doing so may cause electric personal injury and/or...
-
Page 4: Table Of Contents
Welcome The Dayton Audio DA series of mixer amplifiers are designed specifically for professional and commercial applications. Complete with a built in media player, Bluetooth receiver, and mixer the DA Class-D series of amplifiers make it easy to add audio to any home or business. Contents Safety Precautions .......................... -
Page 5: Control And Funtions
Controls And Functi ons Front Panel 1. Media Player 2. Mic 1 Unbalanced Input 3. Input Level Controls 4. Tone Control 5. Output Volume Control 6. Status Indicators 7. Power Switch Rear Panel 8. AC Power Input 9. Amplifi er Output 10. -
Page 6: Setup
Setup Unpacking Your Amplifier Before installing your amplifier, please unpack and inspect it for any damage that might have occurred during shipment. Verify that all accessories are included in the box. If you notice damage or that parts are missing, please contact Dayton Audio for assistance. Warning: Please read and observe the safety instructions at the beginning of the manual before setting up your amplifier Installing Your Amplifier... -
Page 7: Input Wiring
Input Wiring Using high quality balanced 22-24 gauge cable, connect to the balanced inputs by using the included Phoenix style connectors. Shielded cable will provide the best results. Unbalanced or unshielded cable may result in RF noise or a Hum in the input signal. You can also connect devices such as CD players, computers, or streaming devices using the available Stereo RCA connecti ons. -
Page 8: Operation
Operation Media Player 1. Mode/Power– Press to cycle between FM, USB/Micro SD card, and Bluetooth inputs. Press and hold to turn the media player on and off. (This does not turn the amplifier off) 2. Repeat – Cycle between different playback modes (Repeat one, repeat all, Random, Repeat Folder) 3. -
Page 9: Remote
Remote 1. Power Will turn the media player on and off 2. Input Mode Selection Will cycle through the various input modes 3. Track Transport Controls Control the playback of the media player start/pause the current song skip forward to the next song. skip backward to the beginning of the current song or the previous song control the repeat setting completely stop all playback... -
Page 10: Bluetooth Pairing
Bluetooth Pairing To pair a Bluetooth device to the built in media player, press and hold the mode button to activate pairing mode and search for “BP10_BT” on your Bluetooth device. Input Level Control Each input channel has the ability to accept line and microphone signals and can also supply phantom power to microphones when necessary. -
Page 11: Troubleshooting
Troubleshooting... -
Page 12: Specifications
Specifications All specifications are accurate at the time of printing. Dayton Audio reserves the right to make improvements without notice. -
Page 13: Dimensional Diagram
Dimensional Diagram... -
Page 14: Block Diagram
Block Diagram... -
Page 15: Warranty
Dayton Audio. Dayton Audio reserves the right to replace defective product with a new or factory reconditioned unit. For more information and to register your new Dayton Audio device visit daytonaudio.com. Purchased on: ____________________... - Page 16 705 Pleasant Valley Dr. Springboro, OH 45066 tel + 937.743.8248 info@daytonaudio.com Dayton Audio ® Last Revised: 10/10/2023...
