Summary of Contents for DaytonAudio DA10T
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ..................3 2. GENERAL DESCRIPTION ..................5 3. FEATURES AND FUNCTIONS 1 Front Panel ......................6 3.2 Rear Panel......................6 4. CONNECTIONS 4.1 Speaker Connections ....................7 OPERATION ......................7 . APPLICATIONS ....................... 8 7. APPLICATION DIAGRAM ..................9 8.SPECIFICATIONS ....................10 9.DIMENSIONAL DIAGRAM... -
Page 3: Safety Precautions
1. SAFETY PRECAUTIONS Be sure to carefully read all the safety instructions in this manual before use. Be sure to follow all safety instructions in this manual. Please keep this instruction manual for future reference. Safety Warning and Cautions Safety Cautions and Warnings are used in this manual to prevent bodily injury and property damage. Before operating this product please read and follow all safety precautions to avoid potential safety risks. - Page 4 SAFETY PRECAUTIONS When Installing the Unit Never plug in or remove the power cord with wet Do not place heavy objects on top of the product. This can result in the product or object to fall, hands, doing so may cause electric shock. causing personal injury or property damage.
-
Page 5: General Description
2. GENERAL DESCRIPTION 1. Rated Power: 10W 2. 100V, 70V constant voltage outputs and 4-16 ohms constant resistance output. 3. 1 channel MIC one-port input (5 mV/10k ohms) and 1 channel (300 mV/10k ohms) AUX input. 4. 1 channel TEL input (sensitivity: 1V/2k ohms). 5. -
Page 6: Features And Functions

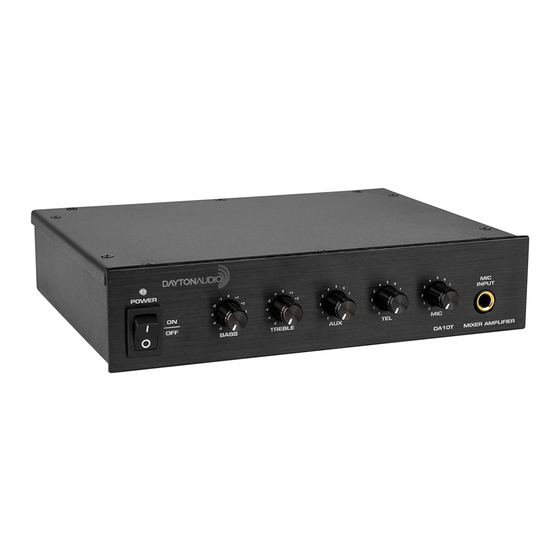

FEATURES AND FUNCTIONS 3.1 FRONT PANEL 1. POWER 5. AUX Power indicator AUX volume control 2. POWER SWITCH 6. TEL ON/OFF toggle switch TEL volume control 3. BASS 7. MIC Bass response adjustment. Rotate clockwise to MIC volume control 8. MIC INPUT increase bass output and counterclockwise to reduce it. -
Page 7: Connections
4. CONNECTIONS SPEAKER CONNECTIONS 70V 100V 70V 100V 70V 100V COM 4-16 COM 4-16 COM 4-16 (DA10T) 1000 (DA10T) 100V LINE 4-16 70V LINE The 4-16 ohm and 70V/100V terminals cannot both be used at the same time. Impedances indicated in the figures represent the total speaker system (load) impedances. -
Page 8: Applications
6. APPLICATIONS... -
Page 9: Application Diagram
APPLICATION DIAGRAM... -
Page 10: Specifications
8. SPECIFICATIONS MIXER AMPLIFIER DA10T Model Speaker Output 4~16 ,70V,100V Amplifier Section(Amp In @ 1kHz, 8 ohm load output) Rated maximum output power (THD 1%) Input sensitivity/impedance 1V/20k ohms 80 Hz~16 kHz(+1 dB/-3 dB) Frequency response(At 1kHz half power output) -
Page 11: Dimensional Diagram
9. DIMENSIONAL DIAGRAM UNIT:: mm UNIT: mm Over Over... - Page 12 Non-Warranty Service: If non-warranty service is required, the product may be sent to the Company for repair/replacement, transportation prepaid, by calling (937) 7 43-8248 for details, complete instructions, and service fee charges. 705 Pleasant Valley Dr. daytonaudio.com DAYTON/\UDli 937.743.8248 Springboro. OH 45066 info©daytonaudio.com...
