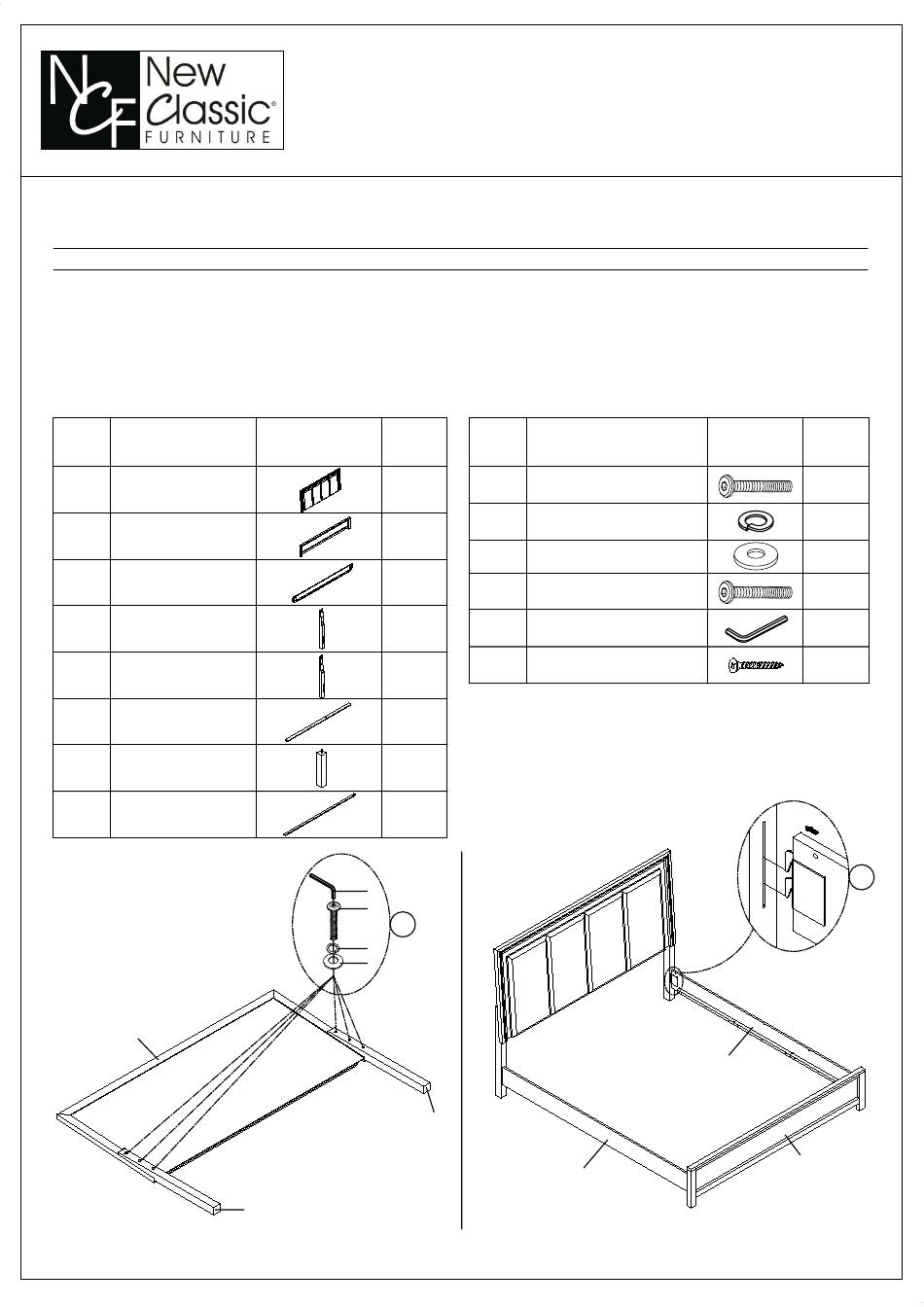

New Classic Furniture ODESSA B6555-110 Assembly Instructions

Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which
may have come loose inside the carton during shipment. Identify and count all items and compare with the PARTS
LIST and/or HARDWARE LIST shown below.
Caution: Please read the instructions thoroughly before assembly.
1.We recommend that you assemble this product with the assistance of another person; this will make assembly
easier, and will help to eliminate damage to the product or injury to persons during assembly.
2.Please do not over tighten screws or bolts until the assembly is completed.
3.Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps to assemble your newly
purchased product correctly and efficiently.

PARTS LIST

NO. COMPONENT
A
Headboard
B
Footboard
C
Side rail
D
Left Leg
E
Right Leg
F
Slat
G
Support Leg
H
Center rail

STEP 1

A
Assembly Instructions
ITEM: B6555-110 ODESSA 6/6-6/0 EK/WK HEADBAORD
B6555-120 ODESSA 6/6-6/0 EK/WK FOOTBOARD & SLATS
B6555-230 ODESSA 6/0 WK SIDE RAILS
Q'TY
DRAWING
1 PC
1 PC
2 PCS
1 PC
1 PC
4 PCS
8 PCS
2 PCS
5
1
x6
2
3
E
MADE IN VIET NAM

HARDWARE LIST

NO. COMPONENT
1
Bolt Ø5/16"x1-1/2"
2
Lock Washer Ø5/16"
3
Flat Washer Ø5/16"x3/4"
4
Bolt Ø1/4"x1-3/4"
5
Allen Key 1/8"
6
Screw #1-1/4"

STEP 2

D
C
Q'TY
DRAWING
6 PCS
6 PCS
6 PCS
10 PCS
1 PC
8 PCS
x4
C
B
PAGE: 1 OF 2
