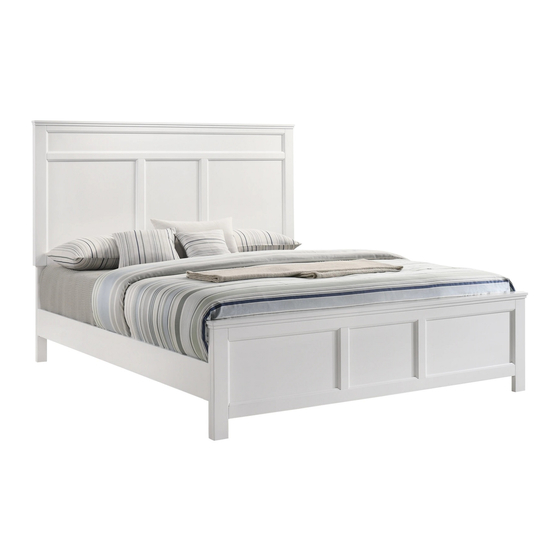

New Classic Furniture ANDOVER B677W-115 Assembly Instructions

B677W-115 ANDOVER 6/ 6-6/ 0 EK/WK HEADBOARD, FOOTBOARD & SLATS-WHITE
B677W-335 ANDOVER 5/ 0-6 /6 Q/EK SIDE RAILS-WHITE
Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which
may have come loose inside the carton during shipment. Identify and count all items and compare with the parts list
and/or hardware list shown below.

PARTS LIST

QTY
ITEM DRAWING DESCRIPTION
1 HEAD
1 PC
BOARD
2 FOOT
1 PC
BOARD
HB LEG
3
1 PC
POST (L)
HB LEG
4
1 PC
POST (R)
5
SIDE RAILS
2 PCS
6 SLATS
8 PCS
SUPPORT
7 WOODEN
4 PCS
SLAT
HARDWARD LIST
QTY
ITEM DRAWING DESCRIPTION
A JCBB (M8)
4 PCS
8 x 35MM (NYLOK)
B
Spring Washer
4 PCS
M8 x22mm
C
Flat Washer
4 PCS
M8 x 16 x 1.6mm
D
ALLEN KEY M5
1 PC
5 x 35 x120MM
E
C.S.K SCREW
8 PCS
(M4) 4 x32mm
Screw Driver is not included
NOTE:MUST TIGHTEN SCREW PERIODICALLY.WITH USE SCREWS WILL
BECOME LOOSE CHECK THIGHT OF ALL SREWS EVERY 6-8 WEEKS.
A
STEP 1
A+B+C
A+B+C
4
R
I
SSEMBLY NSTRUCTIONS
&
B677B-115 ANDOVER 6/ 6-6/ 0 EK/WK HEADBOARD, FOOTBOARD & SLATS-NUTMEG
B677B-335 ANDOVER 5/ 0-6 /6 Q/EK SIDE RAILS-NUTMEG
1
BACK VIEW

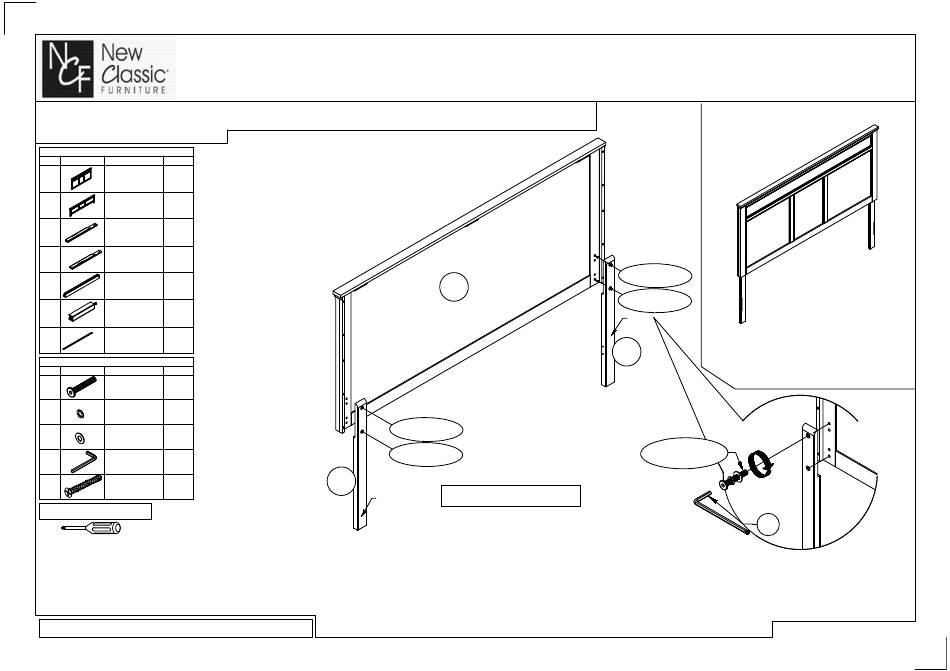

Step 1: Attach and tighten the leg
posts (3 & 4) to the head board (1)
by inserting JCBB bolt (A) with
washers (B & C).
A+B+C
A+B+C
L
3
COMPLETED
ASSEMBLY
A+B+C
D
MADE IN MALAYSIA
4x
PAGE 1 OF 2
