New Classic Furniture B6001-310 Assembly Instructions

Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which
may have come loose inside the carton during shipment. Identify and count all items and compare with the PARTS
LIST and/or HARDWARE LIST shown below.
Caution: Please read the instructions thoroughly before assembly.
1.We recommend that you assemble this product with the assistance of another person; this will make assembly
easier, and will help to eliminate damage to the product or injury to persons during assembly.
2.Please do not over tighten screws or bolts until the assembly is completed.
3.Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps to assemble your newly
purchased product correctly and efficiently.

PARTS LIST

NO. COMPONENT
A
Headboard
B
Footboard
C
Side rail
Headboard
D
Crossbar
E
Left Leg
F Right Leg
G
Roll-Out Slat
H
Rail Support
I Support Leg

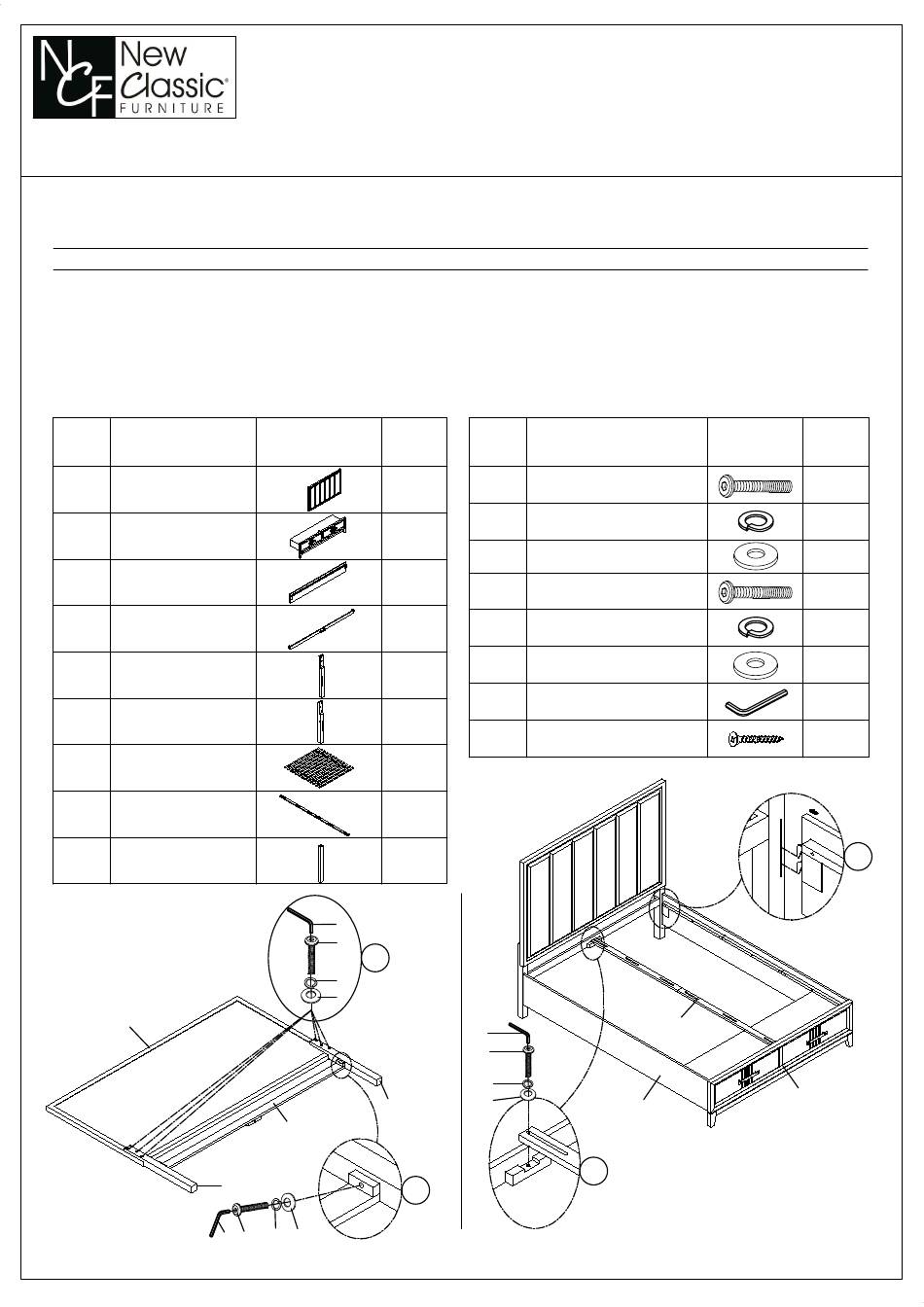

STEP 1

A
7 1 2 3
Assembly Instructions
ITEM: B6001-310 LANDON 5/0 Q HEADBAORD
B6001-328 LANDON 5/0 Q FOOTBOARD & SLATS
B6001-330 LANDON 5/0-6/6 Q/EK SIDE RAILS
Q'TY
DRAWING
1 PC
1 PC
2 PCS
1 PC
1 PC
1 PC
1 SET
1 PC
4 PCS
7
1
x6
2
3
E
D
F
MADE IN VIET NAM
NO. COMPONENT
1
Bolt Ø5/16"x1-3/4"
2
Lock Washer Ø5/16"
3
Flat Washer Ø5/16"x3/4"
4
Bolt Ø1/4"x2"
5
Lock Washer Ø1/4"
6
Flat Washer Ø1/4"x3/4"
7
Allen Key 1/8"
8
Screw #4*1-1/4"
7
4
5
6
x2

HARDWARE LIST

DRAWING
H
C
x2
PAGE: 1 OF 2
Q'TY
8 PCS
8 PCS
8 PCS
6 PCS
6 PCS
6 PCS
1 PC
26 PCS
x4
B
