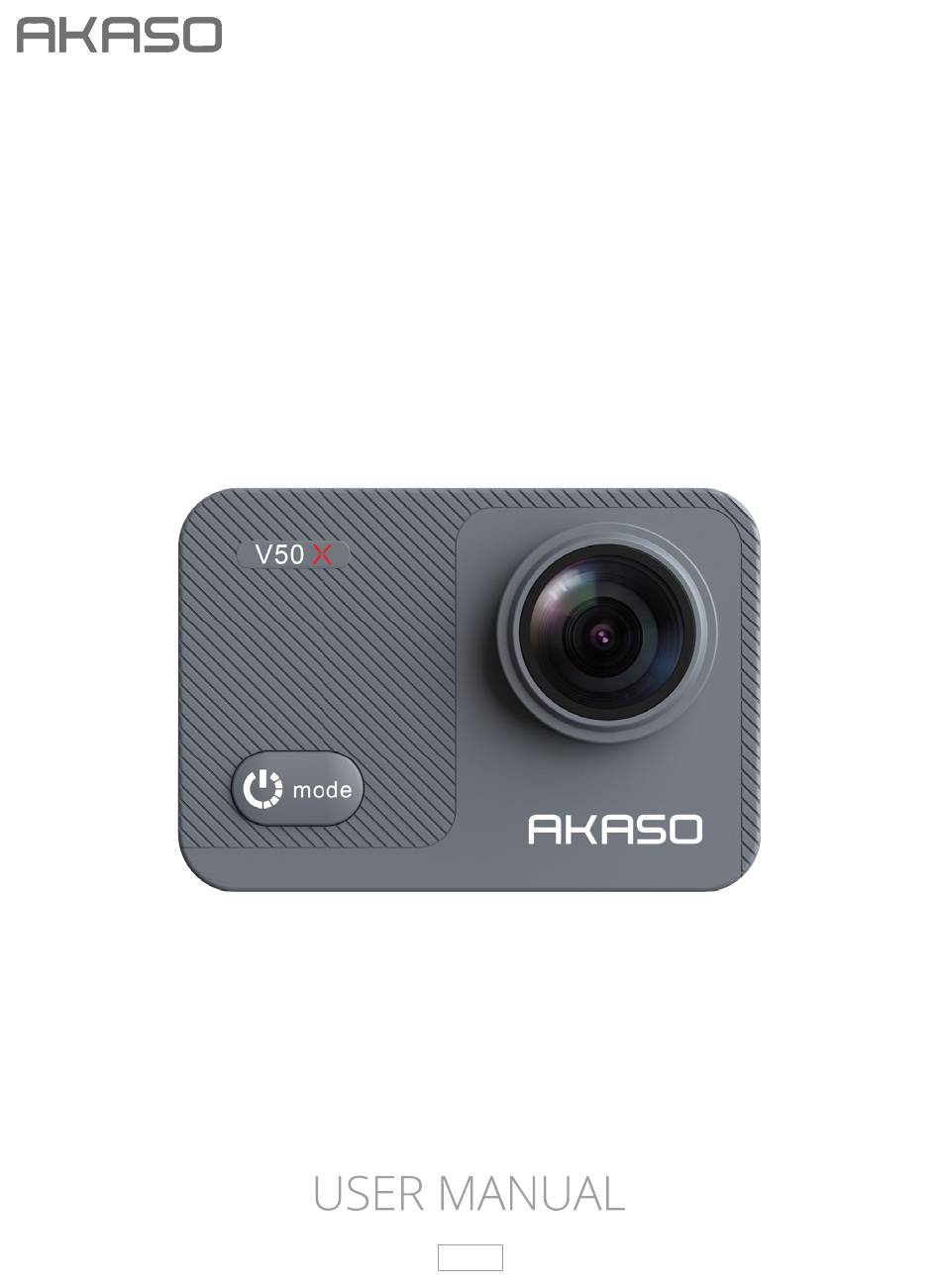

- Page 1 V 5 0 X A C T I O N C A M E R A V2.2...
-
Page 2: Table Of Contents
Overview of Modes------------------------------------------------------------------------ 11 Photo Modes----------------------------------------------------------------------------- 11 Video Modes ----------------------------------------------------------------------------- 13 Wifi Mode --------------------------------------------------------------------------------- 16 Customizing Your V50 X ----------------------------------------------------------------- 17 Photo Settings --------------------------------------------------------------------------- 17 Video Settings --------------------------------------------------------------------------- 19 System Settings ------------------------------------------------------------------------- 21 Connecting to AKASO GO App -------------------------------------------------------- 24 Playing Back Your Content ------------------------------------------------------------- 26 Offloading Your Content ---------------------------------------------------------------- 28... -
Page 3: Camera Specification
Camera Specification Model V50 X 2.0-inch touchscreen Video/Photo format MOV / JPG Port USB Port / Micro HDMI Port Supported but sold separately. Note: Be sure to purchase external microphones compatible with External Mic this camera. Gyroscope 6-axis gyroscope About 120mins of recording time in 4K. -
Page 4: Important Notes
Important Notes Congratulations on your new AKASO V50 X Action Camera! You must be excited to use your new camera, but please spend some time familiarizing yourself with this manual first so that you get the most out of your camera’s features. -
Page 5: What's In The Box
What’s in the Box AKASO V50 X Waterproof Battery Charger Battery USB Cable Housing x 1 Remote Control Remote Control Protective Clip 1 Clip 2 Strap x 1 Backdoor x 1 Buckle Mount J-Hook Mount A Mount C Mount D Mount... -
Page 6: Your V50 X

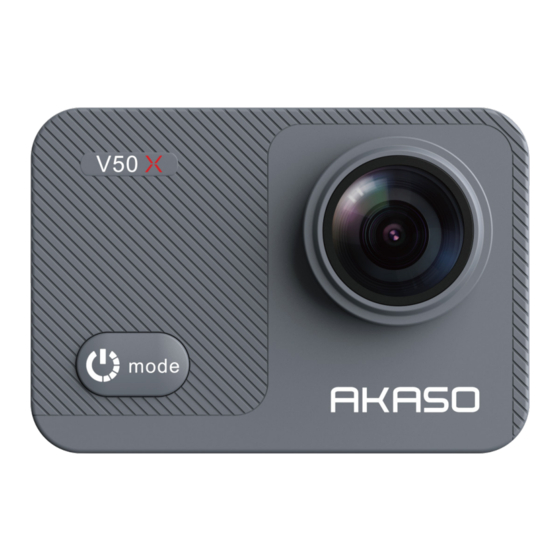

Your V50 X Shutter Button USB / External Mic Port Indicator Light Micro HDMI Port Power/Mode Button Lens Memory Card Slot... - Page 7 Touchscreen Down Button Up Button Battery Cover Speaker Note: The camera does not record sounds when it’s in the waterproof case.
-
Page 8: Getting Started
Getting Started Welcome to your AKASO V50 X action camera. To capture videos and photos, you will need a memory card (sold separately). Using Memory Cards Please use brand name memory cards that meet these requirements: • U3 • Capacity up to 64GB Note: 1. -
Page 9: Charging The Camera
Installing the memory card To install the memory card, first press the charging cover to reveal the memory card slot, then insert the memory card in the orientation shown and close the cover. To remove the card, press down on it till you hear a sound indicating it’s inserted, the memory will then pop out and make another sound. -
Page 10: Button Operation & Indicators
Note: Charging your device using a computer USB port may take longer than using a power adapter, as the output of USB ports is usually lower. It will take approximately three hours to fully charge the battery, so please be patient. Once the battery is fully charged, it can last about 120 minutes of 4K video recording. -
Page 11: Operation Instructions
Operation Instructions Powering on or off To turn on the camera, press and hold the Power button for 3 seconds. You'll hear a beep and see the status light come on. Once information appears on the display screen, you'll know that your camera is powered on. To power off... - Page 12 Zooming in or out On the preview screen, press and hold the Down button, or tap the “+” or “-” icon to adjust the zoom level. V50 X action camera supports up to 4X. Entering the settings screen On the preview screen, press and hold the Shutter button, or tap the Settings icon in the bottom right corner to enter the settings screen.
-
Page 13: Overview Of Modes
Overview of Modes There are 10 modes for the V50 X action camera: Photo, Burst photo, Time Lapse Photo, Long Exposure, Self-Timer, Video, Loop Record, Time Lapse Video, Slow Motion, and Fast Motion. Photo Modes Single Photo Mode In this mode, press the Shutter button to take a photo. The working indicator light will be flashing. - Page 14 Time Lapse Photo Mode In this mode, when you press the Shutter button, the camera will take a series of photos at the set interval. This mode is suitable for taking photos in changeable scenes. 0000 9220 Time Lapse Long Exposure Mode In this mode, when you press the Shutter button, the camera will keep taking photos until the exposure time comes to the end.
-
Page 15: Video Modes
Self-Timer Mode In this mode, the camera takes photos at the set interval, giving a delay between pressing the shutter release and the shutter's firing. It is most commonly used to let photographers to take a photo of themselves. 9220 0000 Self-Timer Video Modes... - Page 16 Loop Record Mode In this mode, when you press the Shutter button, the camera will record videos of the specific length. When the memory card is full, old files will be overwritten by new ones. 00:00:00 03:21:11 Loop Record 4K30fps Time Lapse Video Mode In this mode, when you press the Shutter button, the camera will capture a sequence of video frames at the set interval to condense long events into shorter...
- Page 17 Slow Motion Mode In this mode, when you press the Shutter button, the camera will record videos at the set resolution and slow motion speed. However, the video footage will be saved at a playback speed of 30 frames per second (fps). As a result, when the video is played back, it will appear to be slowed down, creating a visually captivating effect.
-
Page 18: Wifi Mode
Wifi Mode The camera Wifi works to connect the camera to the AKASO GO app to preview or transfer files. When the camera is in Wifi mode, connect your camera to the AKASO GO app. To exit Wifi mode, tap the "X" icon on the Wifi screen. -
Page 19: Customizing Your V50 X
Customizing Your V50 X Photo Settings 1. Resolution 20MP/12M/8M/5M/3M (Default setting is 20MP.) This camera is capable of capturing 20MP photos, with higher resolution offering greater clarity and detail due to the increased number of pixels. However, higher resolution photo also results in larger file sizes. - Page 20 6. Long Exposure 1Sec/2Sec/5Sec/8Sec/30Sec/60Sec ( Default setting is 1Sec.) In this mode, when your press the Shutter button, the camera keeps taking photos until the exposure time comes to the end. This mode is suitable for use in dark, light, and water scenes. Note: Long Exposure is available only in LongExp mode.
-
Page 21: Video Settings
Video Settings 1. Resolution 4K 30fps/2.7K 30fps/2.7K 60fps/1080P 60fps/1080P 30fps/720P 120fps/720P 60fps /720P 30fps (Default setting is 4K30fps.) This camera is capable of recording video up to 4K30fps, with higher resolution offering greater clarity and detail due to the increased number of pixels. However, higher resolution video also results in larger file sizes. - Page 22 5. Slow Motion 2.7K 2X/1080P 2X/720P 4X/720P 2X (Default setting is 2.7K 2X) You can choose the resolution and zoom level before recording slow motion videos. When Slow Motion is enabled, the camera can record video at a higher frame rate and then plays it back at a lower speed, typically 30 frames per second, resulting in a smoother and more dramatic effect.
-
Page 23: System Settings
System Settings 1. Sounds Shutter Tone: On/Off Boot-up Tone: On/Off Beep Tone: On/Off You can turn on or off the shutter, boot-up, and beep tones. Volume: Adjust the camera's volume. 2. Distortion Calibration On/Off (Default setting is Off.) This setting corrects the fisheye effect that can occur in wide-angle shots, resulting in distortion-free images. - Page 24 6. Sharpness Strong/Normal/Soft (Default setting is Normal.) This setting adjusts the sharpness of your scene’s elements to capture fine details, thereby enhancing the overall image or video quality. 7. Diving Mode On/Off (Default setting is Off.) When Diving Mode is enabled, the camera can compensate for the absence of red light in underwater scenes.
- Page 25 Reformatting erases all of your content, so be sure to offload your photos and videos first. 18. Reset Cancel/Confirm This option resets all settings to their default values. 19. About This option allows you to check the brand, model, and firmware version of your camera. Brand: AKASO Model: V50 X Version: SN-AX-**-**-**...
-
Page 26: Connecting To Akaso Go App
App Store or Google Play to your smartphone first. When your camera is connected to the AKASO GO app, you can control it to capture, or change its settings using your phone. You can also live preview, playback, download, edit, and share videos via this app. - Page 27 3. Open the AKASO GO app, tap “Device”→“ Add Device”, then select “V50 X” from the list for connection. 4. Tick "The above operation has been confirmed", and tap "Live Preview". Your camera will be connected to the AKASO GO app.
-
Page 28: Playing Back Your Content
With this method, the playback resolution depends on the resolution of the device and its ability to play back that resolution. Playing Back or Deleting Files on V50 X On the preview screen, press the Down button or tap on the Playback icon in the bottom left corner to enter the playback screen. - Page 29 Playing Back or Deleting Files on the AKASO GO App 1. Open the AKASO GO app, then connect the camera to the app. 2. Tap the Album icon in the bottom left corner to access all the videos and photos.
-
Page 30: Offloading Your Content
files to your computer or delete selected files using File Explorer. Downloading Your Content to A Smartphone 1. Open the AKASO GO app, then connect the camera to the app. 2. Tap the Album icon in the bottom left corner to access all the videos and photos. -
Page 31: Remote Control
2. If you cannot download videos or photos to your iPhone via the app, please enter your phone’s Settings page → Privacy→ Photos, find "AKASO GO", and select "All photos". 3. iPhone does not allow you to download 4K or 2.7K videos via the app. Please transfer these videos to your computer. - Page 32 Video To record video, first make sure the camera is in Video mode. To start recording, simply press the gray video button. The camera will emit one beep with the working indicator light flashing. To stop recording, simply press the gray video button again. The camera will emit one beep with the working indicator light turned off.
- Page 33 2. Remove another 4 screws on PCB board. 3. Lift the PCB board and slide out the battery, as shown in the picture. Note: Do NOT rotate the PCB board to avoid reversing the camera and video button functions. 4. Install the new battery, keeping the “+” pole facing up. 5.
-
Page 34: Maintaining Your Camera
Maintaining Your Camera Please follow these guidelines to get the best performance from your camera: 1. For best audio performance, shake the camera or blow on the mic to remove debris from the microphone holes. 2. To clean the lens, wipe it with a soft, lint-free cloth. Do not insert foreign objects around the lens. -
Page 35: Mounting Your Camera
• Do not make any unauthorized alterations to the camera. Doing so may compro- mise safety, regulatory compliance, performance, and may void the warranty. WARNING: Do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate or paint the camera or battery. Do not insert foreign objects into the battery opening on the camera. -
Page 37: Contact Us
Contact Us (888) 466-9222 (US) cs@akasotech.com www.akasotech.com There is one-year warranty for all our products. We have a professional customer service team at your service at any time. Feel free to contact us by email, we will respond within 24 hours, and spare no efforts to resolve your issues till you are satisfied.
