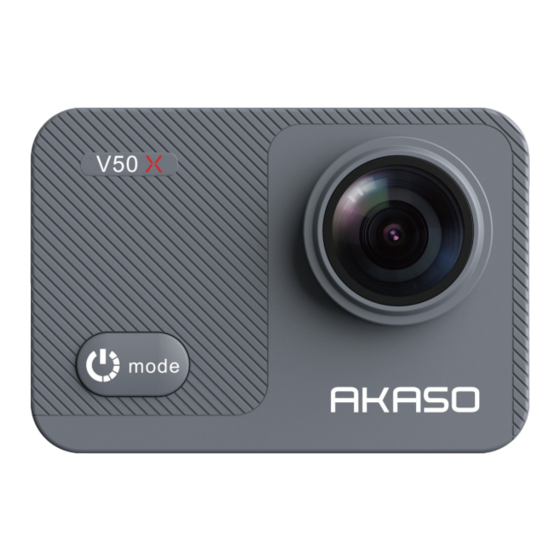

Akaso V50 X User Manual
Hide thumbs Also See for V50 X:

Advertisement

Quick Links

V 5 0 X
A C T I O N
C A M E R A
V2.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V50 X and is the answer not in the manual?

Questions and answers

Summary of Contents for Akaso V50 X

  • Page 1 V 5 0 X A C T I O N C A M E R A V2.0...
  • Page 2: Table Of Contents

    Connecting to the AKASO GO App ------------------------------------------------------ 28 Playing Back Your Content ---------------------------------------------------------------- 30 Playing Back or Deleting Files on V50 X ---------------------------------------------- 30 Playing Back or Deleting Files on AKASO GO App -------------------------------- 31 Downloading Your Content --------------------------------------------------------------- 32 Offloading Your Content to Computer ----------------------------------------------- 32...
  • Page 3 Remote Control-------------------------------------------------------------------------------- 33 Video-------------------------------------------------------------------------------------------- 34 Photo ------------------------------------------------------------------------------------------- 34 CR2032 Battery Replacement for Remote ------------------------------------------ 34 Maintaining Your Camera------------------------------------------------------------------ 36 Maximizing Battery Life--------------------------------------------------------------------- 36 Battery Storage and Operation ---------------------------------------------------------- 36 Mounting Your Camera--------------------------------------------------------------------- 37 Q&A------------------------------------------------------------------------------------------------ 39 Contact Us--------------------------------------------------------------------------------------- 40...
  • Page 4: Camera Specification

    Specifications Model V50 X Master Icatch 2.0-inch touchscreen Video/Photo format MOV/JPG Port Micro USB 2.0, Micro HDMI Support (Exclusive to AKASO Cameras Only) External Mic Gyroscope 6-axis gyroscope Battery 4.2V 1350mAh Battery life Around 120mins when fully charged Lens Aperture...
  • Page 5: Critical Notes

    Congratulations on your new AKASO Action Camera V50 X! You must be excited to use your AKASO V50 X. However, please spend time reading this manual before using it. You need to get to know all the features now so as to get the most out of it.
  • Page 6: What's In The Box

    What’s in the Box AKASO V50 X Waterproof Battery Charger Battery USB Cable Housing x 1 Remote Control Remote Control Protective Clip Clip 2 Strap x 1 Backdoor x 1 Mount 1 Mount 2 Mount 3 Mount 4 Mount 5...
  • Page 7: Your V50 X

    Your V50 X...
  • Page 8 Shutter Button Lens Indicator Light Screen Power/Mode Button Up Button Memory Card Slot Speaker Micro USB Port Down Button Micro HDMI Port Battery Door Note: The camera does not record sounds when it’s in the waterproof case.
  • Page 9: Getting Started

    Getting Started Welcome to your AKASO V50 X. To capture videos and photos, you need a memory card (sold separately) to start recording. Memory Cards Please use brand name memory cards that meet these requirements: • U3 rating • Capacity up to 64GB Note: 1.
  • Page 10 • Please do not insert the memory card into other digital cameras. If you want to insert different memory cards into this action camera, please format them first. • Please do not insert the memory card formatted in a digital camera or a card reader into the action camera.
  • Page 11: Removing&Installing Waterproof Case

    00:00:00 03:21:11 Power Frequency Cancel Format Card Confirm Reset Normal 4K30fps Note: • Please refer to requirements in this manual to purchase memory cards of well-known brands. • Please format the memory card in the camera before using. • If the memory card you use is incompatible with your camera, the camera will pop out messages saying “Please format card”...
  • Page 12 Rotate mount 1 conterclockwise with Detach the waterproof case from the your hands or the spanner. mount buckle. For further details, please click the following link to watch the video showing how to remove the waterproof case from the packing box: How to remove the camera from the waterproof case? Open the back door of Remove the camera from...
  • Page 13: Charging&Installing Battery

    PRESS Press down the back door to ensure tightness. Charging and Installing Battery Charging To charge the battery separately, insert it into the battery charger, then plug in the battery charger with the USB cable. When the battery is fully charged, insert it into the battery slot, then turn on the camera.
  • Page 14: Button Operation Instructions

    Installation Slide from left to right to Insert the battery, press it Put back the battery door open the battery cover. down till it’s installed in the to close it. battery slot in place. Warm tip: Please mind the positive and negative poles before installing the battery. Button Operation Instructions Operation/Status Press the Shutter button to confirm the option.
  • Page 15 Charging indicator light The red light stays on while charging and goes out when fully charged. Flashes red when the Wifi turns on, stays on when connected and Wifi indicator light goes out when off. 1. Powering on/off Long press the Power button to turn on the camera, the status indicator light will stay on, and the camera screen will display the preview interface.
  • Page 16: Camera Modes

    Camera Modes There are 10 modes for the V50 X: Photo, Burst photo, Time Lapse Photo, Long Exposure, Self-Timer, Video, Loop Record, Time Lapse Video, Slow Motion, Fast Motion. Photo Mode In the photo mode, press the Shutter button to take a photo. The status indicator light will also be flashing.
  • Page 17 Time Lapse Photo Mode In this mode, press the Shutter button, the camera will take a series of photos at specific time intervals. This mode is suitable for taking photos in changeable scenes. 0000 9220 Time Lapse Long Exposure Mode The cameras takes photos at specific time intervals in this mode.
  • Page 18: Video Mode

    Self-Time Mode In this mode, the camera takes photos at specific intervals, giving a delay between pressing the shutter release and the shutter's firing. It is most commonly used to let photographers to take a photo of themselves. 0000 9220 Self-Time Video Mode In the Video mode, press the Shutter button to start or stop recording videos.
  • Page 19 Loop Record Mode In this mode, the camera records videos of specific lengths. When the memory card is full, old files will be overwritten by new ones. This mode is suitable for taking videos in a long journey. 00:00:00 03:21:11 Loop Record 4K30fps Time Lapse Video Mode...
  • Page 20 Slow Motion Mode The camera records videos at specific resolutions and zoom level. For example, the camera will create a 2-minute 2.7K slow motion video if you choose option 2.7K 2X to record a video for 1 minute. This mode is suitable for capturing scenes where fast movements are resolved.
  • Page 21: Wifi Mode

    SSID:AKASO_V50 X_**** PWD:1234567890 Loop Normal TimeLapse Record Waiting for Wifi Connection... Press Up key to turn off Wifi SlowMotion FastMotion Wifi For further details regarding the app connection, please refer to Connecting to AKASO GO App starting from Page 28.
  • Page 22: Customizing Your V50 X

    Customizing Your V50 X Photo Settings 1. Resolution 20MP/12M/8M/5M/3M (Default setting is 20MP.) Choose the photo resolution. The higher resolution, the better the photo quality. 2. Output Format JPEG/JPEG+DNG. (Default setting is JPEG.) This setting allows you to choose the image format you want. DNG file extension refers to a raw Image format.
  • Page 23: Video Settings

    Recommended in the Long Exposure mode, set the exposure time for taking long exposure photos. The longer the exposure time, the longer the photo is exposed. Note: Long Exposure works in the LongExp mode only. 7. Exposure Value -2/-1.7/-1.5/-1.3/-1/-0.5/-0.3/0/+0.3/+0.5/+1/+1.3/+1.5/+1.7/+2 (Default setting is 0.) By default, your camera uses the entire image to determine the appropriate exposure level.
  • Page 24 Note: When capturing videos at high resolutions or high frame rates in warm ambient temperatures, the camera may become warm and consume more power. 2. Image Stabilization On/Off (Default setting is off.) This feature determines the smoothness of videos. When it’s enabled, the shooting angle will be narrowed.
  • Page 25: System Settings

    6. Fast Motion 2X/4X/6X/10X/15X (Default setting is 2X) Suitable for the Fast Motion mode. You can choose the resolution and zoom level before recording fast motion videos. Note: Fast Motion works in the Fast Motion mode only. 7. Microphone Built-in/External (Default setting is Internal) You can choose between the internal and external microphones.
  • Page 26 Beep Tone: On/Off You can turn on or off the shutter, boot-up and beep tones. Volume: Adjust the camera's volume. 2.Distortion Calibration On/Off (Default setting is Off.) When Distortion Calibration is enabled, the image distortion will be corrected, and the angle will become smaller. Note: In the video mode, Distortion Calibration only works when Image Stabilization is enabled at the same time, and the opening angle of Distortion Calibration in the video mode is slightly smaller than that in the photo mode.
  • Page 27 8. WDR On/Off (Default setting is Off.) Wide Dynamic Range (WDR) retains a greater level of details in the dark and bright areas of an image. The result is that a photo is properly exposed in the two extremes. This setting is especially useful for scenes that are backlist or that have large bright regions.
  • Page 28 first. 18. Reset Cancel/Confirm This option resets all settings to their default values. 19. About You can check the model and version of your V50 X. Model: V50 X Version: SN-AX- ** - ** - **...
  • Page 29: Connecting To The Akaso Go App

    Connecting to AKASO GO App Please download and install the AKASO GO app on the App Store or Google Play first. The AKASO GO app lets you control your camera remotely using a smartphone or tablet. Features include camera control, live preview, playback, download and settings.
  • Page 30 3. Open the AKASO GO app, tap “Device” → “Add device”, choose “V50 X”. 4. Click "Operations Above Confirmed", and click "Live Preview", your camera will connect with the AKASO GO app.
  • Page 31: Playing Back Your Content

    files to a computer. Transferring also frees up space on your memory card for new contents. Playing Back or Deleting Files on V50 X Press the Down button or tap the Playback icon to enter the playback interface. 00:00:00...
  • Page 32: Playing Back Or Deleting Files On Akaso Go App

    Playing Back or Deleting Files on AKASO GO App 1. Open the AKASO GO app. Connect the camera with the app. For further details regarding the app connection, please refer to Connecting to AKASO GO App starting from Page 28.
  • Page 33: Downloading Your Content

    USB port. You can then transfer files to your computer or delete selected files by using file explorer. Downloading Your Content to Smartphone 1. Open the AKASO GO app. Connect the camera with the app. For further details regarding the app connection, please refer to Connecting to AKASO GO App starting from Page 28.
  • Page 34: Remote Control

    1. If you cannot download videos or photos to iPhone, please enter Setting →Privacy → Photos, find "AKASO GO" and select "All photos". 2. iPhone does not allow you to download 4K or 2.7K videos via the app. Please offload 4K or 2.7K videos via a card reader.
  • Page 35: Video

    Video To record a video, make sure the camera is in Video mode. To start recording: Press the gray Video button. The camera beeps and the camera status light flashes while recording. To stop recording: Press the gray Video button again. The camera beeps and the camera status light stops flashing.
  • Page 36 3. Lift the PCB board and slide out the battery, as shown in the picture. Note: Do NOT rotate the PCB board to avoid reversing the camera and video button functions. 4. Install the new battery, keeping the “+” pole facing up. 5.
  • Page 37: Maintaining Your Camera

    Maintaining Your Camera Please follow these guidelines to get the best performance from your camera: 1. For best audio performance, shake the camera or blow on the mic to remove debris from the microphone holes. 2. To clean the lens, wipe it with a soft, lint-free cloth. Do not insert foreign objects around the lens.
  • Page 38: Mounting Your Camera

    • Do not make any unauthorized alterations to the camera. Doing so may compro- mise safety, regulatory compliance, performance, and may void the warranty. WARNING: Do not drop, disassemble, open, crush, bend, deform, puncture, shred, microwave, incinerate or paint the camera or battery. Do not insert foreign objects into the battery opening on the camera.
  • Page 40: Q&A

    A1: 1. Take battery out of the camera. 2. Charge the camera with another working USB cable to check if you can see the icon AKASO on the screen. 3. Check if you can hear any boot-up sound when you turn on the camera.
  • Page 41: Contact Us

    2. If the Wifi information does not show on the camera screen or the camera Wifi does not appear in your phone’s Wifi list, please contact customer support for further help. Q4: What should you do if the battery does not hold a charge? A4: 1.
