- Page 1 All manuals and user guides at all-guides.com Ceramic Glass Hob User & installation manual NZ64R3525CK/EG...
- Page 2 All manuals and user guides at all-guides.com 2 English...
-
Page 3: Table Of Contents
All manuals and user guides at all-guides.com Contents Using this manual The following symbols are used in this User Manual: Safety instructions Important safety precautions Installation Safety instructions for the installer Power connection Cabinet mount Parts and Features (Continued) Cooking zones and control panel What’s included Before you start Initial cleaning... -
Page 4: Using This Manual
All manuals and user guides at all-guides.com Using this manual Thank you for choosing SAMSUNG Built-In Cooktop. This User Manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this User Manual before using your oven and keep this book for future reference. -
Page 5: Safety Instructions
All manuals and user guides at all-guides.com Safety instructions The safety aspects of this appliance comply with all accepted technical and safety standards. However, as manufacturers we also believe it is our responsibility to familiarize you with the following safety instructions. - Page 6 All manuals and user guides at all-guides.com Safety instructions since they are not considered to be a reliable fixing means. WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock. During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the hob.
- Page 7 All manuals and user guides at all-guides.com appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents. The surfaces are liable to get hot during use. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
- Page 8 All manuals and user guides at all-guides.com Safety instructions Always ensure that the hotplate and the base of the pan are kept dry. The cooking zones will become hot when you cook. Always keep small children away from the appliance. Keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children.
- Page 9 All manuals and user guides at all-guides.com Keep pets away from the appliance because pets may step on the controls of the appliance, causing an malfunction. DISPOSING OF ThE PACKAGING MATERIAl WARNING All materials used to package the appliance are fully recyclable. Sheet and hard foam parts are appropriately marked.
- Page 10 All manuals and user guides at all-guides.com Safety instructions CE Declaration of conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. This appliance has been designed to be used only for home cooking. Any other use (such as heating a room) is improper and dangerous.
-
Page 11: Installation
All manuals and user guides at all-guides.com Installation installed above the appliance, the safety Warning: This appliance must be distance between cooktop and any installed by an authorised service cupboard/cooker hood should be as person or qualified technician, according shown below. to the instructions in this guide and in compliance with the current local regulations. - Page 12 All manuals and user guides at all-guides.com Installation appliance’s power rating (also indicated on > 25 and ≤ 32 > 4 and < 6 the identification plate). > 10 and ≤ 16 > 1.5 and < During installation, please ensure that isolated cables are used.
-
Page 13: Cabinet Mount
All manuals and user guides at all-guides.com Cabinet mount The appliances are supplied with installation kits and can be installed in a worktop with the appropriate dimensions. The dimensions for hob and oven installation are given below. • The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, • Installation of the yellow-green... - Page 14 All manuals and user guides at all-guides.com Installation Installation dimensions for vitroceramic Installation dimensions for oven A1(mm) E1 (mm) A2 (mm) E2 (mm) B2 (mm) min. F2 (mm) 560- B1 (mm) min. F1 (mm) C1 (mm) min. G1 (mm) C2 (mm) min.
- Page 15 All manuals and user guides at all-guides.com The thickness of the worktop, the distances between the hob and the oven must be as shown in the figures for air circulation. min. K (mm) min. M (mm) min. L (mm) Before the Installation of the appliance; • First, Screw the 8 worktop mounting brackets on to the side walls of the appliance.
- Page 16 All manuals and user guides at all-guides.com Installation • Apply the supplied one-sided self-adhesive sealing tape all the way around the lower edge of the cooktop. Do not stretch it. Warning Be careful not to overlap the mounting bracket over the sealing tape.
-
Page 17: Parts And Features (Continued)

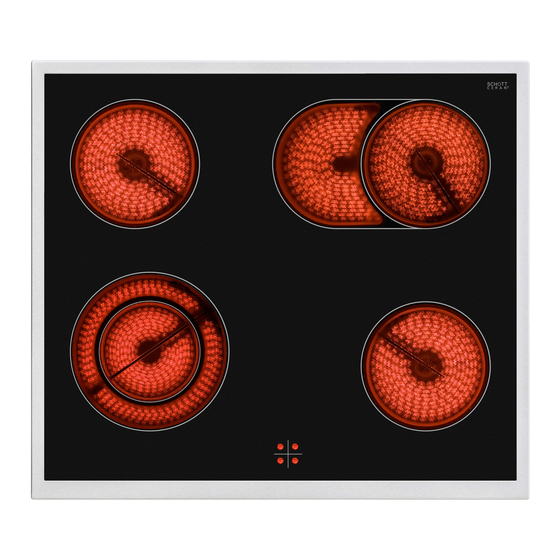

All manuals and user guides at all-guides.com Parts and Features Cooking zones and control panel Single cooking zone 1200 Casserole cooking zone 1800 W 260 mm 155 mm Single cooking Residual Heat zone 1200 W Indicator Double cooking zone 1700 W Timer Oven Thermostat Light Hob Cooking Zone Light... -
Page 18: What's Included
All manuals and user guides at all-guides.com Parts and Features (Continued) What’s included Ceramic Glass Hob Self-adhesive Mounting Bracket (4+4 ) sealing tape ST3,5 x L9,5 User and Installation Mounting Bracket Manual Screw (8) The key features of your appliance • C eramic glass cooking surface: The appliance has a ceramic glass cooking surface and four rapid - response cooking zones. - Page 19 All manuals and user guides at all-guides.com • H ob Control Knob: 4 position knob. that controls each cooking zone on the hob. Turn the knob to the corresponding symbol of the desired heat level.For the details of dif- ferent functions see ´ Hob Use`. • H ob Cooking Zone Light: The on/off light on the control panel will show if any of the ceramic heaters are in use.
-
Page 20: Before You Start
All manuals and user guides at all-guides.com Before you start Initial cleaning Wipe the ceramic glass surface with a damp cloth and ceramic cooktop glass cleaner. Important: Do not use caustic or abrasive cleaners. The surface could be damaged. Hob Use Using suitable cookware Better pans produce better results. - Page 21 All manuals and user guides at all-guides.com • Always position pots and pans before the table below. switching on the cooking zone. Knob Position Function • Dirty cooking zones and pan bases in crease power consumption. Off position • When possible, position the lids firmly Keep warm position on the pots and pans to cover complete Heating position at low heat • S witch the cooking zones off before the end of the cooking time to use the...
-
Page 22: Maintenance
All manuals and user guides at all-guides.com Maintenance Cleaning and Care Important: There is a risk of burning yourself when the glass scraper is used Important: Cleaning agents must not on a hot cooking zone: come into contact with a heated ceramic glass surface: All cleaning agents must be 2.Clean the hob as normal when it has removed with adequate amounts of clean... - Page 23 All manuals and user guides at all-guides.com surface or for storage. • Do not operate a cooking zone if there is no pan on the cooktop or if the pan is empty. • C eramic glass is very tough and resistant to temperature shock, but it is not unbreakable. It can be damaged by a particularly sharp or hard object dropping onto the cooktop.
-
Page 24: Warranty And Service
All manuals and user guides at all-guides.com Maintenance Warranty and Service If you request a service call because of When do you incur costs even during the an error made in operating the appliance, warranty period? the visit from the customer service tech- • i f you could have remedied the problem nician may incur a charge even during yourself by applying one of the solu-... -
Page 25: Troubleshooting & Transport
Do not attempt any further repairs if the following instructions do not help in each specific case. If the problem continues, contact a local Samsung service centre. Warning: Repairs to the appliance are to be performed only by a qualified service technician. -
Page 26: Transport
All manuals and user guides at all-guides.com Problem Possible Cause Solution What should I do if, after The cooking zone was only • the cooking zones have briefly used and therefore did • Check for the been switched off, resid- not become hot enough. -
Page 27: Appendix
All manuals and user guides at all-guides.com Appendix Appliance dimensions Width 590 mm Depth 520 mm Height 46 mm Worktop cut - out dimensions Width 560 mm Depth 490 mm Corner radius 3 mm Cooking rings Position Diameter Power Front left 120/190 mm 700/1700 W Rear left... -
Page 28: Product Data Sheet
All manuals and user guides at all-guides.com Product data sheet Supplier’s name Samsung Electronics co. Ltd. Model identification NZ64R3525CK Type of hob Built-In heating technology Radiant cooking zones Number of cooking zones and/or areas For circular cooking zones or area: diameter of useful Dual: 19.0 cm... - Page 29 All manuals and user guides at all-guides.com QUESTIONS OR COMMENTS? COUNTRY CAll OR VISIT US ONlINE AT GERMANY 06196 77 555 77 www.samsung.com/de/support...
