Summary of Contents for UNI-T UT-P35

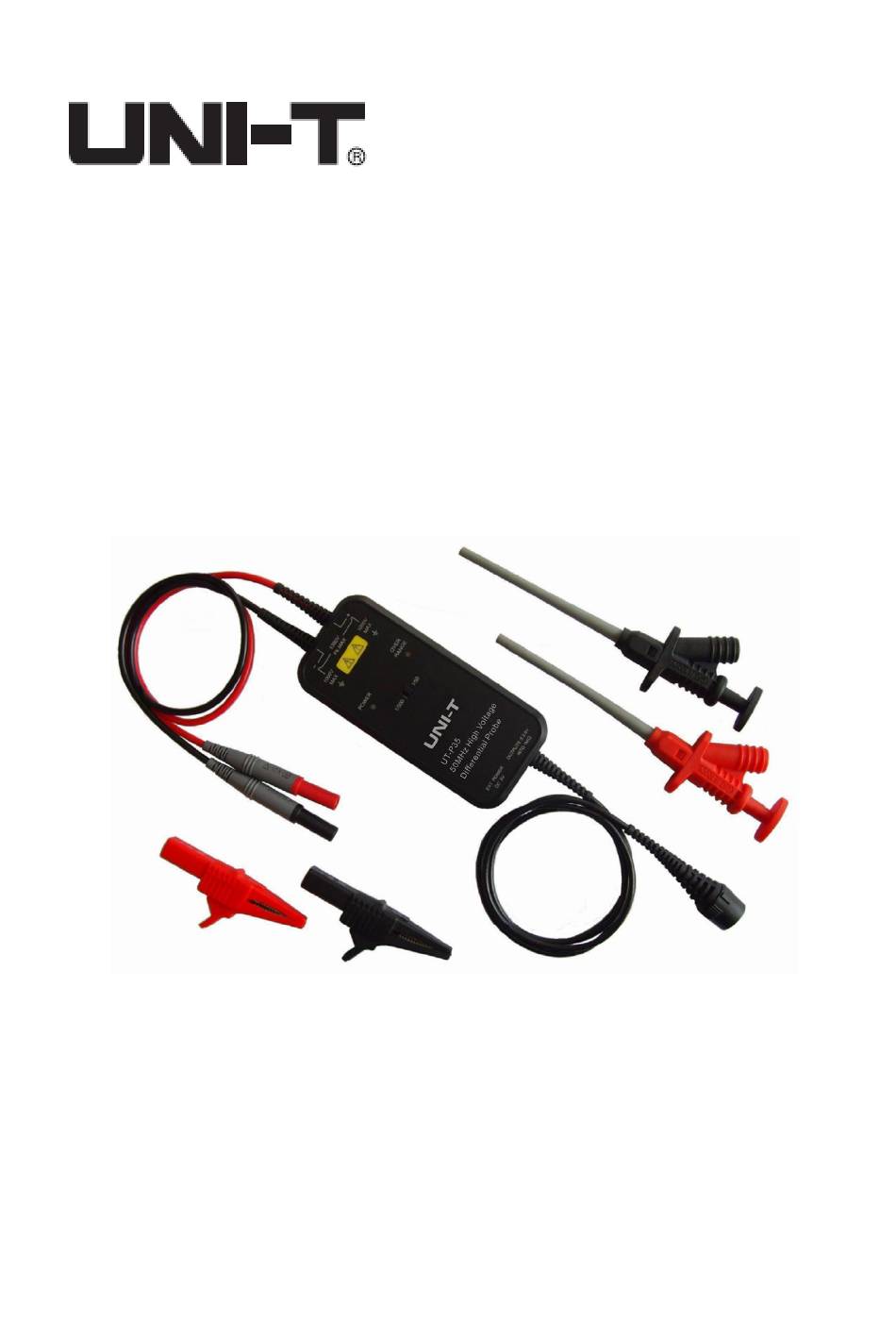

- Page 1 UT-P35&UT-P36 High Voltage Isolating Probes Instruction Manual...
- Page 2 Please read the instruction manual carefully to avoid injury and prevent damage to this product. Ver. 1.0 2021-05-19...
- Page 3 Preface At first, thank you very much for using our product UT-P35&UT-P36 high voltage isolating probes. This instruction manual includes safety summary, brief introduction, main specifications and operating basics etc. Please read the manual carefully prior to use the product.
-
Page 4: Table Of Contents
Table of contents 1. Safety Summary …………………………………………4 2. Brief Introduction…………………………………………5 3. Main Specification ………………………………………6 4. Unpacking and Preparation for Use ………………………8 5. General View of Product …………………………………9 6. General View of Accessories………………………………10 7. Operating Basics …………………………………………11... -
Page 5: Safety Summary
1. Safety Summary Please Review the following safety precautions to avoid injury and prevent damage to this product or any products connected to it. Use proper AC adapter. Use only the AC adapter specified for this product. Connect and disconnect properly. Connect the probe output to the measurement instrument before connecting the probe to the circuit under test. -
Page 6: Brief Introduction
UT-P35&UT-P36 high voltage isolating probe has over range alarm function. It indicates with a red LED. UT-P35&UT-P36 high voltage isolating probe is small and robust. It has very high stability, reliability and accuracy. It may be used at the following location usually:... -
Page 7: Main Specification
3. Main Specifications Electrical Specification Model UT-P35 UT-P36 Bandwidth (-3dB) 50MHz 100MHz Rise time 3.5ns Accuracy ± 2% Attenuation 1/50, 1/500 Between each input to ground: 4MΩ Input resistance Between inputs: 8MΩ Between each input to ground: 7pF Input capacitance Between inputs: 3.5pF... - Page 8 AC adapter output DC9V，1000mA AC adapter input AC100~240V，50~60Hz Typical mechanical specification Input cable length UT-P35：60cm；UT-P36：30cm Output cable length 90cm Alligator clips 85×40×13（mm） Pincer clips 160×45×13（mm） Probe body 120×55×24（mm） Weight (probe only) 160g Environment Specification Operating temperature 0~40℃ Storing temperature -10~45℃...
-
Page 9: Unpacking And Preparation For Use
4. Unpacking and Preparation for Use 4-1 Unpacking This product has been checked and tested for the quality before it comes out of the factory. Please check if there is damage during the transportation when unpacking. If there is, please inform the transportation company and the local agent immediately. -
Page 10: General View Of Product
5. General View of Product... -
Page 11: General View Of Accessories
6. General View of Accessories UT-P35&UT-P36 high voltage isolating probe includes following accessories: An AC adapter, a couple of alligator clips and a couple of pincer clips. AC adapter 2. A lligator clips Pincer clips... -
Page 12: Operating Basics
7. Operating Basics is very convenient UT-P35&UT-P36 high voltage isolating probe to operate. But we suggest every new user should read the manual perfectly prior to begin operating. 7-1 Operation steps a. Check and affirm the AC adapter input voltage is correct prior to use. - Page 13 7-2 Attention to use： a. Twisting the input leads as following helps to cancel noise that is induced into the input leads and to improve the high frequency response of the inputs. b. Do not extend input cables if not necessary, this will lead to more noise.
