LEDVANCE
Luminaire Installation Guide

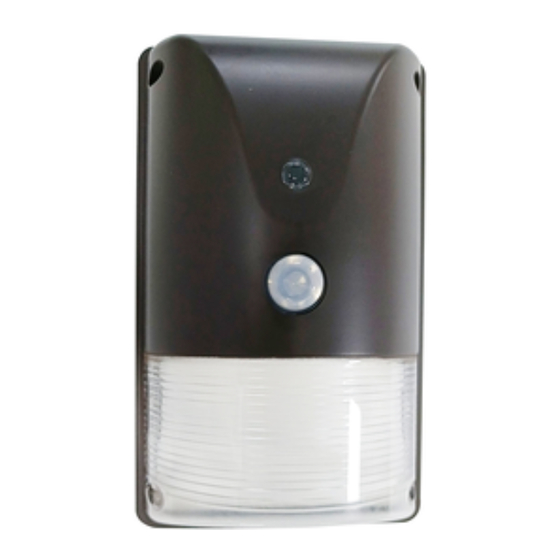

Emergency Mini Wall Pack
The Performance Class EM Mini Wall Pack
luminaires offers up to 67% in energy savings.
Designed for egress lighting with 600 lumens in
emergency mode, this luminaire includes a test
button to meet local codes. Ideal in place of
traditional luminaires, or as new installations, the
EM Mini Wall Pack is offered in a single wattage
with three CCTs for illuminating building
exteriors, outdoor corridors, walkways, and
stairwells.
For warranty coverage, please register at www.ledvanceUS.com
Please Read All Instructions Before Attempting Installation
•
Do not use an electric generator to test the LED luminaire.
•
Please abide by related country, regional and local law and regulations when install this fixture.
•
Please don't install the fixture when raining to lower the risk of electric shock and avoid the failure.
•
To avoid possibility of electrical shock or fire, the installation personnel must have professional electric knowledge.
•
Please wear gloves to avoid injury before installation.
•
If there is any smoke or spark, please turn off the power immediately and notify relevant personnel.
•
Minimum 90ºC Supply Conductors
•
This product must be installed in accordance with the applicable installation code by a person familiar with the constructions and
operations of the product and the hazard involved.
4090940
WARNING
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Ledvance Emergency Mini Wall Pack
Summary of Contents for Ledvance Emergency Mini Wall Pack
- Page 1 LEDVANCE Luminaire Installation Guide Emergency Mini Wall Pack The Performance Class EM Mini Wall Pack luminaires offers up to 67% in energy savings. Designed for egress lighting with 600 lumens in emergency mode, this luminaire includes a test button to meet local codes. Ideal in place of...
- Page 2 Safety Precautions: IMPORTANT: READ CAREFULLY BEFORE INSTALLING THE FIXTURE. RETAIN FOR FUTURE REFERENCE. GENERAL: Upon receipt of the fixture, thoroughly inspect for any freight damage which should be brought to the attention of the delivery carrier. Color Selection Switch: -Open fixture and adjust switch to desired CCT, color temperature Trouble Shooting Checklist Check your power source.
- Page 3 Installation- junction box 1. Disconnect Power 2. Loosen the four screws and remove rubber plug 3. Remove the ½” end cap 4. Peel off the yellow sticker and affix it to the corresponding surface of the luminaire 5. Remove the ½” end cap and pull wires though. Secure to the 6.
- Page 4 Installation 9. Reconnect the power. Confirm the emergency function works by pushing the test button Wiring Diagram 4090940...
- Page 5 LEDVANCE Guide d’installation des luminaires Mini pack mural d’urgence Les luminaires Performance Class EM Mini Wall Pack offrent jus qu’à 67 % d’économies • d’énergie. Conçu pour l’éclairage de sortie de 600 lumens en mode d’urgence, ce luminaire comprend un bouton de test pour répondre aux codes locaux.
- Page 6 Measures De Precautions: IMPORTANT: BIEN LIRE AVANT D’EFFECTUER L’INSTALLATION DU LUMINAIRE. GARDER POUR RÉFÉRENCE FUTURE. GÉNÉRAL : lors de la réception du luminaire, inspecter le produit et s’assurer qu’aucun dommage n’est survenu pendant l’expédition, aviser immédiatement le transporteur si vous constatez des dommages Commutateur de sélection de la puissance -Ouvrir le luminaire et ajuster l’interrupteur au CCT souhaité, température de couleur Liste de vérification pour le dépannage...
- Page 7 Installation- boîte de jonction 1. Couper l’alimentation 2. Desserrer les 4 vis 3. Retirer l’embout de ½ po 4. Retirer le collant jaune et le mettre sur la surface du luminaire correspondante pertinente 5. Retirer l’embout de ½ po insérer les fils. Rattacher la 6.
- Page 8 Installation- boîte de jonction 9. Rétablir l’alimentation Schéma de câblage 4090940...
