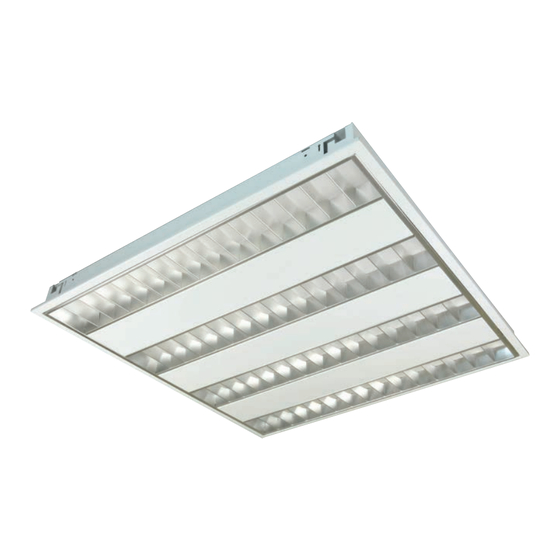

Ledvance FK-B-LED-4/10W Operating Instructions Manual

Please read these instructions carefully before installation. Installation and repair must be done by a professional person.
Item no. Model
27655 FK-B-LED-4/10W
27657 FK-B-LED-4/10W

Warnings

1. Luminaire is suitable for mounting in standard (system) ceilings.
2. Only suitable for mounting in dry rooms.
3. Not suitable for dusty environments, with explosion-hazard areas and areas where highly flammable goods are stored.
4. Only suitable for indoor use.
5. Keep out of reach of children.
6. Turn off the power supply, installation and maintenance to prevent electric shock.
7. Installation, maintenance and removal only by authorized installer.
8. Risk of injury if the above instructions are not followed.
9. The fixture must not be blocked by insulation materials.
10. The warranty does not cover improper installation caused by failure to follow the installation instructions provided in this guide.

Maintenance

1. Turn off the power supply to the fixture before maintenance / cleaning work is carried out.
2. Use a dry or slightly damp cloth for cleaning (using no chemicals or detergent).
3. Installation, maintenance and removal only by authorized installer.
This luminaire is equipped with a GST-18 connector. Connecting through the GST socket.
1. 2.
3. 4.
5. 6.
This marking indicates that this product should not be disposed with other household waste throughout the EU. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return
and collection systems or contact the retailer where the product was purchased.
This product complies with the requirements of the European Community.
Tested according to LVD 2006/95/EC: EN 60598-1:2008+A11:2009, EN60598-2-2:2012, EN62493:2010, EN62471:2008
Tested according to EMC 2004/108/EC: EN55015:2013, EN61000-3-2:2006+A1:2009+A2:2009, EN61000-3-3:2013, EN61547:2009
Tested according to RoHS 2011/65/EU

Operating Instruction manual LED fixtures

Please keep this instruction well for your reference.
Lumen Color temp. Wattage
3150 Lm 3000K 4 x 10W
2820 Lm 4000K 4 x 10W

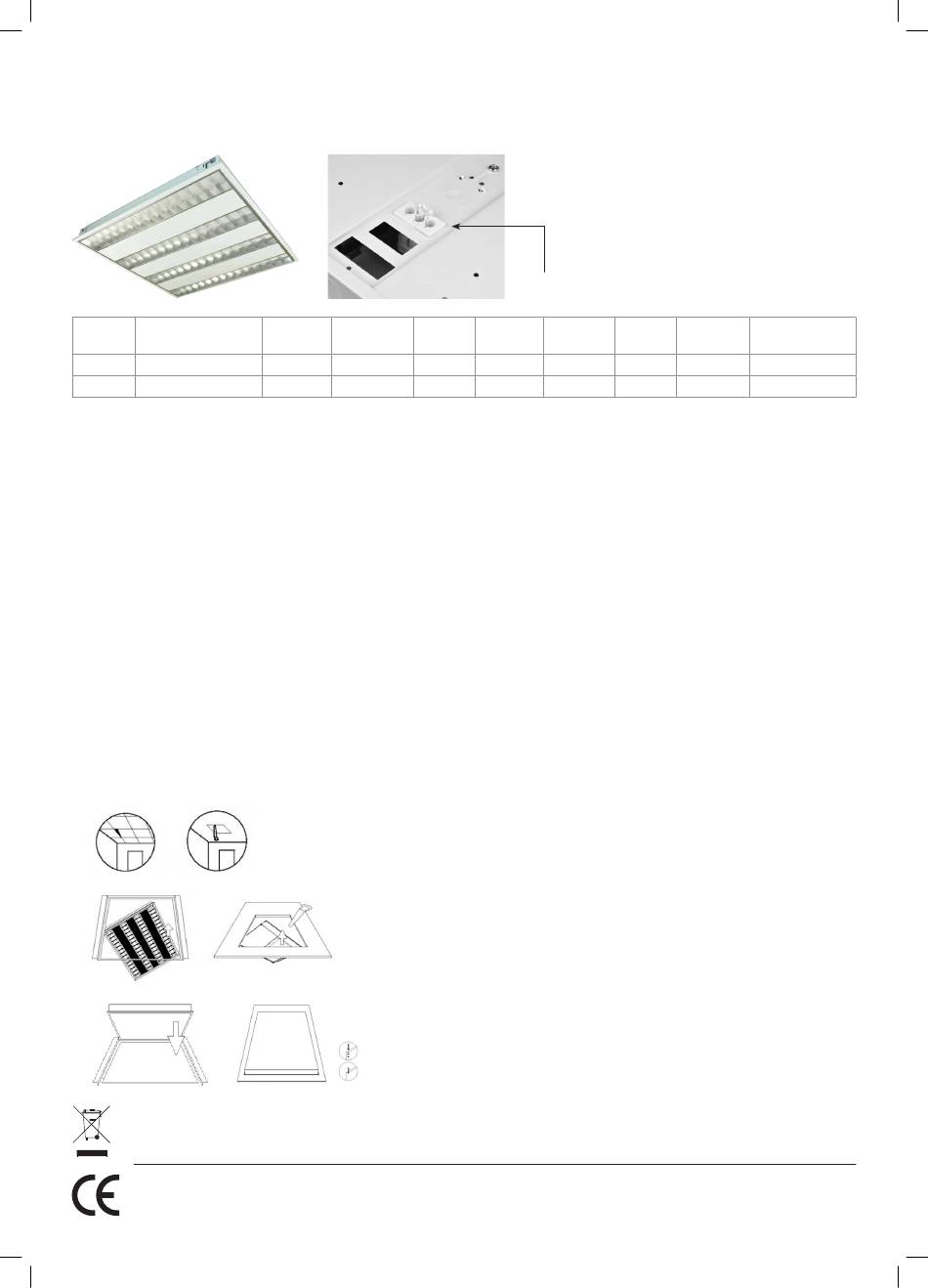

1. Make a hole or space in the ceiling to place the fixture. See picture 1 & 2.
2. Place the fixture in the hole, see picture 3 & 4.
3. Keep in balance and fix the fixture, see picture 5 & 6.
4. Connect the GST18 connector cable to the fixture (not included).
5. The fixture / luminaire is ready for use.

GST18 connector

Voltage Frequency IP Rating Protection
(Hz)
220-240V 50 IP20
220-240V 50 IP20
Dimmensions
Class LxBxH (mm)
I 595 x 595 x 52
I 595 x 595 x 52
