- Page 1 PGD1032 PGD1032H 140-FA Engine Honda GX35 Engine Gasoline Post Driver Operator’s Manual www.ChainLinkFittings.com | (800) 878-7829 | Sales@ChainLinkFittings.com...
-
Page 2: Table Of Contents
Engine Maintenance ................................9 Post Driver Maintenance ..............................11 Warranty ......................................13 Registration ....................................14 Product Data Sheet – PGD1032 ...............................15 Product Data Sheet – PGD1032H ............................16 PGD1032 / PGD1032H Exploded View ...........................17 PGD1032 / PGD1032H Parts List .............................18 Your Notes ....................................19 V1.053... -
Page 3: Introduction
Introduction Thank you for choosing Titan Post Drivers. We want you to achieve the best possible performance from your new post driver. This manual will help you do that in a safe manner. If you have any technical questions related to your post driver or need replacement parts, please see the dealer from whom you purchased your driver or visit our web site –... -
Page 4: Getting To Know Your Driver

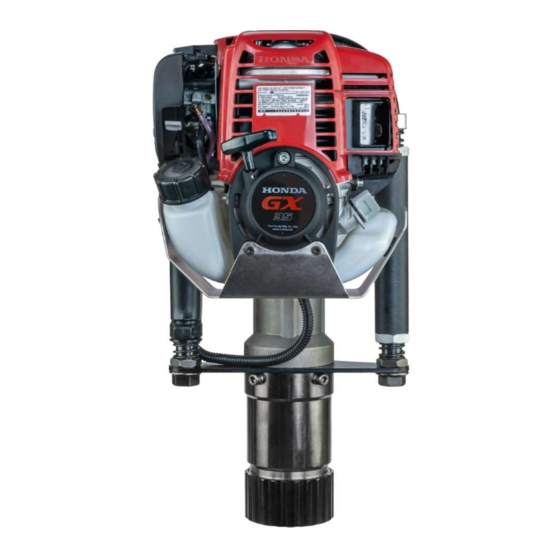

Getting to Know Your Driver Air Filter Pull Starter Top Handle Primer Bulb Cover Throttle Limiter Choke Grease Fill Port Dipstick Stop Switch Combination Side Fuel Tank Switch Handle Lower Body Fuel Tank Guard Vibration- Reducing Springs Barrel Shown with Barrel Cap Honda GX35 Engine (PGD1032H) -
Page 5: Safety Precautions
7. Vibration: Excessive vibration can cause circulatory and neural damage in the hands. Symptoms include pain, numbness, coldness, and paleness in the fingers. All Titan post drivers have springs installed to mitigate vibration at the hand. If you experience these symptoms, stop using the post driver and seek medical attention. -
Page 6: Preparation Before Use
PGD1032H - Honda suggests adding less than 3.4 US oz, then checking. PGD1032 (black engine) – For the FA-140 Engine, add 2.7 oz then check. BOTH Engines - Add oil if required to fill to the bottom edge of the oil fill hole. Do NOT overfill. - Page 7 Install Adapter Sleeve Choose an adapter sleeve that is compatible with the post, stake or rod being driven. It is recommended to use the smallest compatible adapter sleeve. This will help ensure efficient energy transfer and keep the driven material in the center of the barrel.
-
Page 8: Starting Your Machine
Starting your Machine o Ensure you are in a well-ventilated area to start and operate machine 1. Ensure on/off switch is in the down (ON) position. Note: The small knob on the trigger side of the throttle can be set to limit engine RPM. -
Page 9: Operation
Operation 1. Verify you are clear of underground obstacles. - Ensure you are clear of utilities by calling 811 and reporting your planned activities. 2. Be sure to use all personal protective equipment as outlined in the Safety Precautions section. 3. -
Page 10: Maintenance
Maintenance Before Each Use 1. Check the engine oil level with the driver in an upright position. Lying the driver down to check the oil will give you a false reading. Add SAE 10W-30 oil if necessary. 2. Check the engine air filter. If it is excessively dirty, clean it as described in the included Honda owner’s manual. If it is damaged, replace it. -
Page 11: First 10 Hours Of Use
If you are experiencing an issue with the Honda engine, please contact your local Honda dealer for parts and service. Titan Post Drivers does not carry the engine parts for Honda, nor does Titan Post Drivers determine the warranty, which is honored by Honda. - Page 12 Spark Plug To ensure normal operation of the engine, proper spark plug gap must be maintained. Remove carbon buildup with a wire brush. Proper gap of Spark Plug is 0.5-0.7 mm. See Figure 14 Figure 14 Muffler After the muffler has cooled, remove dirt on or around muffler. ...
-
Page 13: Post Driver Maintenance
Proper care and maintenance will help ensure your driver is safe and ready to work when you need it! Crankcase Grease Only TITAN Approved grease can be used – using incorrect grease will void warranty. Because the usage of this lubricant is a function of how much work is being done by the machine and the interval that it runs, you should CHECK GREASE REGULARLY. - Page 14 If gritty, a complete flush and O-ring replacement may be necessary. This is often the result of improper grease levels, running too hot and O-ring degradation. Possible internal damage has been done. Replacement gearboxes are available through dealers. Figure 2 - Checking Grease Other Inspections Visually inspect the inside of the drive barrel.
-
Page 15: Warranty
Honda engine. This warranty is provided directly by Honda for a period of one (1) year commercial use or two (2) years normal use and will be honored at any local Honda dealer. Both the Titan Post Drivers warranty and the Honda warranty are non-transferrable beyond the original purchaser. -
Page 16: Registration
Titan Post Drivers products, howsoever caused. For warranty terms on your Honda GX35 engine, please refer to the separate warranty in the Honda manual provided with your post driver. -
Page 17: Product Data Sheet - Pgd1032
Product Data Sheet – PGD1032 Driver Model PGD1032 Engine Model HUASHENG 140FA Overall Driver Dimensions 520 mm × 255mm × 330mm (20-1/2” x 10” x 13”) Overall Driver Weight 14.8 kg (32.6 lb) Max Drive Diameter 80mm (3.2 in) Fuel Type... -
Page 18: Product Data Sheet - Pgd1032H
Product Data Sheet – PGD1032H Driver Model PGD1032H Engine Model Honda GX35 Overall Driver Dimensions 520 mm × 255mm × 330mm (20-1/2” x 10” x 13”) Overall Driver Weight 15.1 kg (33.4 lb) Max Drive Diameter 80mm (3.2 in) Fuel Type Unleaded Gasoline, up to 93 Octane Engine Oil Type SAE 10W-30... -
Page 19: Pgd1032 / Pgd1032H Exploded View
PGD1032 / PGD1032H Exploded View V1.053 www.ChainLinkFittings.com | (800) 878-7829 | Sales@ChainLinkFittings.com... -
Page 20: Pgd1032 / Pgd1032H Parts List
PGD1032 / PGD1032H Parts List V1.053 www.ChainLinkFittings.com | (800) 878-7829 | Sales@ChainLinkFittings.com...
