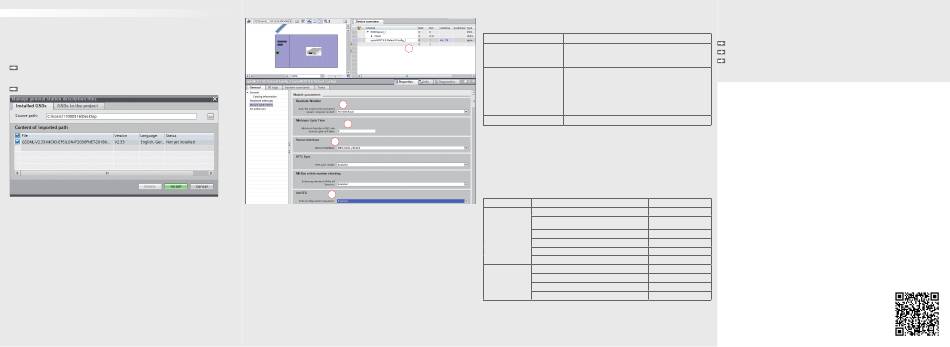

MICRO-EPSILON IF2035-PROFINET Assembly Instructions page 2

Quick Guide
GSDML File
The GSDML file contains information about a PROFINET device. This file is needed for the
PROFINET controller and must be integrated into the corresponding configuration software.
The current version is available at:
https://www.micro-epsilon.de/download/software/IF2035-GSDML-XML.zip
Import the GSDML file. To do so, in the Extras > Manage device description
files (DDF) menu, select the path for the file <GSDML-V2.43-MICRO-EPSILON-IF-
2035PNET-xxx.xml>.
Click the Install button.
IP Address, Network Name
The IF2035-PROFINET has no IP address and no network name by default. These settings must be
made in the PLC programming environment (e.g. TIA Portal or PRONETA).
In program examples the parameters baud rate, input width, sensor interface, minimum cycle time
are set appropriately. The current version is available at:
https://www.micro-epsilon.de/download/software/IF203x-PNET-standard-example-library.zip
Example: Configuring the Sensor Interface
1
2
3
4
5
Module integration with the TIA Portal software
Parameter Section/Description
1 Number of data bytes, see Data Format section
2 Baud rate
3 Minimum cycle time, see Data Format section
4 Sensor interface, see Configuring the Sensor Interface section
5 Init CFG, see IP Address section, network name
i
Please note the instructions for applying a project, see the Completion, Applying a Project sec-
tion.
Configuring the Sensor Interface
Only sensors (controllers) that support the ME sensor protocol can be connected via RS485/RS422,
see Connection Options section.
Protocol Sensor/controller
0: ME-Bus + RS485 DT6120
INC5701
MSC7401/MSC7x02/DTD
2: MEO-ASCII + RS422 C-Box analog
IFD242x/IFD246x
ILD1220/ILD1320/ILD1420/ ILD1750/ILD1900/ILD2300
IMS54xx/IMS56xx
MFA-7/14/21/28
ODC2250
3: MEO-ASCII + RS422 - 32 bit ILR2250, IMC5xx0
Baud Rate
The baud rate at the sensor/controller and in the hardware configuration of the IF2035-PROFINET
must match. There is no automatic baud rate matching between IF2035-EtherCAT and the connect-
ed sensor (controller). Details about the default baud rate can be found in the individual operating
instructions of the respective sensor/controller.
Data Format
All configuration parameters and data are transmitted from the IF2035 in Little Endian format. The
IF2035 converts a sensor-specific protocol into a uniform 4-byte data format.
No. of data bytes Sensor/controller Minimum Cycle Time
DT6120 0
16 byte
ILD1220/ILD1320/ILD1420/ ILD1750/ILD1900/
0
ILD2300
ILR2250 50 ms
IMC5xx0 0
MSC7401/DTD 2 ms
ODC2520 0
C-Box analog 0
32 byte
MSC7x02 2 ms
INC5701 0
IFC242x 0
Completion, Transferring a Project
After setting all parameters, the configuration must be transferred once to the module via the
Initial configuration sequence.
Proceed as follows:
Set the Init CFG (5) to Enabled.
Transfer the project to the controller and the IF2035/PROFINET
Set the Init CFG (5) to Disabled.
You can find more information about the sensor in the operating instruc-
tions. They are available online at:
www.micro-epsilon.de/download/manuals/man--IF2035-PROFINET--en.pdf
