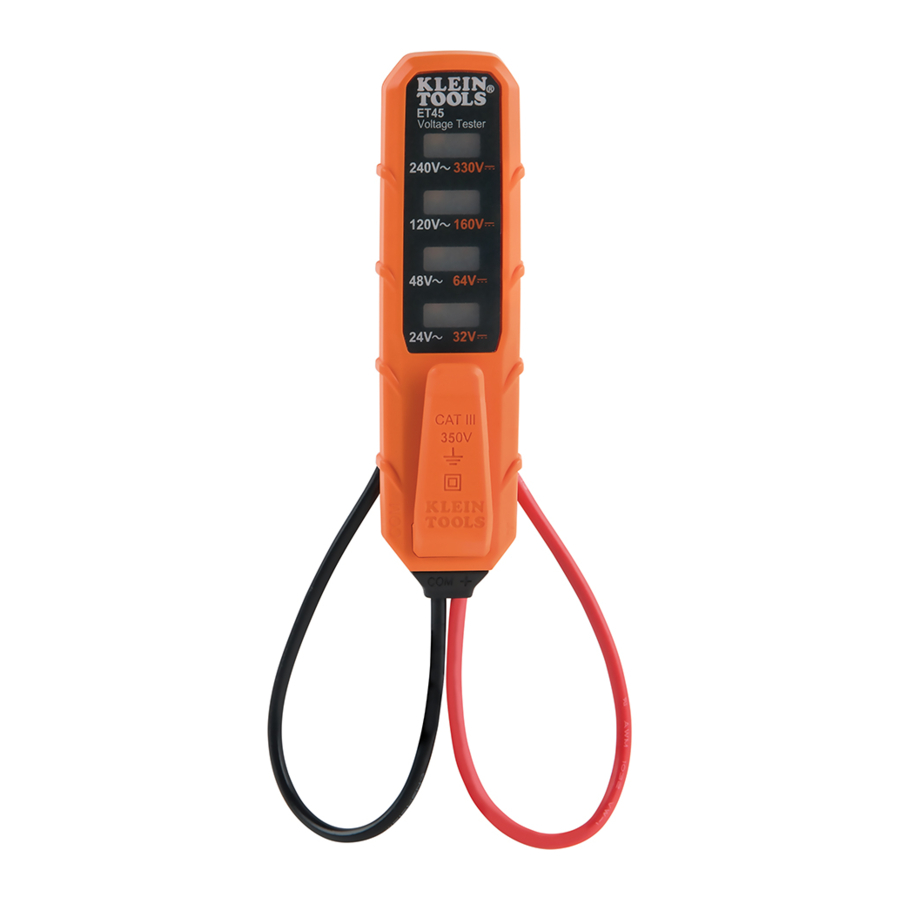

Klein Tools ET45 - AC/DC VOLTAGE TESTER Manual

OPERATING INSTRUCTIONS

TESTING IN CAT III / CAT IV MEASUREMENT LOCATIONS

Ensure the test lead shield is pressed firmly in place. Failure to use the CATIII / CATIV shield increases arc-flash risk.
TESTING IN CAT III / CAT IV MEASUREMENT LOCATIONS

TESTING IN CAT II MEASUREMENT LOCATIONS

CAT III / CAT IV shields may be removed for CAT II locations. This will allow testing on recessed conductors such as standard wall outlets. Take care not to lose the shields.
TESTING IN CAT II MEASUREMENT LOCATIONS

OPERATING INSTRUCTIONS

Apply test leads 1 to the system under test to measure AC or DC voltage; the voltage level indicators 3 will light up indicating the magnitude of the voltage present.

NOTE: Test-leads seated in the lead holders 2 on the back of the unit are spaced correctly to test tamper-resistant US-style outlets.

warning DO NOT attempt to measure voltages in excess of 240V AC or 330V DC. Voltages in excess of 240V AC or 330V DC will illuminate the 240V AC / 330V DC indicator. No other warnings will be delivered for voltages above 240V AC or 330V DC.

GENERAL SPECIFICATIONS

Operating Altitude: Up to 6562 ft. (2000 m)
Relative Humidity: <85% non-condensing
Operating Temperature: 5° to 113°F (-15° to 45°C)
Storage Temperature: -4° to 140°F (-20° to 60°C)
Dimensions: 4.45" × 1.19" × 1.05" (113 × 30 × 27 mm)
Weight: 1.8 oz. (52 g)
Calibration: Accurate for one year
Standards: EN61326-1:2013, EN61326-2:2013, EN61010-1:2010, EN61010-2-030:2010, EN61010-031:2015

Conforms to UL STD. 61010-1, 61010-2-030 and 61010-031.
Certified to CSA STD. C22.2 NO. 61010-1, 61010-2-030
5001748 and 61010-031.
Pollution degree: 2
Drop Protection: 9.8 ft. (3 m)
Ingress Protection: IP44
Safety Rating: CAT III 350V, Class 2, double insulation
CAT III: Measurement category III is applicable to test and measuring circuits connected to the distribution part of the building's low-voltage MAINS installation.
Electromagnetic Environment: This equipment meets requirements for use in basic and controlled electromagnetic environments like residential properties, business premises, and light-industrial locations.

Specifications subject to change.

ELECTRICAL SPECIFICATIONS

Voltage Level Indicators:
- AC: 24V, 48V, 120V, 240V
- DC: 32V, 64V, 160V, 330V
AC Frequency: 50Hz / 60Hz
Maximum Measurable Voltage: 240V AC / 330V DC(displayed by indicator lights)
Loop Current: <4.5mA at 240V AC / 330V DC
Accuracy: Voltage level indicators typically illuminate at >90% of the indicated range (except for 24V AC / 32V DC, >95% of range) Specifications subject to change.

To ensure safe operation and service of the tester, follow these instructions. Failure to observe these warnings can result in severe injury or death.

Before each use verify tester operation by measuring a known voltage.
Never use the tester on a circuit with voltages that exceed the category based rating of this tester.
Do not use the tester during electrical storms or in wet weather.
Do not use the tester or test leads if they appear to be damaged.
Keep fingers behind the finger guards and away from the metal probe contacts when making measurements.
Use caution when working with voltages above 25V AC RMS or 60V DC. Such voltages pose a shock hazard.
Always adhere to local and national safety codes. Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
Tester is IP44 dust & water resistant. Following any contact with water, thoroughly dry tester prior to subsequent use.

DO NOT attempt to repair this tester. It contains no serviceable parts.
DO NOT expose tester to extremes in temperature or high humidity.

CLEANING

Wipe with a clean, dry lint-free cloth. Do not use abrasive cleaners or solvents.

STORAGE

Do not expose to high temperatures or humidity. After a period of storage in extreme conditions exceeding the limits mentioned in the General Specifications section, allow the tester to return to normal operating conditions before using.
