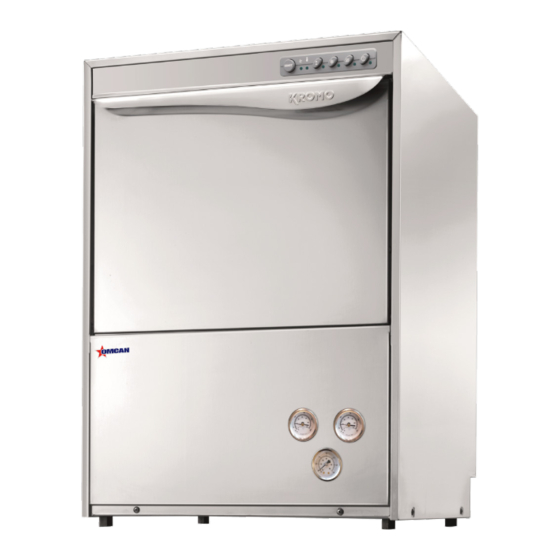

Dishwasher
Model CD-IT-50-2
Item 49126
Instruction Manual
Revised - 11/08/2023
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CD-IT-50-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Omcan CD-IT-50-2

Summary of Contents for Omcan CD-IT-50-2

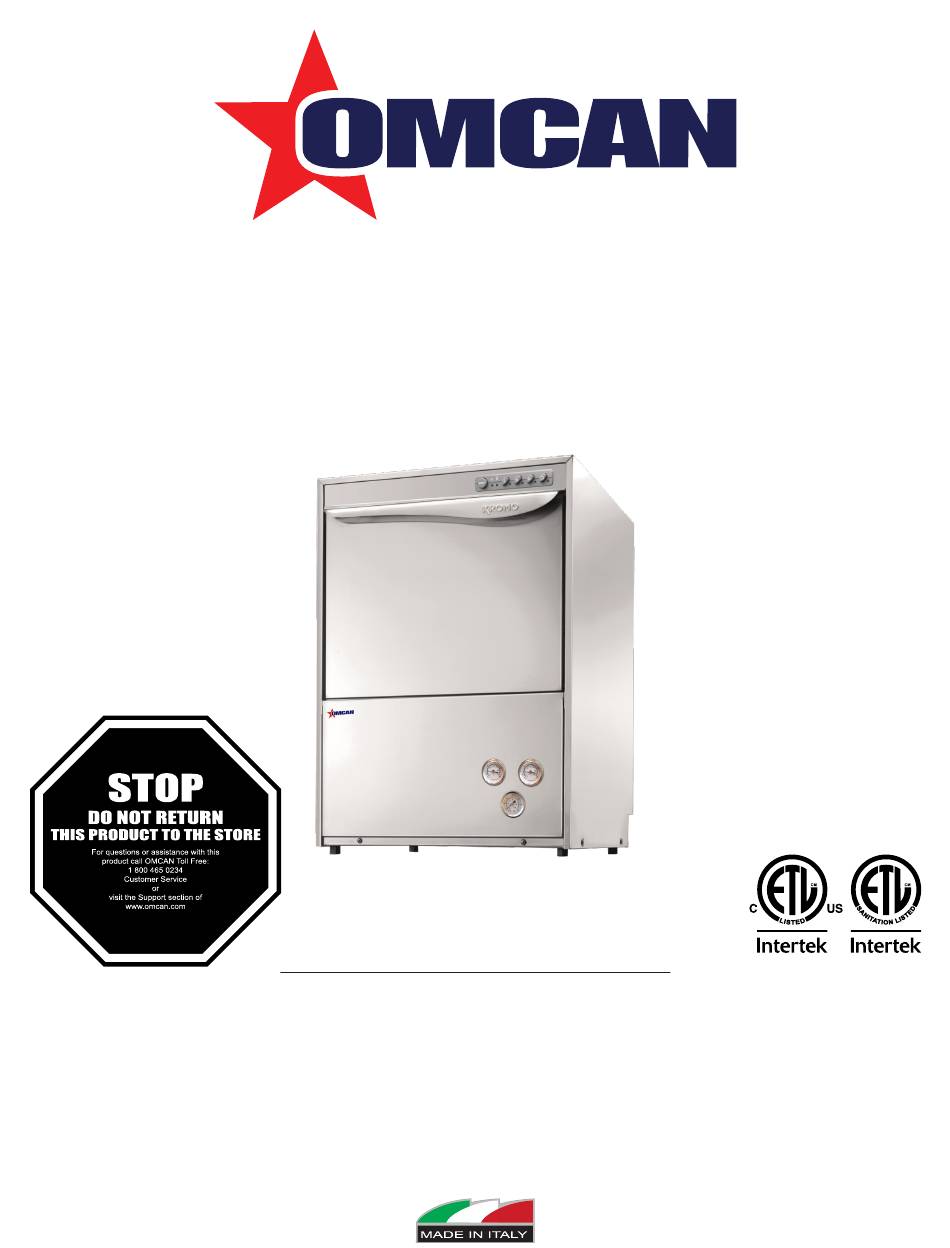

  • Page 1 Dishwasher Model CD-IT-50-2 Item 49126 Instruction Manual Revised - 11/08/2023 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...

  • Page 2: Table Of Contents

    Table of Contents Model CD-IT-50-2 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 6 Technical Specifications -------------------------------------------------------------------------- 7 Installation and Operation ------------------------------------------------------------------ 8 - 14 Maintenance --------------------------------------------------------------------------------- 14 - 16 Troubleshooting ----------------------------------------------------------------------------- 16 - 17...

  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 5 Safety and Warranty WARNINGS This instructions booklet must be kept with the machine for future consultations. If the machine is sold or transferred to other users, make sure the booklet always goes with the unit so that the new owner can have all the necessary information on operations and all relevant instructions.
  • Page 6 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures, not improper use.

  • Page 7: Technical Specifications

    Technical Specifications Model CD-IT-50-2 Crockery Dimensions Plates: 12.8” / 325mm dia. Dishes Max Height: 12.2” / 310mm Rack Dimensions 20” x 20” / 508 x 508mm 1 - Plastic Plates Basket Rack Equipment 1 - Large Mesh Glass Basket 1 - Cutlery Basket...

  • Page 8: Installation And Operation

    Installation and Operation RECEIVING THE MACHINE Pay special attention in choosing the lifting points and the machine bar and centre during the loading and unloading operations. Before accepting the machine, verify that all the data on the data-plate corresponds to the required ones and to the ones of the available electrical supply.
  • Page 9 Installation and Operation WATER SUPPLY CHARACTERISTICS The machine water supply must be potable. The inlet water must also meet the parameters given in the below table. Water parameters table Chlorine 2mg/l Water hardness 8°F Iron 0.2 mg/l Manganese 0.05 mg/l Out of range values might lead to corrosion and jeopardize the life of the machine.
  • Page 10 Installation and Operation This switch shall be installed in the immediate vicinity of the machine. Only this switch must be used, always and strictly, to de-energize the machine at the end of the work session. Make sure the appliance is linked to an efficient ground connection. WARNING: check very carefully if the “ground connection”...
  • Page 11 Installation and Operation ADJUSTMENT With each rinse cycle, the dispenser draws an amount of rinse aid, adjustable from 0 to 2 cubic inches (from 0 to 4 cc), equivalent to a length of 0 to 11” (from 0 to 30 cm) drawn into the suction tube. In order to regulate the dispenser to the minimum amount, turn the adjustment screw D (completely clockwise.
  • Page 12 Installation and Operation sufficient for daily use. • Turn on the water tap. • Turn switch 0-1 1 to position 1 (pressed). The operation is signalled by the switch indicator lighting up or by the indicator with the symbol A. The machine will automatically fill the tub with water; then the heating phase begins.
  • Page 13 Installation and Operation • Copper, brass, pewter or aluminum objects: they may become discolored or opaque. • The decorations on glass, after a certain number of washes, can lose gloss. • Fragile glasses or crystal items, if often washed, can become opaque. We recommend to buy exclusively crockery and cutlery suitable for dish washing.

  • Page 14: Maintenance

    Installation and Operation recommended amount is 7/8 - 1 15/16 inches (2-5 cm) of product measured on the suction tube. 3/8 inches (1 cm) of the product drawn into the tube is equal to about 1/16 Dramme (0,13g). A correct amount of rinse aid is very important for a quick and clean drying.
  • Page 15 Maintenance • Remove the rotors by loosening the fixing screws, and thoroughly clean the nozzles and cleaning and rinsing arms under running water. • Reassemble all parts and refit the rotors in their seats, fixing them with the relative screws. •...

  • Page 16: Troubleshooting

    The spray arm nozzles or the solenoid filter are clogged and/or caked with lime deposits. Clean the rinsing arm nozzles, the pipes and the filter. Check that the water hardness is <10°f. Equip the machine with an external water softener. Faulty pressure switch. Replace the pressure switch (call Omcan).
  • Page 17 The machine is connected to an overloaded circuit. Connect the during the cycle. machine separately (call Omcan service). A safety device has been activated. Check safety devices (call Omcan service). During wash cycle the machine Water from the previous day has not been replaced. Empty the tank and stops and draws water.
  • Page 18 Figure Drawings...

  • Page 19: Parts Breakdown

    Parts Breakdown Model CD-IT-50-2 General Body 49126...
  • Page 20 Parts Breakdown Model CD-IT-50-2 Door 49126...
  • Page 21 Parts Breakdown Model CD-IT-50-2 Control Panel and Switches 49126...
  • Page 22 Parts Breakdown Model CD-IT-50-2 Electric Control Components 49126...
  • Page 23 Parts Breakdown Model CD-IT-50-2 Solenoid Valve Group 49126...
  • Page 24 Parts Breakdown Model CD-IT-50-2 DVGW Valve 49126...
  • Page 25 Parts Breakdown Model CD-IT-50-2 Rinse Aid Dispenser Group 49126...
  • Page 26 Parts Breakdown Model CD-IT-50-2 Boiler Group 49126...
  • Page 27 Parts Breakdown Model CD-IT-50-2 3 Ways Connection 1 49126...
  • Page 28 Parts Breakdown Model CD-IT-50-2 3 Ways Connection 2 49126...
  • Page 29 Parts Breakdown Model CD-IT-50-2 Wash Pump Group 49126...
  • Page 30 Parts Breakdown Model CD-IT-50-2 Drain Pump Group 49126...
  • Page 31 Parts Breakdown Model CD-IT-50-2 Pressure Switch Group 49126...
  • Page 32 Parts Breakdown Model CD-IT-50-2 Wash Arm Group 49126...
  • Page 33 Parts Breakdown Model CD-IT-50-2 Baskets 49126...
  • Page 34 Parts Breakdown Model CD-IT-50-2 General Body 49126 Item No. Description Position Item No. Description Position Item No. Description Position AO604 Back Panel 501/03 for 49126 AO486 Overflow Pipe H187 for 49126 AO609 Profile for Rubber Seal 501/03 for 49126 AO605...
  • Page 35 Parts Breakdown Model CD-IT-50-2 Electric Control Components 49126 Item No. Description Position Item No. Description Position Item No. Description Position Electric Components Panel 501/03 for Thermostat 0-90 TR2 C1500+PVC Terminal Board 6 Poles FV122 Red AO619 AM506 AO530 49126 Post.N/ALB for 49126...
  • Page 36 Parts Breakdown Model CD-IT-50-2 Boiler Group 49126 Item No. Description Position Item No. Description Position Item No. Description Position Heating Element Mounting Bracket D.6,3 AO551 O-Ring 151 NBR for 49126 AO555 Insulating Disk D.138 for 49126 AO557 for 49126 AO552...
  • Page 37 Parts Breakdown Model CD-IT-50-2 Pressure Switch Group 49126 Item No. Description Position Item No. Description Position Item No. Description Position AO575 Pressure Switch 47-28 UL for 49126 AO578 Stainless Steel Nut M8 DIN934 for 49126 AO581 Pressure Switch Support for 49126 EPDM Hose 4.5x9 for Pressure Switch...

  • Page 38: Electrical Schematics

    Electrical Schematics Model CD-IT-50-2 49126...

  • Page 39: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 40 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
