Summary of Contents for Omcan CD-GR-0500

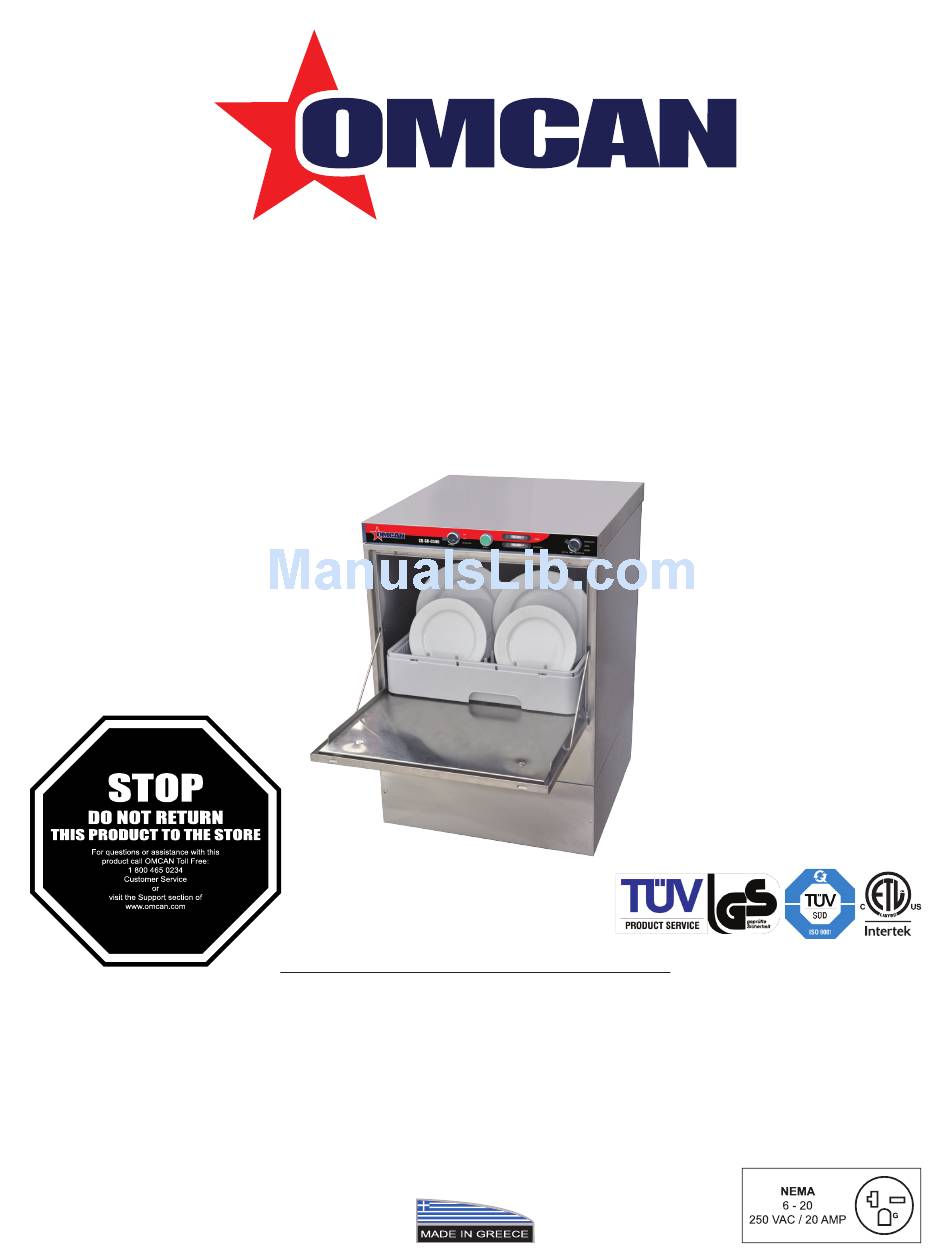

- Page 1 High Temp Dishwasher Model CD-GR-0500 Item 39716 Instruction Manual Revised - 11/4/2015 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model CD-GR-0500 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 5 Installation --------------------------------------------------------------------------------------- 5 - 7 Operation ----------------------------------------------------------------------------------------- 7 - 9 Maintenance --------------------------------------------------------------------------------- 10 - 11 Troubleshooting... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. -
Page 5: Technical Specifications
Safety and Warranty waste) according to the current norms. DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT! Technical Specifications Model CD-GR-0500 Basket Size 20” x 20” / 508 x 508mm Wash Pump 0.75 HP Booster Tank: 6 L / 6.3 QT... -
Page 6: Installation
Installation INSTALLATION SUGGESTIONS • Place the dishwasher at the desired location. • The appliance should tilted very slightly to the left and to the rear for best drainage results. Adjustable feet are provided for this adjustment. WATER SUPPLY CONNECTION ATTENTION: Connection with the water supply should be made according to all applicable codes. This dishwasher intended for use with a hot water supply but will also operate (at reduced hourly capacity) with a cold water supply. -
Page 7: Operation
Installation scratches. Insert the exposed wire in the appropriate ½” hole in the back panel, place the connector mounting nut over the wire, and feed the wire through the grey plastic conduit leading to the inside of the control box. Mount the connector fitting properly. - Page 8 Operation Place tableware in the supplied plastic basket, with handles downwards or placed freely in a level plastic basket. In every case, avoid overloading the basket. AUTOMATIC FILLING OF DETERGENT This model has an automatic detergent pump for use with a container of non foaming liquid detergent. The detergent pump is a peristaltic regulated (looks exactly like the rinse-aid pump) and can be regulated by a screw above and on the right of the glass cover.
- Page 9 Operation full revolutions. Empty wash tank and refill with fresh water. Operate for two or three cycles and verify concentration level. Adjust dozer again if required to achieve final desired results. OPERATION • Check that the pump inlet filter has been placed in the correct position if it was removed for cleaning. •...
-
Page 10: Maintenance
Maintenance DAILY MAINTENANCE OPERATION. • Turn the power switch off. • Empty the wash tank by removing the overflow standpipe. • Rinse the washing compartment to remove any dirt residues. • Remove and clean the large pump filter. • Reassemble the parts in reverse order. Never operate the dishwasher without the wash pump filter properly in place. -
Page 11: Troubleshooting
Spare parts and components are usually available at the authorized local service agency, or directly from Omcan, In case of warranty claims or complaints, you must supply the model and serial number of the appliance found on the specification label of the appliance. - Page 12 Reconnect power lead. Wash tank heating does not The wash tank thermostat is faulty. Refer to the authorized service operate. agency, local dealer, or Omcan. The 90°C thermal fuse is burned or Refer to the authorized service defective. agency, local dealer, or Omcan.
-
Page 13: Parts Breakdown
Parts Breakdown Model CD-GR-0500 Body 39716... - Page 14 Parts Breakdown Model CD-GR-0500 Door 39716...
- Page 15 Parts Breakdown Model CD-GR-0500 Washing Chamber 39716...
- Page 16 Parts Breakdown Model CD-GR-0500 Under Compartment 39716...
- Page 17 Parts Breakdown Model CD-GR-0500 Control Panel 39716...
- Page 18 Parts Breakdown Model CD-GR-0500 Rinsing Compartment 39716...
- Page 19 Parts Breakdown Model CD-GR-0500 Washing Arm 39716...
- Page 20 Parts Breakdown Model CD-GR-0500 Washing Arm Sprayer 39716...
- Page 21 Parts Breakdown Model CD-GR-0500 Washing Base 39716...
- Page 22 Parts Breakdown Model CD-GR-0500 Sprayer 39716...
- Page 23 Parts Breakdown Model CD-GR-0500 Washing Bar 39716...
- Page 24 Parts Breakdown Model CD-GR-0500 Pumps 39716...
- Page 25 Parts Breakdown Model CD-GR-0500 Heating Element 39716...
- Page 26 Parts Breakdown Model CD-GR-0500 Electrical Components 39716...
-
Page 27: Control Panel
Parts Breakdown Model CD-GR-0500 Body 39716 Item No. Description Position Item No. Description Position Item No. Description Position Electrical Display Panel Complete for 73800 Front Cover Inox for V500 73792 73943 Upper Cover Inox for V500 V500 73789 Electrical Box Complete for V500... - Page 28 Parts Breakdown Model CD-GR-0500 Rinsing Compartment 39716 Item No. Description Position Item No. Description Position Item No. Description Position Pump 0.75HP, 208-240V, 60Hz, 2P, UL Connector Washing System Plastic for 73902 73771 73749 Axle Inox for Base Down for V500...
- Page 29 Parts Breakdown Model CD-GR-0500 Washing Bar 39716 Item No. Description Position Item No. Description Position Item No. Description Position 73894 Plastic Base for Rinsing Arms for V500 73912 Rinsing Arm - A for V500 41085 Sprayer for Rinsing Arm for V500...
-
Page 30: Electrical Schematics
Electrical Schematics Model CD-GR-0500 39716... -
Page 31: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 32 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
