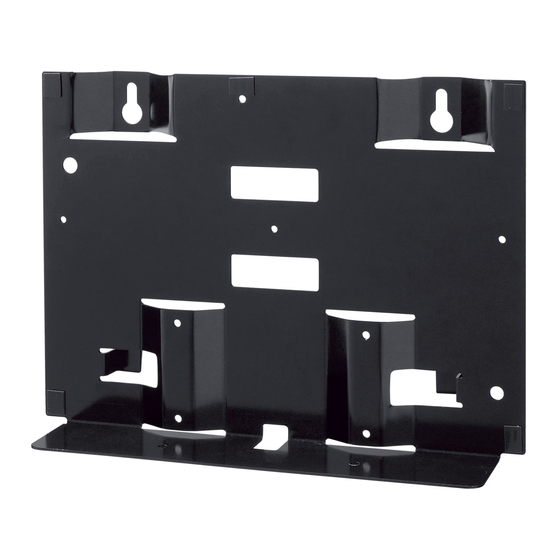

- Page 1 ATTACHMENT ATTACHE アタッチメント AT-800 Owner’s Manual Mode d’emploi Bedienungsanleitung Bruksanvisning Manuale di istruzioni Manual de instrucciones Gebruiksaanwijzing Инструкция по эксплуатации 使用说明书 사용 설명서 取扱説明書...
- Page 2 DIMENSIONS AFMETINGEN ГАБАРИТЫ DIMENSIONS ABMESSUNGEN 各个部分的尺寸 MATTSKISSER 크기 DIMENSIONI 各部の寸法 DIMENSIONES (ISX-800) 200 mm (7-7/8") 61.5 mm 22 mm 51 mm 308 mm (12-1/8") 51 mm (2-3/8") (7/8") (2") (2") 90 mm 410 mm (16-1/8") (3-1/2")
- Page 3 Yamaha is not responsible for any accident or personal injury caused by a falling audio unit, nor for damage to a wall caused by inappropriate wall conditions or inadequate installation.
- Page 4 PACKAGE CONTENTS Make sure the package contains the following items. Attachment (AT-800) Safety wire (x2) Have the following items ready in addition: • Commercially available tapping screws (x4) ø 6 mm (1/4") , 31 mm (1-1/4") or more in length, 7 mm (1/4") or more in screw head...
- Page 5 Installing the Attachment on the audio unit Remove the rear cover and terminal cover from the audio unit. If the audio unit has been mounted on a dedicated stand, remove the stand. Also, remove the power Terminal cover cable, antenna and/or external devices. Four M4 screws that you remove from the stand will be used in Step Rear cover...
- Page 6 Notes • After installation is complete, make sure that the audio unit is securely affixed. Yamaha is not responsible for any accident caused by inappropriate wall conditions or inadequate installation. • Be sure to secure the cables so that they will not be caught by feet or hands, possibly causing the audio unit to fall.
- Page 7 Printed in China WZ39290 © 2011 Yamaha Corporation...
