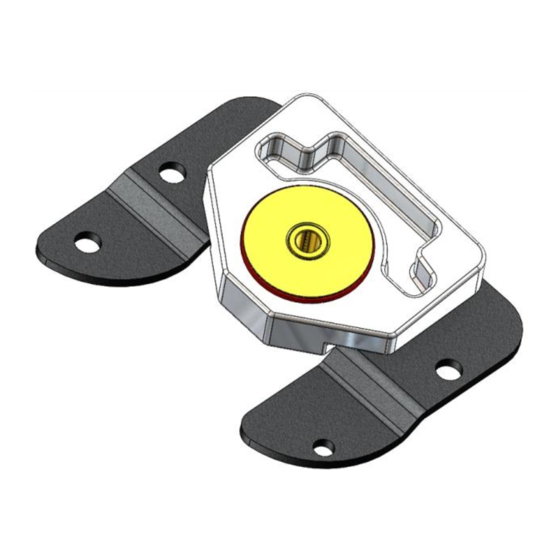

Steeda 555-4032 Quick Start Manual

2013+ Ford Focus ST and RS
Driver Side Engine/Transmission Mount
Instructions for parts #555-4032 and 555-4033
•A qualified technician should be used if you are not confident with replacing the factory driver side engine mount.
•A Ford service manual should be used in tandem with these instructions for further assistance and torque specifications.

Removal of Factory Engine Mount:

1. The engine and transmission will need to be supported on the
transmission side before removing this mount. A jack should be
placed underneath the transmission, and raised just high enough to
keep the transmission and engine from moving very much when
the mount is removed.
2. Remove the engine cover by gently pulling up on the cover around
the corners.

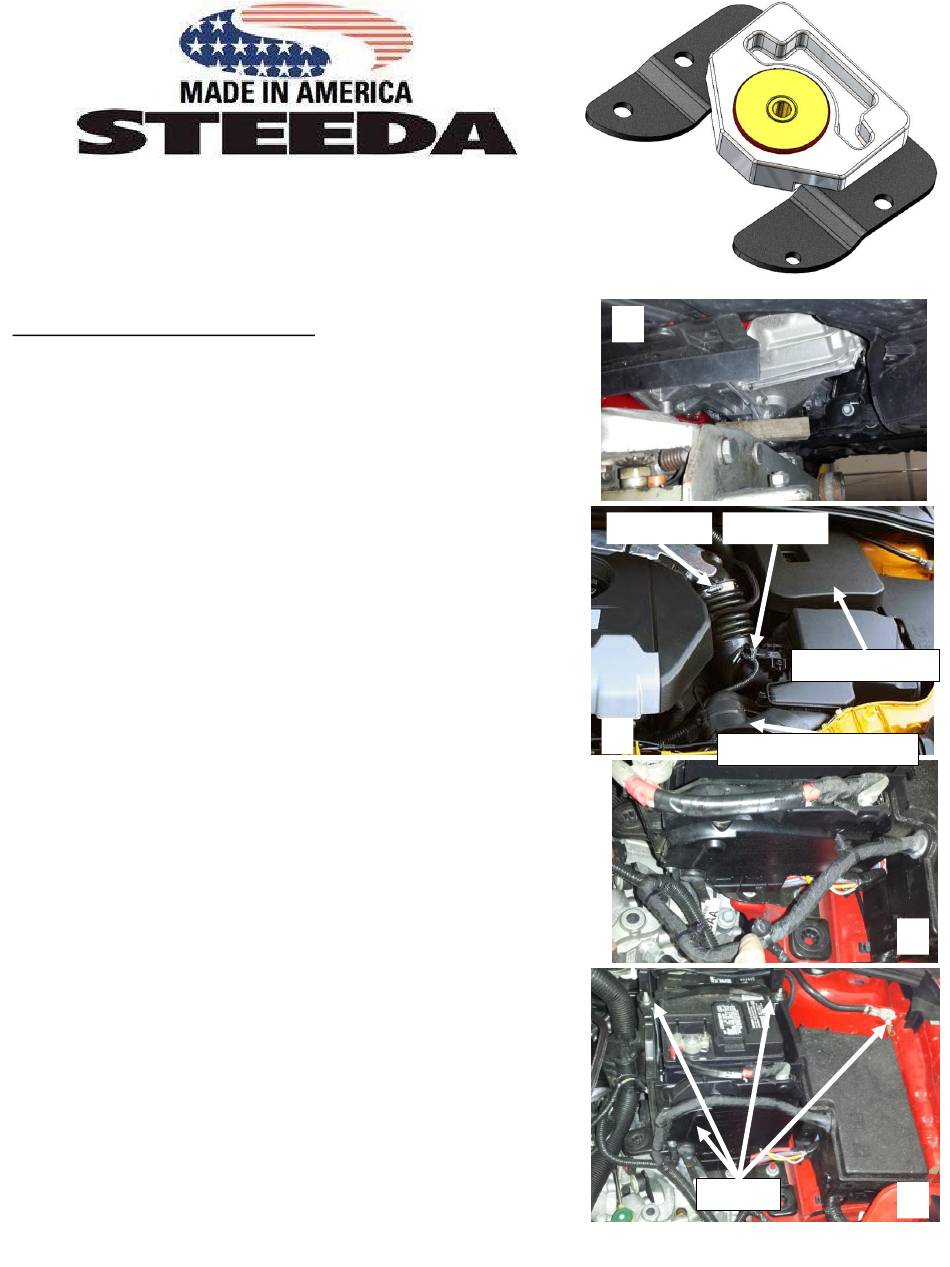

3. Loosen the hose clamp securing the rubber intake tube to the hard
plastic intake tube. See figure 1.
4. Unplug the electrical connector for the MAP sensor. See figure 1.
5. Unclip the rubber strap securing the cold air feed tubes from their
mount at the cold air feed coming from the core support. See
figure 1.
6. Gently pull up on the air box and dislodge the rubber grommets
(beneath the air box) from their locating holes in the inner fender.
Gently pull the intake tube off of the plastic tube. Lift out the entire
assembly, with intake tube, and cold air feed tubes attached, in one
piece.
7. Remove the two rubber grommets from their respective studs on
the bottom of the air box. Insert the grommets back into their
respective holes where they were originally located.
8. Remove the top cover off of the battery tray, by pulling out and up
gently, on each side.
9. Unclip the wiring harness from the front of the battery tray, using a
flat head screwdriver, or by pulling out at each necessary location.
10. Disconnect the ground cable from the body, and then the positive
cable from the battery. Be sure to keep the terminals from
touching any metal surfaces.
11. Remove the battery hold down bracket.
12. Unplug the connector from the negative battery terminal.
