Removal of the factory belly pan:
1. Raise and support the vehicle.
2. Remove all 7mm bolts and push pins that are securing the belly pan to the chassis.
(Refer to Figure 1)
3. Keep these extra bolts and push pins from the belly pan so that they can be used to
install the front splitter. (Figure 4)
Figure 1
© 2015 Steeda Autosports, All Rights Reserved.
Figure 2
!
3/18/2015

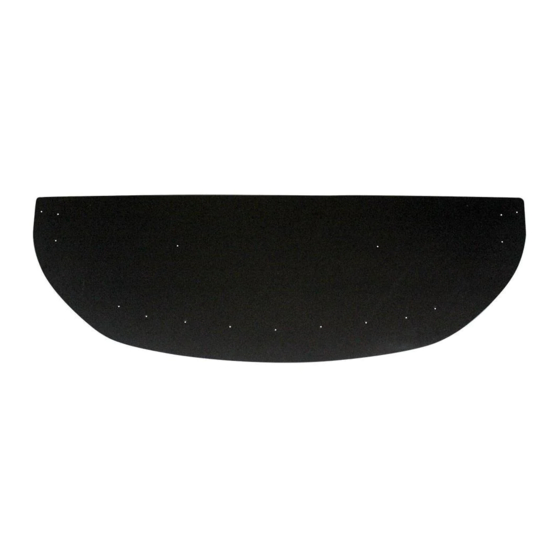

2015 S550 Front Splitter (283-S550-GT-PP)
Advertisement
Table of Contents
Related Manuals for Steeda S550
Summary of Contents for Steeda S550
- Page 1 3. Keep these extra bolts and push pins from the belly pan so that they can be used to install the front splitter. (Figure 4) Figure 1 Figure 2 © 2015 Steeda Autosports, All Rights Reserved. 3/18/2015 2015 S550 Front Splitter (283-S550-GT-PP)
- Page 2 1. Grab a bracket, bolt, and nut that was previously used to secure the belly pan to now fasten the splitter to the valance through the hole you’ve just drilled. (Figure 4) © 2015 Steeda Autosports, All Rights Reserved. 3/18/2015...
- Page 3 3. Fasten the splitter to the factory valance with the nut and bolt and then secure everything into place with a push pin. Figure 7 Figure 8 4. Lastly, check to ensure that all of the bolts and push pins are tight. © 2015 Steeda Autosports, All Rights Reserved. 3/18/2015 2015 S550 Front Splitter (283-S550-GT-PP)
