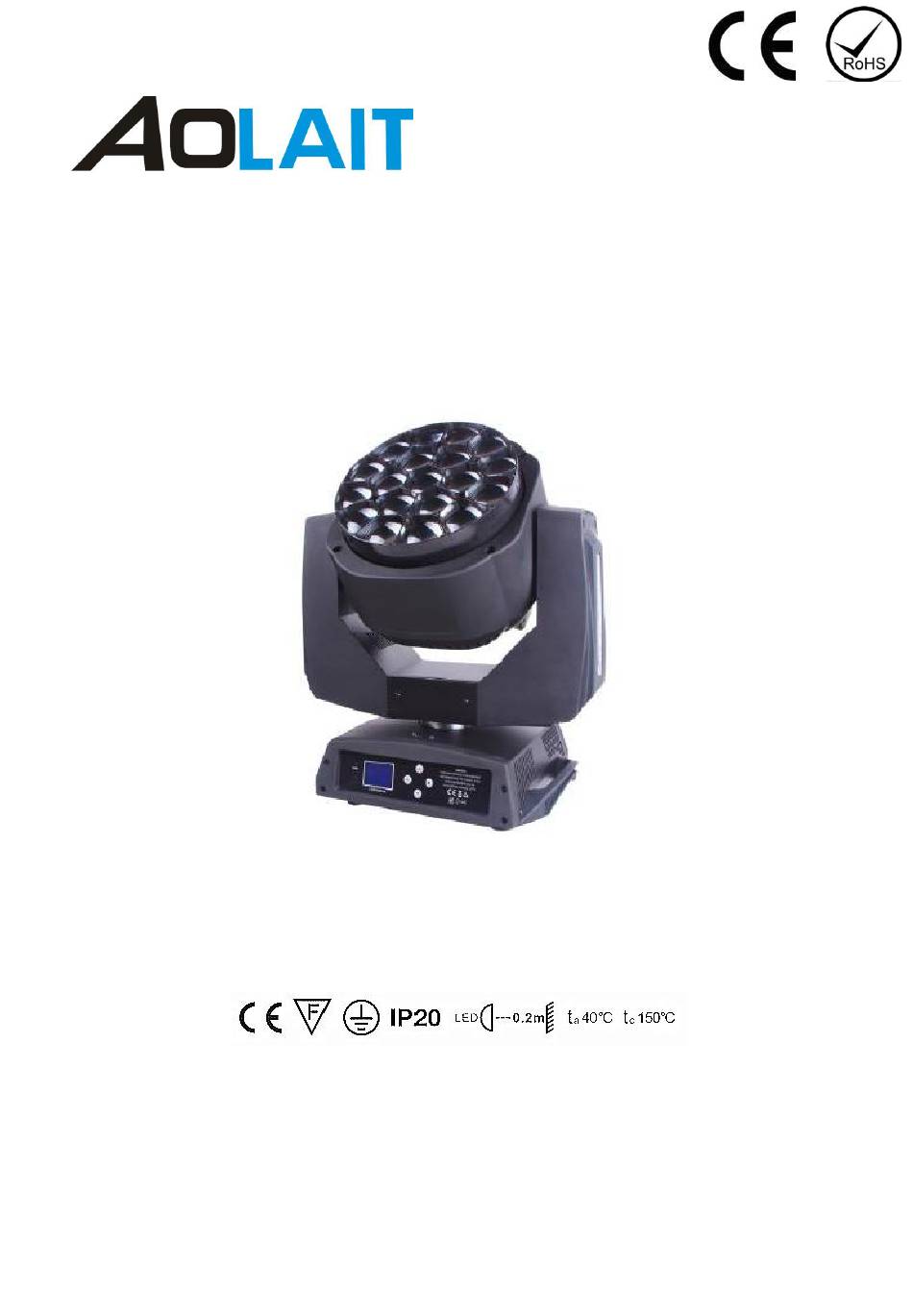

- Page 1 LED BEAM WASH ZOOM and Rotation 19*15W Bee-Eye AL1019WR User Manual KEEP THIS MANUAL FO FUTURE NEEDS 1 / 20...
- Page 2 1. Unpacking Thank you for choosing our lighting. For your own safety, please read this manual before installing the device. This manual covers the important information on installation and applications. Please install and operate the fixture with following instructions. Meanwhile, please keep this manual well for future needs. This fixture is made of a new type of high temperature strength of engineering plastics and cast aluminum casing with nice outlook.
-
Page 3: Product Introduction
2. Product Introduction 3 / 20... -
Page 4: Safety Instructions
3. Safety Instructions This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. If the device has been exposed to temperature changes due to environmental changes, do not switch it on immediately. -
Page 5: Mounting And Installation
4. Operation Instructions -The moving head is for wash effect for on-site decoration purpose. -Don’t turn on the fixture if it’s been through severe temperature difference like after transportation because it might damage the light due to the environment changes. So make sure to operate the fixture until it is in normal temperature. - Page 6 Never stand directly below the device when mounting, removing, or servicing the fixture from a periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury.
-
Page 7: Dmx-512 Control Connections
6. DMX-512 control connections Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving heads be connected together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors. -
Page 8: Dmx Channels
7. DMX Channels 21 CH Function DMX Value Details 0-255 Red dimmer Red Fine 0-255 Red fine control Green 0-255 Green dimmer Green Fine 0-255 Green fine control Blue 0-255 Blue dimmer Blue Fine 0-255 Blue fine control White 0-255 White dimmer White Fine 0-255... - Page 9 23 channels mode Function Details Value 0-255 Pan movement control Pan fine 0-255 Pan fine control Tilt 0-255 Tilt movement control Tilt fine 0-255 Pan fine control Pan/Tilt speed 0-255 Speed from fast to slow ZOOM 0-255 Zoom 0-127 0 to 60 degree LENS rotation 128-191 Unlimited clockwise rotation from fast to slow...
- Page 10 35 channels mode Function Details Value 0-255 Red dimmer Red Fine 0-255 Red fine control Green 0-255 Green dimmer Green Fine 0-255 Green fine control Blue 0-255 Blue dimmer Blue Fine 0-255 Blue fine control White 0-255 White dimmer White Fine 0-255 White fine control 0-255...
- Page 11 78 channels mode Function Details Value 0-255 Red dimmer Red Fine 0-255 Red fine control Green 0-255 Green dimmer Green Fine 0-255 Green fine control Blue 0-255 Blue dimmer Blue Fine 0-255 Blue fine control White 0-255 White dimmer White Fine 0-255 White fine control 0-255...
- Page 12 92 Channels mode Function Details Value 0-255 Red dimmer Red Fine 0-255 Red fine control Green 0-255 Green dimmer Green Fine 0-255 Green fine control Blue 0-255 Blue dimmer Blue Fine 0-255 Blue fine control White 0-255 White dimmer White Fine 0-255 White fine control 0-255...
- Page 13 97 CH Channel Function DMX Value Details 0-255 Red dimmer Red Fine 0-255 Red fine control Green 0-255 Green dimmer Green Fine 0-255 Green fine control Blue 0-255 Blue dimmer Blue Fine 0-255 Blue fine control White 0-255 White dimmer White Fine 0-255 White fine control...
- Page 14 99 CH Function DMX Value Details 0-255 Pan movement control Pan fine 0-255 Pan fine control Tilt 0-255 Tilt movement control Tilt fine 0-255 Pan fine control Pan/Tilt speed 0-255 Speed from fast to slow ZOOM 0-255 Zoom 0-127 0 to 60 degree LENS rotation 128-191 Unlimited clockwise rotation from fast to slow...
-
Page 15: Display Instruction
8. Display instruction Sound Auto 1 System Run Mode Setup Auto 2 Auto 3 001-512 DMX Address 21CH 23CH 35CH Channel mode 78CH 92CH 97CH 99CH Invert Pan Invert Tilt MENU Pan-Tilt Swap Encoder Keep No Singal Clean Screen Saver Language 中文... - Page 16 9.Board connection: LED driver board 16 / 20...
- Page 17 Main board: Screen board: 17 / 20...
- Page 18 10. Key Features Voltage: AC100V～240V 50-60HZ Power: 450W LED Source: 19x15W high power RGBW 4 in 1 LEDs Zoom: 4-60° Strobe: 0-20Hz Control Mode: DMX512,Sound-actived,Master/slave DMX Channels: 21 CH/23 CH/35 CH/78 CH/92 CH/97 CH/99 CH Dimmer: 0-100% linear dimmer Pan: 540°+16 bit fine Tilt: 270°+16 bit fine Display: LCD colorful display IP: IP20...
-
Page 19: Photometric Data
9. Photometric Data: LUX Data of 4 degree beam angle: 83700LUX@2.5m 2550LUX@5m 1150LUX@7.5m 13800LUX@2.5m 3800LUX@5m 1780LUX@7.5m 15300LUX@2.5m 4460LUX@5m 1970LUX@7.5m 18000LUX@2.5m 5300LUX@5m 2320LUX@7.5m RGBW 50400LUX@2.5m 15500LUX@5m 6680LUX@7.5m 19 / 20... -
Page 20: Maintenance And Cleaning
10. Maintenance and Cleaning The following points have to be considered during the inspection: 1. All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded. 2. There must not be any deformations on the housing, color lenses, fixations and installation spots (ceiling, suspension, trussing).
