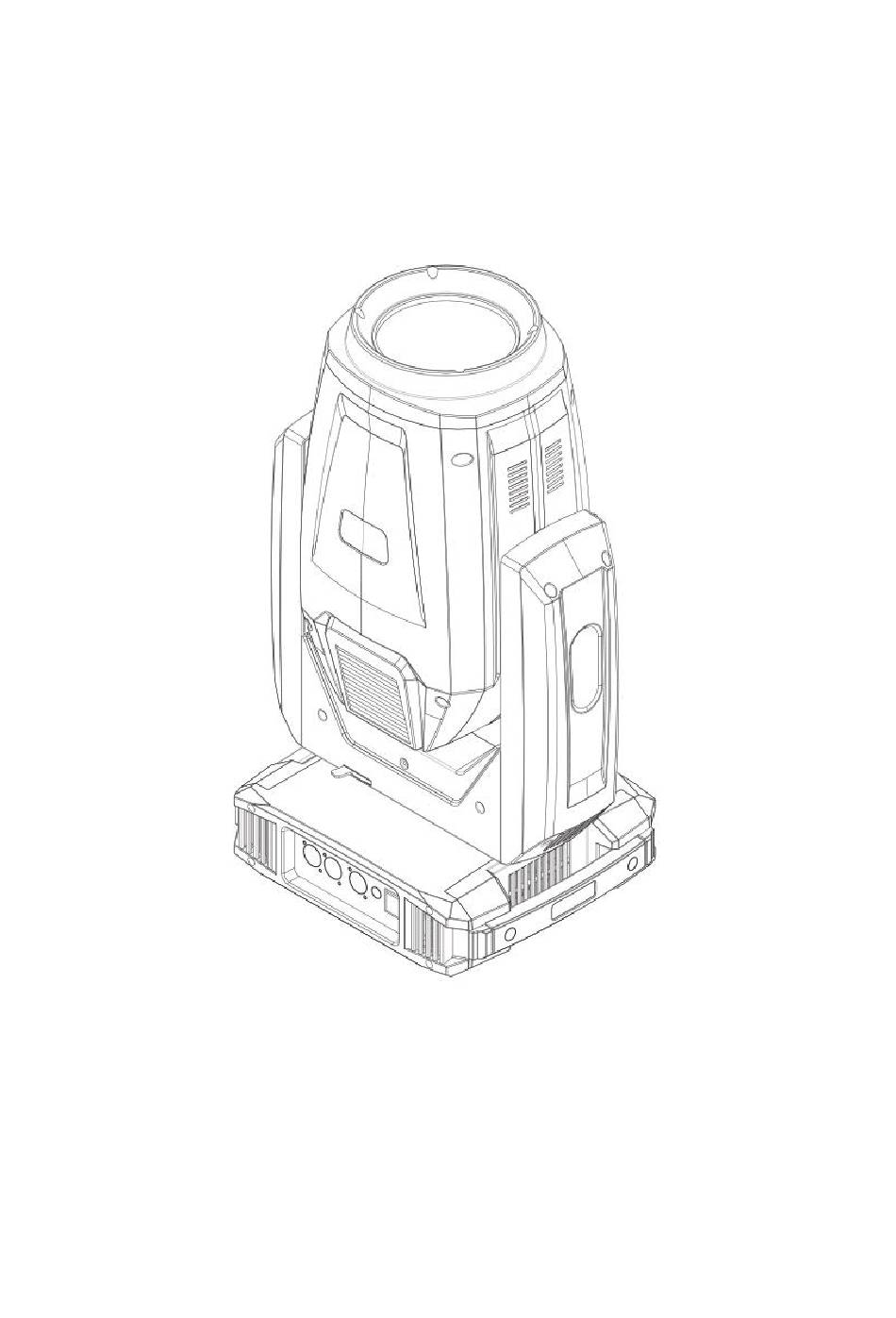

- Page 1 380W 3IN1 Moving Head User Manual Please read the instruction carefully before use...
-
Page 2: Table Of Contents
CONTENTS 1. Safety Instructions ..................2. Technical Specifications .................. 3. Description ..................... 3.1 Control Panel ..................4.2 Light Source .................... 5. How To Set The Unit ..................5.1 Main Function ..................5.2 Home Position Adjustment ..............5.3 Error Information .................. 6. -
Page 3: Safety Instructions
1. Safety Instructions WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction manual. Important: Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems. -
Page 4: Technical Specifications
DO NOT operate in dirty or dusty environment, do clean fixtures regularly. DO NOT touch any wire during operation as there might be a hazard of electric shock. Avoid power wires together twist other cables. The minimum distance between light output and the illuminated surface must be more than 18 meters. -
Page 5: Description
CMY infinite color mixing Color wheel: 12 color +open, rainbow effect Rotating gobo: 7 interchangeable gobos +open Fixed gobo: 14 gobo + open Dynamic effect wheel: water ripple, flame, and starry sky effects. 6 color plate: rainbow effect Dimming: 0-100﹪ linear dimming Strobe: synchronous pulse stroboscopic, random pulse stroboscopic Prism 1: 8-facet prism, Prism plate 2: 16 facet prisms optional 6-liniear prism Display: 2.8 inch touch color LCD display, Chinese and English display, can be reversed display... - Page 6 Operation Operate light with touch or encoder button ⚫ The left area is TFT Displayer and touch, chick item or value with finger will to complete 4/12 operation of set light setting(parameters) or view light state. ⚫ The area on the right hand side is rotary encoder with button, As auxiliary input interface, if disable touch function,, the encoder can been choose to set or view the item, and then press the encoder button to confirm the selection, rotary encoder again set the parameter value, finally, Press encoder button one again to save value or setting.
- Page 7 ⚫ When the parameter is a key item, chick corresponding item, a dialog shown in will been popup ask for the confirm. Chick ‘sure’ to confirm. Sub Menu（Parameter） Chick item of main menu, enter corresponding sub menu, total 6 sub menu, includes class of 5/12 parameter and status: ⚫...
-
Page 8: Address Setting
Set DMX Address Click and select the "ADDR", can enter the page of DMX address setting, range from 1 to 512, the address code shouldn’t is not greater than (512- channels quantity), otherwise the light will not been controlled. Following is the operation: Enter the page of DMX address, click the blank area in right side of display will pop-up diglog as in Fig. - Page 9 TILT 0-255 Tilt 0° – 244° Tilt Fine ： TILT FINE 0-255 Fine Tilt positioning PAN/TILT STEED 0-255 Pan/Tilt Speed shaking fast to slow FUNCTION 100-105 Lamp OFF 200-205 Lamp ON 210-215 Reset XY 220-235 Reset Effect 240-255 Reset All Cyan 000-255 Linear adjustment from light to...
- Page 10 46-51 Gobo8 52-57 Gobo9 58-63 Gobo10 64-69 Gobo11 70-75 Gobo12 76-81 Gobo13 82-87 Gobo14 88-95 Gobo1 shaking slowto fast 96-103 Gobo2 shaking slowto fast 104-111 Gobo3 shaking slowto fast 112-119 Gobo4 shaking slowto fast 120-127 Gobo5 shaking slowto fast 128-135 Gobo6 shaking slowto fast 136-143 Gobo7 shaking slowto fast...
- Page 11 71-80 Gobo7 81-90 Gobo1 shaking slowto fast 91-100 Gobo2 shaking slowto fast 101-110 Gobo3 shaking slowto fast 111-120 Gobo4 shaking slowto fast 121-130 Gobo5 shaking slowto fast 131-140 Gobo6 shaking slowto fast 141-150 Gobo7 shaking slowto fast 151-199 Continuous gobo wheel clockwise rotation at Linearly variable speed from fastto slow...
-
Page 12: Troubleshooting
CH21 Frost 000-127 Empty position 125-255 Frost move linearly into the light beam CH22 Zoom 000-255 Zoom linearly moves from narrow to wide beam CH23 Focus 000-255 Focus move linearly into the light beam CH24 Focus Fine 000-255 Fine Focus positioning CH25 Strobe 000-003... -
Page 13: Maintenance And Cleaning
2. The motor’s drive IC on the PCB might be out of condition. D. The lamp is cutting out intermittently 1. The lamp is not working well. Check the mains voltage either too high or too low. 2. Internal temperature may be too high. Check if replacement of fan is needed on the head. E. - Page 14 unit’s optics. Clean with soft cloth and use normal glass to clean liquid. Always dry the parts carefully. Clean the external optics at least every 20 days. Clean the internal optics at least every 30/60 days. 12/12...
