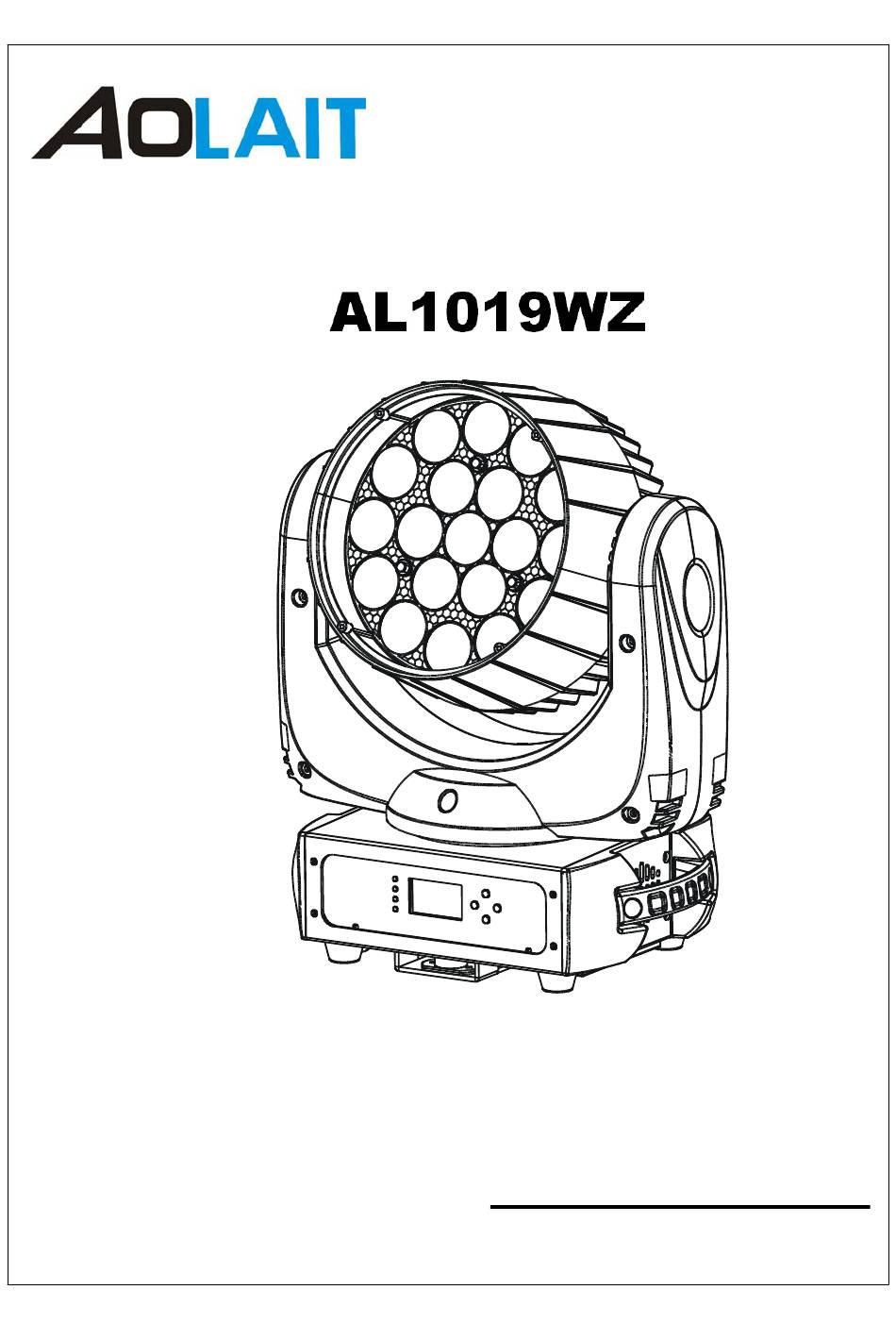

- Page 1 19*12W MOVING HEAD BEAM User Manual Professional Entertainment Technology...
-
Page 2: Safety Instructions
Safety Instructions Please read carefully the instruction, which includes important information about the installation, usage and maintenance. WARNING Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. Unpack and check carefully there is no transportation damage before using the unit. -
Page 3: Technical Specifications
Warning: To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture. DO NOT open the unit within five minutes after switching off. The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly damaged. - Page 4 Voltage: AC 100V~240V, 50/60Hz Power consumption: 260W LED: 19 X 12W RGBW LED 324.8X188X395.4mm Dimension: 9.2Kgs Weight: Beam Angel: 6 °~50° Control panel Display: To show the various menus and the selected functions LED: POWER ON Power On NULL No function NULL No function DMX input present...
- Page 5 DMX input: For DMX512 link, use 3-pin XLR cable to link the unit together. DMX output: For DMX512 link, use 3-pin XLR cable to link the unit together. Mains input: Connect to power supply. Mains output: Connect to supply power to the next unit. Fuse(T 6.3A): Protect the unit from damage of the over-current.
- Page 6 To access display Menu via the internal battery, press the UP& DOWN buttons simultaneously. Display will automatically switch off after about 10 seconds from last button press. LCD DISPLAY MENU Address DMX Address 1 =001 .=Alone Inside Program .=Master Auto Play .=Alone Music Control .=Master...
-
Page 7: Lcd Display Menu
LCD DISPLAY MENU Program 01 Edit Use Program 8 V1.0 Version Function Mode DMX address setting With this function, you can adjust the desired DMX-address via the Control Board. Select via the encoder. Press the encoder, adjust the DMX address by turning the encoder. Press the encoder to confirm. - Page 8 Auto Play With this function, you can run the Inside program. Music control,Slave control and Mic Sensitivity. [Inside program]With this function,you can run the internal program. [Music control]With this function, you can run sound-controlled. [Slave control]With this function, you can define the device as slave. Reset With this function, you can reset the device via the Control Board.You can select the different reset function by turning the encoder.
- Page 9 Temp. Info. Head Temp With this function you can display the temperature on the display board of the base (near CMY-filter)in Celsius. No DMX Status With this function, when the drive is not DMX signal, the display will be flashing. Lamp adjustment With this function, you can adjust the lamp more easily.
- Page 10 041 - 050 051 - 060 061 - 070 071 - 080 081 - 090 091 - 100 101 - 110 111 - 120 R+G+B 121 - 130 R+G+W 131 - 140 G+B+W 141 - 150 R+G+B+W 151 - 255 Jump from slow to fast 000 - 010 MacroColorLine (Disable)
-
Page 11: Control By Universal Dmx Controller
Control By Universal DMX Controller DMX 512 Connection At last unit, the DMX cable has to be terminated with a terminator. Solder a 120 ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit. - Page 12 5. The end of the DMX 512 system should be terminated to reduce signal errors. 6. 3 pin XLR: Pin 1: GND, Pin 2: Negative signal (-), Pin 3: Positive signal (+) Address Setting If you use a universal DMX controller to control the units, you have to set DMX address from 1 to 512 so that the units can receive DMX signal.
