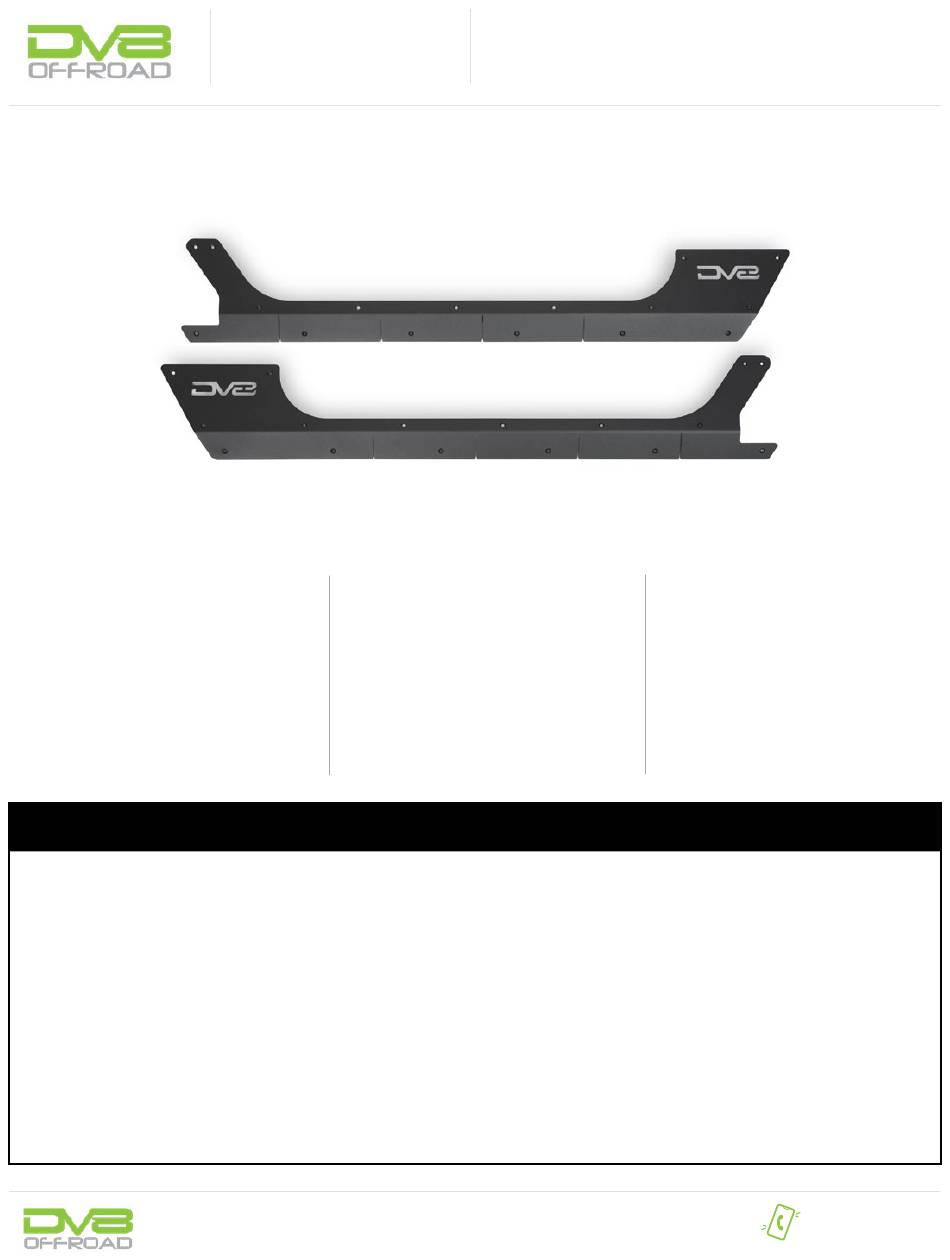

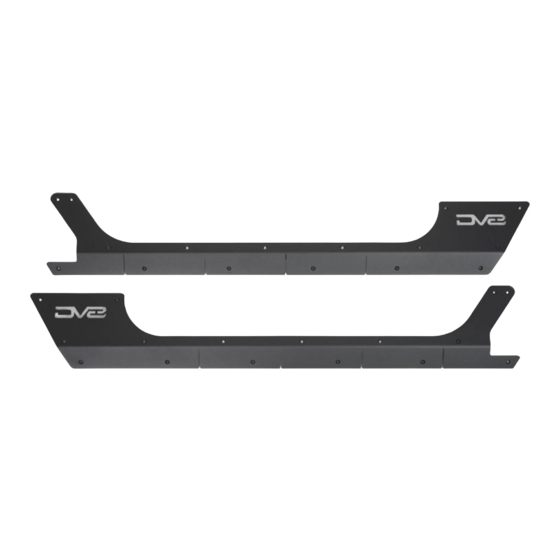

2-DR ROCK SKINS
18+ JEEP JL WRANGLER (2-DOOR)
SRJL-29
TOOLS
REQUIRED
- #3 Allen Bit
- Center Punch Tool
- 9/32" Drill Bit
- Sharpie
- 10, 12mm wrench (If you do not have a
nutsert tool)
-HD Double Sided Tape (Optional)
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Intermediate
- 2 persons
Intermediate skill level required,
additional help is required for
removal and installation of sliders/
skins.
Read and understand all
PRODUCT
INSTALLATION
TIME
- 3.5 Hrs
Time to install this should take
three and a half hours.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Related Manuals for DVB SRJL-29
Summary of Contents for DVB SRJL-29
- Page 1 6400 SYCAMORE CANYON BLVD. PRODUCT INSTALLATION MANUAL RIVERSIDE, CALIFORNIA 92507 855-680-9595 WWW.DV8OFFROAD.COM 2-DR ROCK SKINS 18+ JEEP JL WRANGLER (2-DOOR) SRJL-29 TOOLS REQUIRED SKILL LEVEL TIME REQUIRED - #3 Allen Bit - Intermediate - 3.5 Hrs - Center Punch Tool...
- Page 2 INSTALLATION MANUAL STEP 1 | If you have factory steps or sliders, they will need to be removed prior to install. Use a 10mm socket to remove the factory nuts securing the slider to the body/pinch weld. Then, while a friend supports the slider, remove the remaining factory hardware using a 13mm socket.
- Page 3 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the product. HARDWARE INCLUDED (36) M5x12 Nutserts (32) M5x16 Allen (1) Nutsert Tool STEP 2 |...
- Page 4 INSTALLATION MANUAL STEP 3 | When satisfied with the fitment, firmly hold the rock skin in place and use a sharpie to mark six to seven mounting holes strategically along the skin. Mark holes below and above the bend at the rear, middle, and front of the rock skin (Do not use the holes that have “x”s over them).
- Page 5 INSTALLATION MANUAL STEP 4 | Remove the rock skins and use a punch tool gently mark the mounting holes for drilling. Be sure to mark the center of the marked area. STEP 5 | Drill out the marked mounting holes using a small drill bit, working your way up to a 9/32”...
- Page 6 INSTALLATION MANUAL STEP 7 | Install the rock skins on the vehicle and secure to the mounting points using the provided M5 hardware with a #3 allen bit. STEP 8 | With the rock skins installed and the hardware secure, use a punch tool to mark the remaining mounting holes for drilling.
- Page 7 INSTALLATION MANUAL STEP 9 | Carefully drill out the remaining mounting holes using a small drill bit, working up to a 9/32” bit. STEP 10 | Install the provided nutserts into the remaining mounting holes using a nutsert tool (or the provided nutsert tool, if you do not have one).
- Page 8 INSTALLATION MANUAL STEP 11 | Double check all hardware is secure. Repeat steps for opposite side. STEP 12 | Congrats! You are finished with the install of the 18+ Jeep JL Wrangler 2-DR Rock Skins. NEED HELP? 855-680-9595...
- Page 9 INSTALLATION MANUAL STEP 13 | To use the nutsert tool, slider the M6 washer and spacer onto the provided M6x50 bolt with the washer going on the bolt first. Then install a nutsert onto the exposed threads by hand. STEP 14 | Slide the nutsert tool with the nutsert into the mounting hole.
