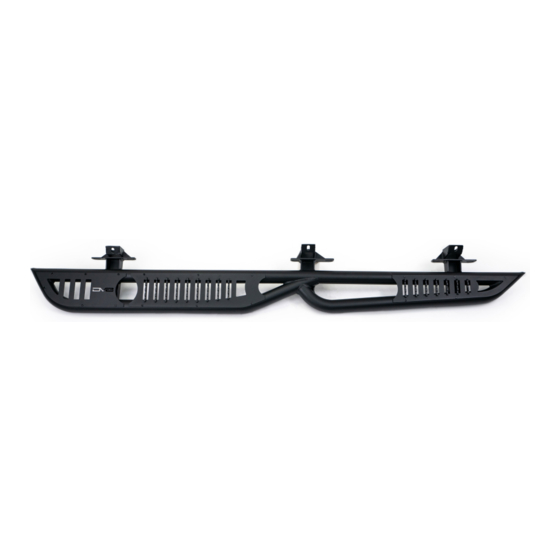

Tubular Steps
2021+ Bronco
SRBR-02
TOOLS
REQUIRED
- 13,16mm Socket
- 13mm Wrench
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 2 people
Some skill level required.
Additional help will be needed for
this install
Read and understand all
PRODUCT
INSTALLATION
TIME
- 1 Hour
Time to install this should only
take about an hour
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
MANUAL
REQUIRED
855-680-9595
NEED HELP?
Advertisement
Table of Contents
Related Manuals for DVB SRBR-02
Summary of Contents for DVB SRBR-02
- Page 1 6400 SYCAMORE CANYON BLVD. PRODUCT INSTALLATION MANUAL RIVERSIDE, CALIFORNIA 92507 855-680-9595 WWW.DV8OFFROAD.COM Tubular Steps 2021+ Bronco SRBR-02 TOOLS REQUIRED SKILL LEVEL TIME REQUIRED - 13,16mm Socket - Novice/Intermediate - 1 Hour - 13mm Wrench - 2 people Time to install this should only Some skill level required.
- Page 2 INSTALLATION MANUAL STEP Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Hardware Included: (6) M10x30mm Bolts (24) M8 Flat Washers (6) M10 Flat Washers (12) M8x35 Bolts (12) M8 Nuts (12) M8 Split Washers...
- Page 3 INSTALLATION MANUAL STEP With the slider loosely mounted to the vehicle, loosely install the provided M8 bolts into the pinch welds. STEP Lift the slider into place where it is even with the ground and tighten the pinch weld both using a 13mm socket and wrench.
- Page 4 INSTALLATION MANUAL STEP Tighten the underside bolts using a 16mm socket until step is secure. STEP Double check all hardware is secure. 855-680-9595 NEED HELP?
